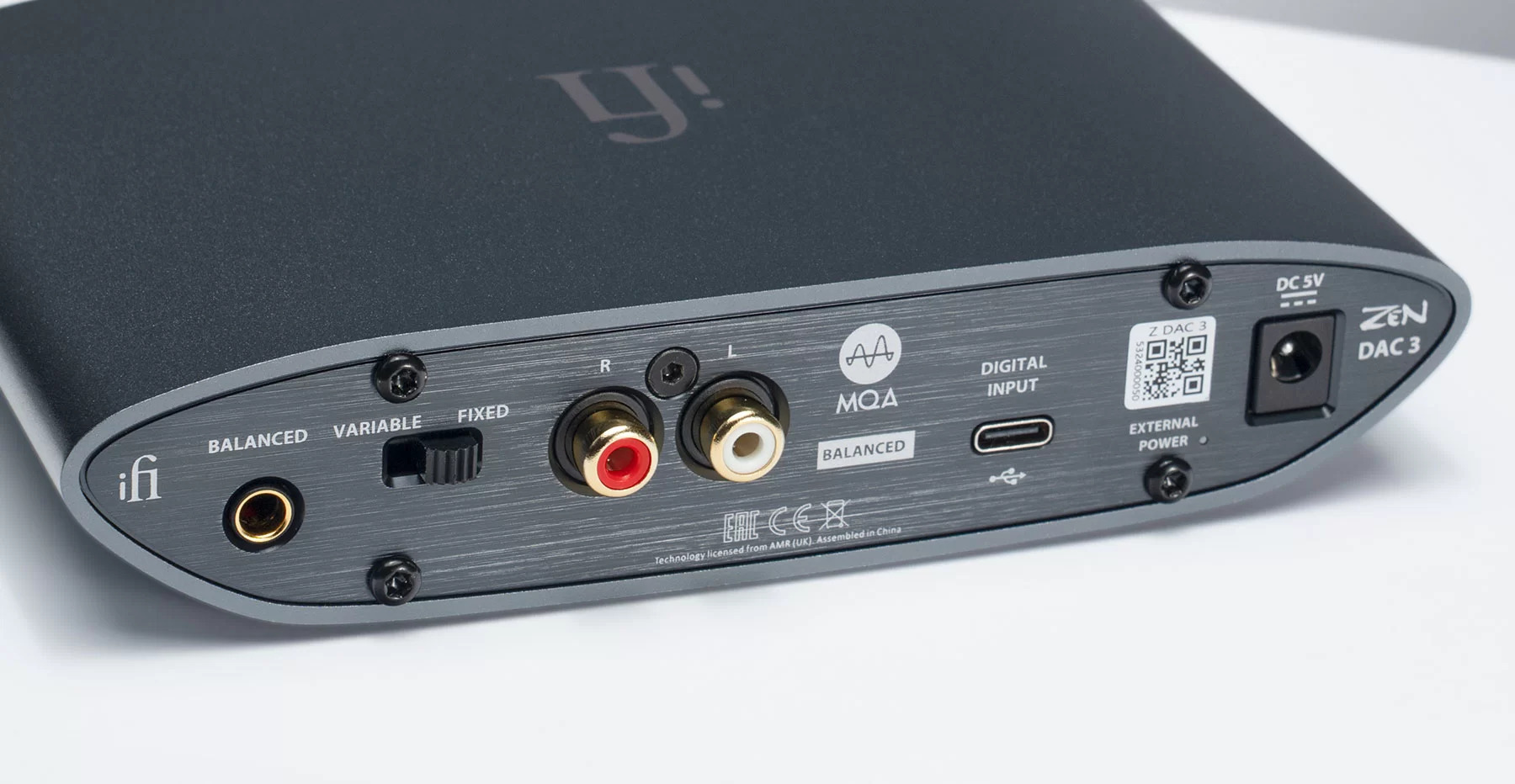

| Input |
USB Type-C |
| Formats |
PCM (768/705.6/384/352.8/192/176.4/96/88.2/48/44.1kHz)
DSD (512/256/128/64)
DXD (768/705.6/384/352.8kHz)
MQA (Decoder) |
| DAC |
Bit-Perfect DSD & DXD DAC by Burr Brown |
| Line Output Section |
|
| Output Power |
|
| Balanced 4.4mm |
2V / 6.2V max. (variable); 4.2V fixed |
| Single-Ended RCA |
1V / 3.3V max. (variable); 2.1V fixed |
| Output Impedance |
Balanced 4.4mm ?200Ω; Single-Ended RCA ?100Ω |
| SNR |
≥ 113dBA @ 0dBFS |
| DNR |
≥ 113dBA @ 0dBFS |
| THD+N |
Balanced 4.4mm <0.0015% @ 0dBFS; Single-Ended RCA <0.003% @ 0dBFS |

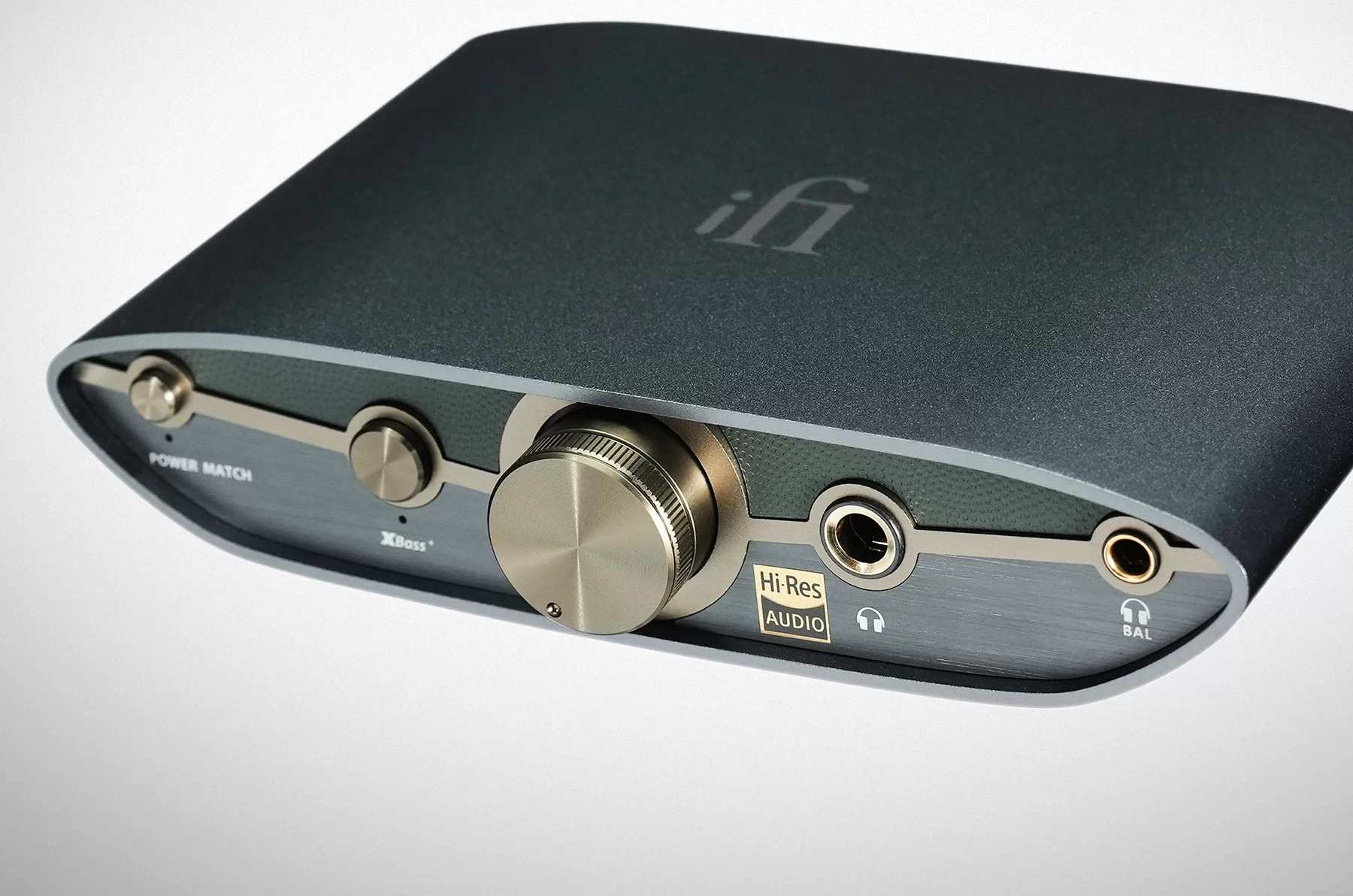

| Headphone Output Section |
|
| Max.^ Output Power |
|
| Balanced 4.4mm |
>70mW @ 600Ω; >300mW @ 32Ω |
| Single-Ended 6.35mm |
>18mW @ 600Ω; >210mW @ 32Ω |
| RMS Output Power |
|
| Balanced 4.4mm |
>390mW @ 64Ω |
| Single-Ended 6.35mm |
>210mW @ 32Ω |
| Output impedance |
≤1Ω |
| SNR |
≥ 109dBA @ 0dBFS (6.2V 4.4mm / 3.3V 6.35mm) |
| DNR |
≥ 109dBA @ 0dBFS (6.2V 4.4mm / 3.3V 6.35mm) |
| THD+N |
Balanced 4.4mm <0.005% (2V @ 600 Ω); Single-Ended 6.35mm <0.013% (1.27V @ 32Ω) |
| General |
|
| Frequency Response |
5Hz ? 90kHz (±3dB) |
| Power supply requirement |
USB-C or DC 5V/0.5A (centre +ve) |
| Power consumption |
No Signal ~0.5W; Max Signal ~2.5W |
| Dimensions |
158 x 115 x 35mm (6.2? x 4.6? x 1.4?) |
| Net weight |
456g (1.0 lbs) |
