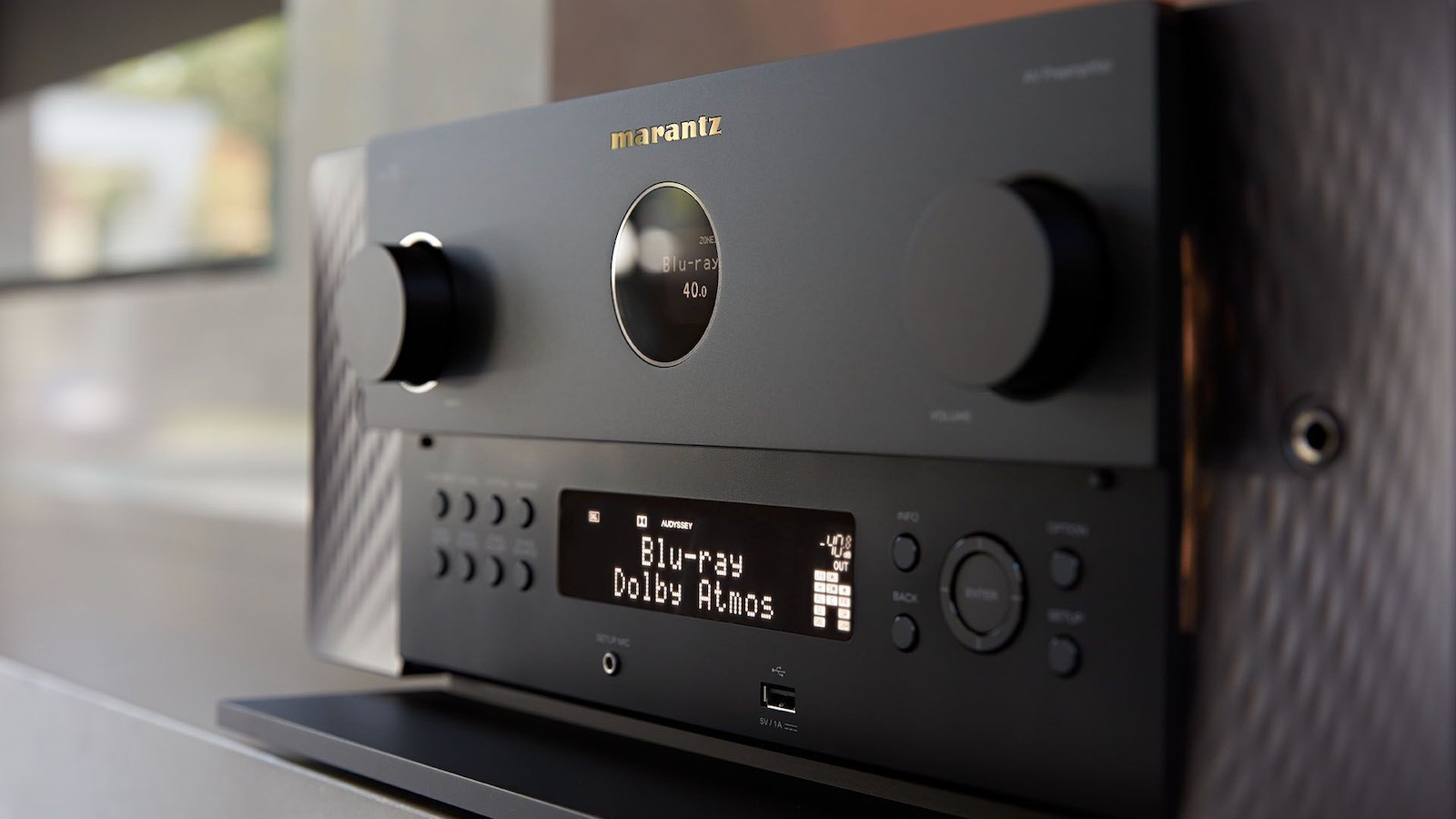

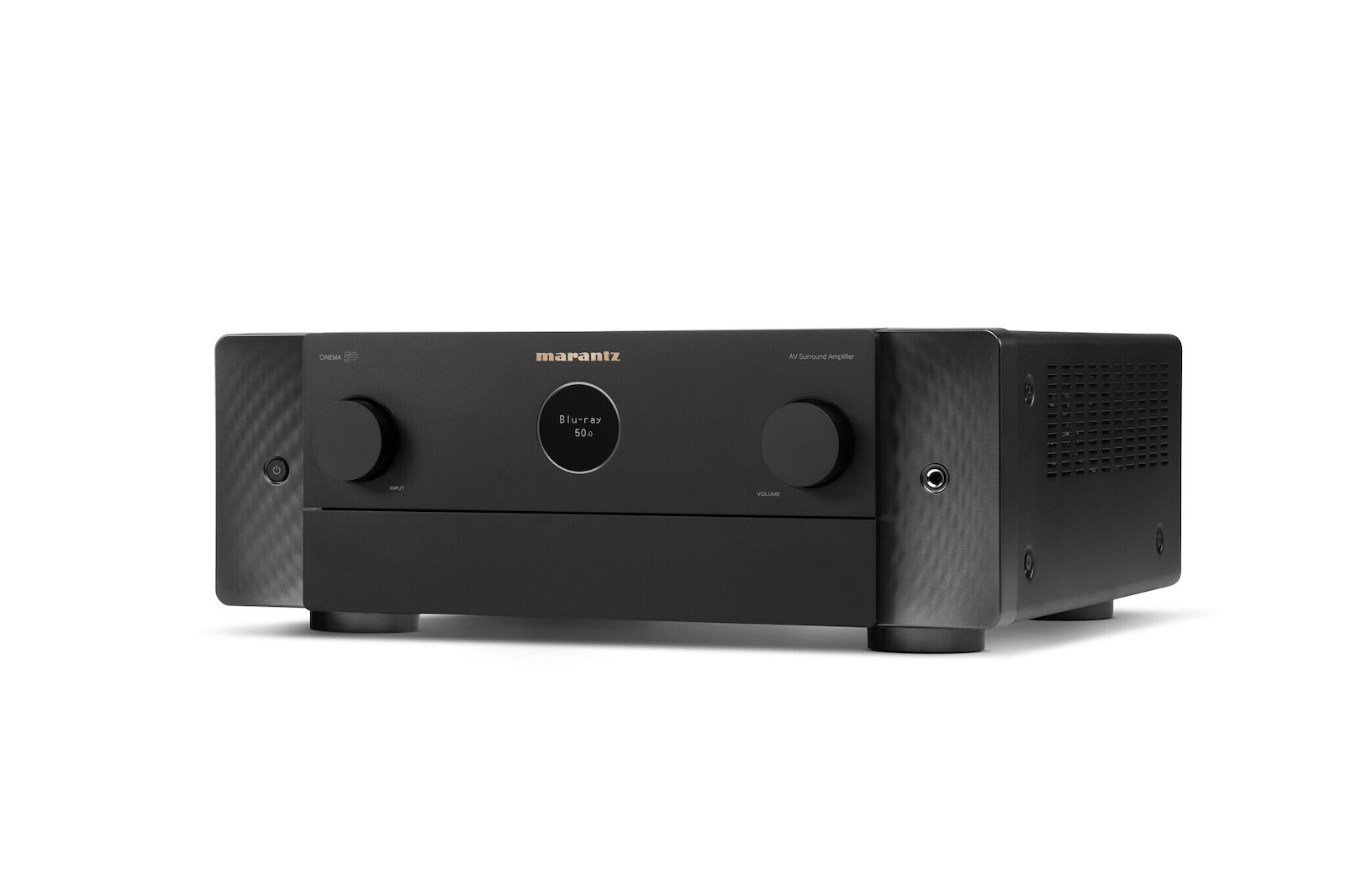

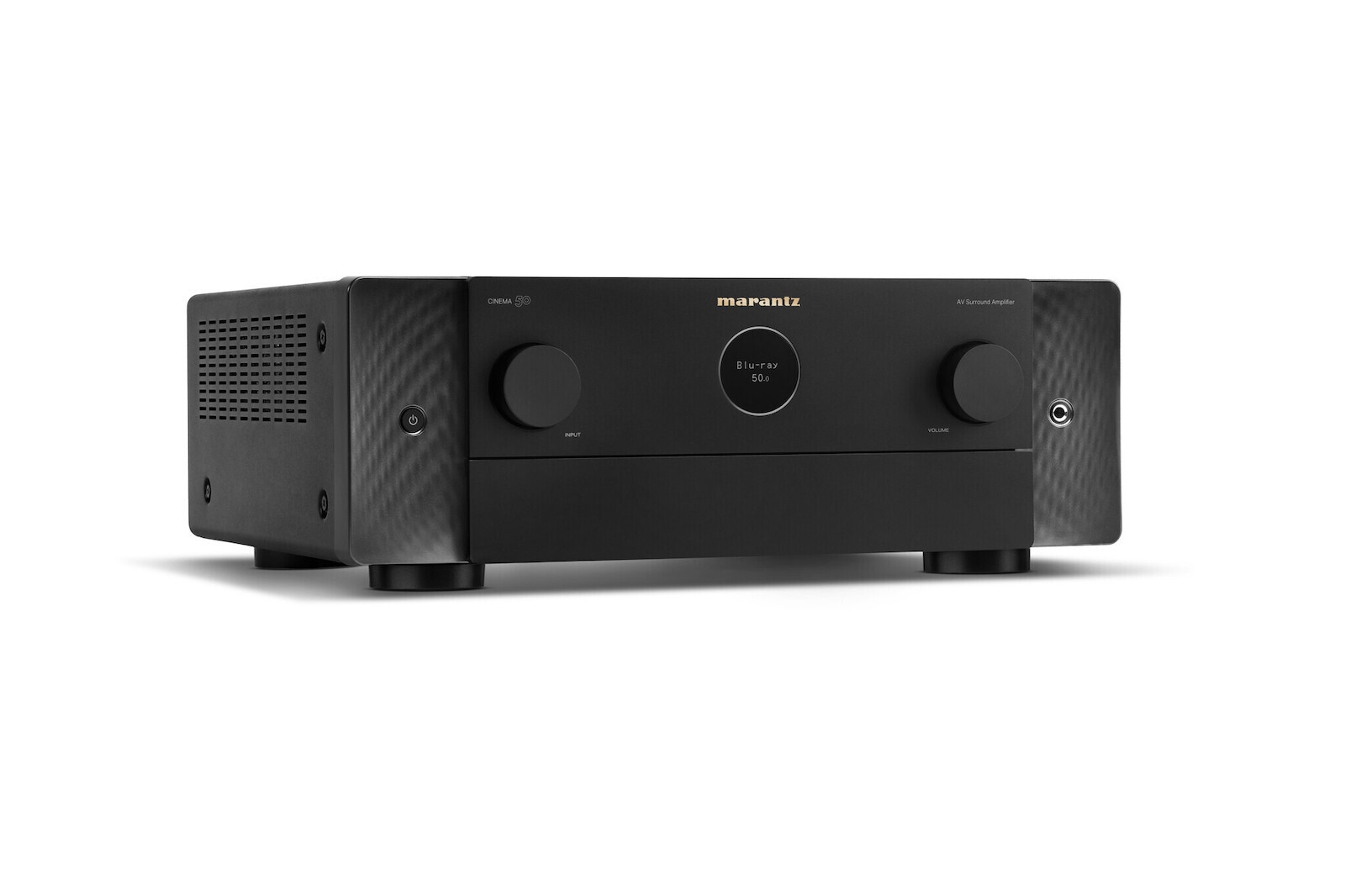

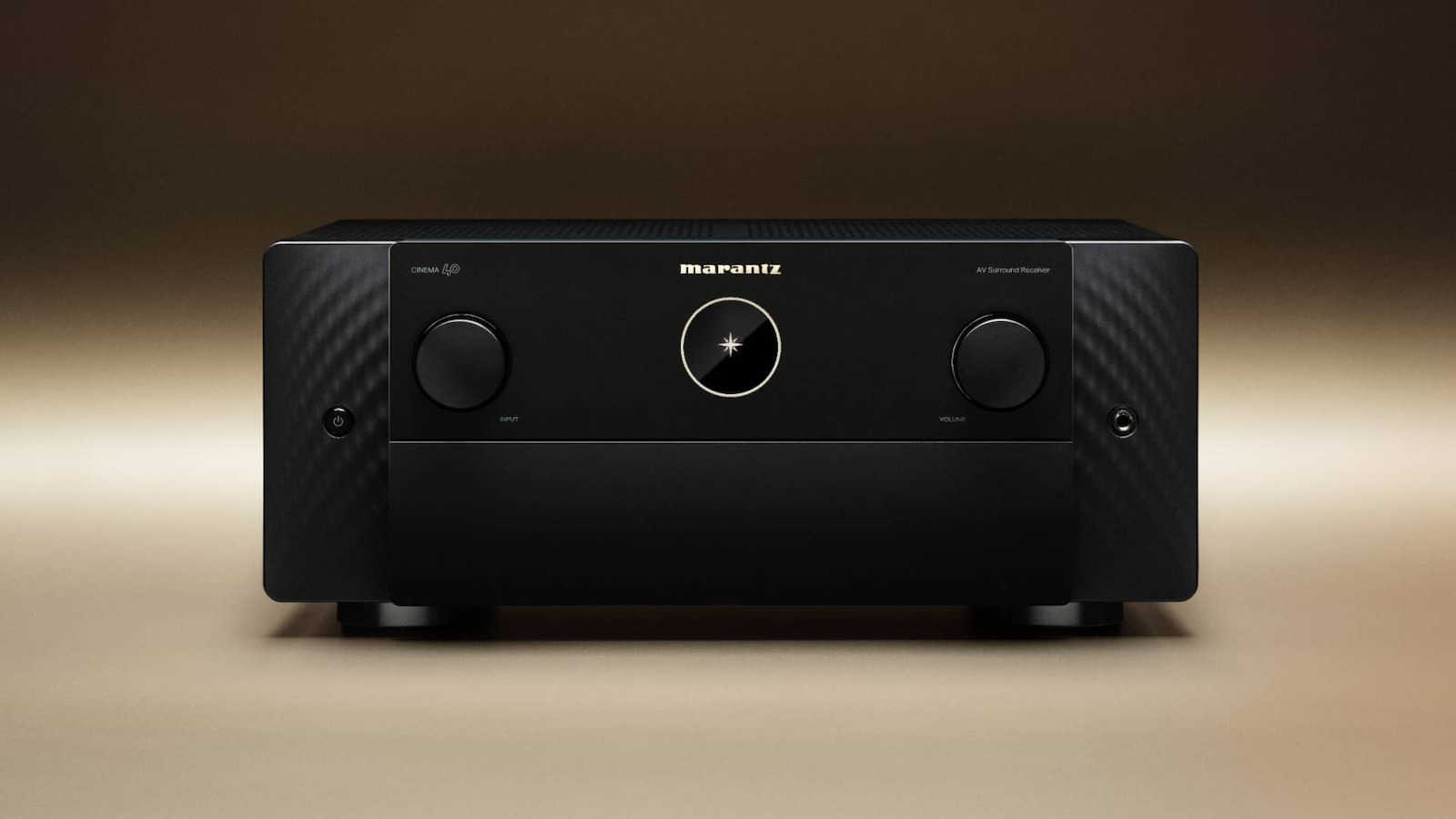

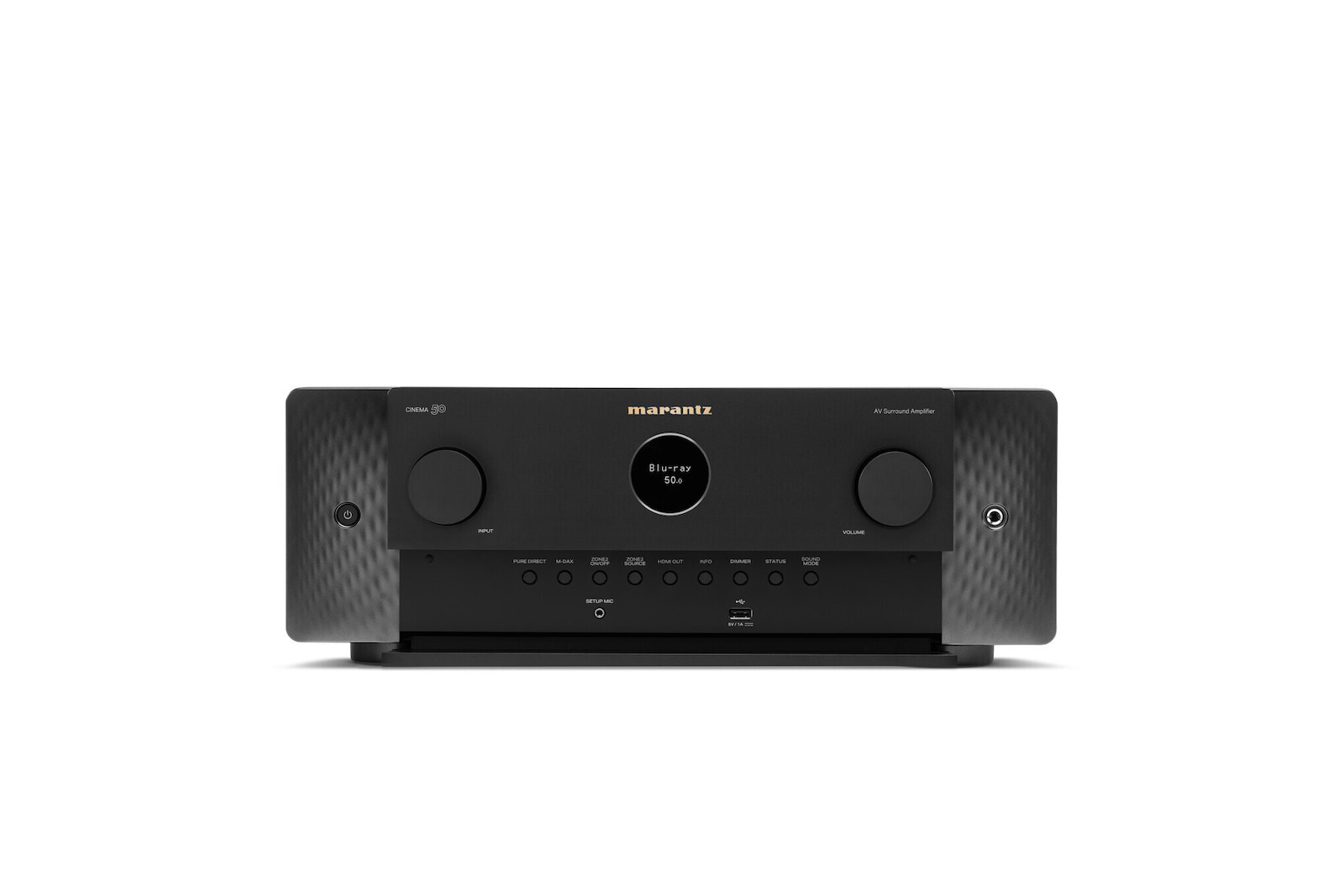

Premium 9.4 channel 110-watt-per-channel amplification, Dolby Atmos, DTS:X, IMAX Enhanced and Auro 3D, 8K Ultra HD, and HEOS® Built-in streaming. CINEMA 50 is a powerful AV receiver for very high- performance home theaters.
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.
Peerless Performance
Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound.
Technology Leader
CINEMA 50 abounds with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.
Exquisite Design
A modern expression of timeless design principles, CINEMA 50 features the iconic Marantz porthole, symmetrical design, and front panel controls elegantly hidden from view.
Customizability
Thoughtfully selected connectivity options, flexible speaker arrangements, and fine-tuning ability allow you to make CINEMA 50 your own.
Effortless
Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.
Χαρακτηριστικά
Power Amplifier
- Number of Powered Channels 9
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 110 W
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) -
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 150 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 220 W
- 70% Guarantee Yes
- Discrete Power Amplifier Yes
- Amplifier Topology Class A/B
- Current Feedback Topology Yes
- Bi-Amp Drive assignable
Multichannel Surround Technologies
- DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
- Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
- Other IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Multichannel Stereo
- Max Number of Processing (Preamp) Channels 11.4
Inputs/Outputs
- Composite In / Out 0/0
- Component In / Out 0/0
- HDMI In / Out 6 / 3
- Multi-Room Video Out via HDMI No / Yes
- Analog In / Fixed Level Out 6 in / 0 out
- Phono (MM) In Yes
- Digital In: Optical / Coaxial 2 / 2
- Multi-Room Out: analog / digital 1 /0
- Multichannel Preamp Out 11.4
- Subwoofer Out 4 (independent)
- 7.1 multichannel input Yes
- Number of Speaker Terminals 11
- Speaker A / B assignable
- Multi-Room Speaker Terminal assignable
- Front Inputs USB-A
- USB Audio Yes / No / No
- FM Tuner with RDS No
- DAB+ Tuner No
HDMI
- Total HDMI Inputs / No. Support 8K 6 / 6
- HDCP2.3 support Yes
- HDMI Outputs: Main / Zone 2 / 1
- Analog to HDMI Video Conversion No
- HDMI Upscaling 1080P/4K to 8K
- Max resolution @ framerate
- Audio Return Channel eARC
- Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
- ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
- Variable Refresh Rate / Quick Frame Transport Yes / Yes / No
- HDMI Pass-Through in Standby Mode Yes
- CEC Yes
- DSD Audio over HDMI Yes
- Auto LipSync Yes
Performance Technologies
- Copper Plated Chassis No
- Toroidal Power Supply Transformer No
- Hyper Dynamic Amplifier Modules (HDAM) (List version) Yes
- Pure Direct Mode Yes
- Gold Plated RCA Terminals Yes
- Clock Jitter Reducer Yes
Acoustic / Room Correction
- Audyssey MultEQ XT32
- Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
- Audyssey LFC Yes / Yes
- Dirac Live Support Yes
- Variable Cross Over Yes
- Optimized Bass Redirection Yes
- Bass Sync Yes
Music File Support
- Lossy Formats MP3 / WMA / AAC
- Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
- DSD Audio 2.8 MHz / 5.6MHz
- Gapless Playback FLAC, WAV ,ALAC ,DSD
- Compressed Audio Enhancer: MDAX2 Yes
- Network Audio Sharing Yes
Streaming Services
- HEOS Multi-room and Streaming Yes
- AirPlay Audio Streaming AirPlay 2
- Internet Radio TuneIn
- Spotify* Spotify Connect
- Pandora Yes
- SiriusXM Yes
- Other Streaming Services * Amazon Music HD/
- Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
- Roon tested Yes
Network Connectivity
- Ethernet Ports Yes
- Wi-Fi (include version / band) Yes
- Bluetooth (Include version) Yes
- Bluetooth Re-transmit for Bluetooth headphones Yes
Smart Home Integration And Control
- Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
- App for Smart Phones & Tablets (iOS & Android) Marantz AVR App
- HEOS Multi-Room Integrated Yes
- HEOS Link Compatibility: IR/ IP Yes / Yes
- Multi-Room zones 2
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
- Zone Audio Output: Speaker / Preout Yes / Yes
- Zone HDMI Output from HDMI Source Yes
- Control Connectivity IP Control / RS232 Control / Web Control / App Control
- IR Flasher In Yes
- Marantz Remote Bus Yes
- DC Trigger Output 1
- HDMI Diagnostics Yes
Others
- Front Display port hole OLED
- Primary Display Size (diagonal in/mm)
- Secondary Display Size (diagonal in/mm)
- GUI Languages 9
- Setup Assistant Yes
- Smart Select on Remote Yes
- Firmware Update by Network / USB Yes / Yes
- ECO Mode Yes
- Auto Power off Yes
- Sleep Timer Yes
General
- Available Colors Black/Silver-Gold
- Metal Front Panel Yes
- System Remote Control RC-049SR
- Power Consumption in W 680
- Power Consumption No-Sound (ECO on/off) in W 60 W / 100 W
- Standby Consumption in W 0.2
- CEC Standby Consumption in W 0.5
- Network Standby Consumption in W Less than 2.0
- Maximum Dimensions
- Antenna:Horizontal:(W x D x H) in mm
- Antenna:Vertical :(W x D x H) in mm
- W/o Antenna:(W x D x H) in mm442 x 404 x 165, (442 x 404 x 235),【442 x 392 x 165 】
- Weight in kg 13.5
- What's in the box Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord
