AUDIO

• THD + N (20 Hz – 20 kHz)
• <0.03% 20-20 kHz -1dBFS output
• Signal-to-Noise ratio
• -94dB (ref 2V)
• Frequency response
• 20-20 kHz +/-0.3dB; 50 kHz -3dB
• Native sampling rate
• Up to 192 kHz
• Bit depth
• 16-24
• Supported audio file format
• LPCM, MP3, AC3, Ogg Vorbis, HE-AAC, MQA & WMA decode capability
• Supported 3rd party service provider
• Spotify Connect, Tidal Connect, Apple AirPlay 2, Google Chromecast, DLNA, Roon
• DAC
• TI PCM5142
• Processor
• ARM® Cortex™ -A53, Quad-Core, 1.5GHz per core

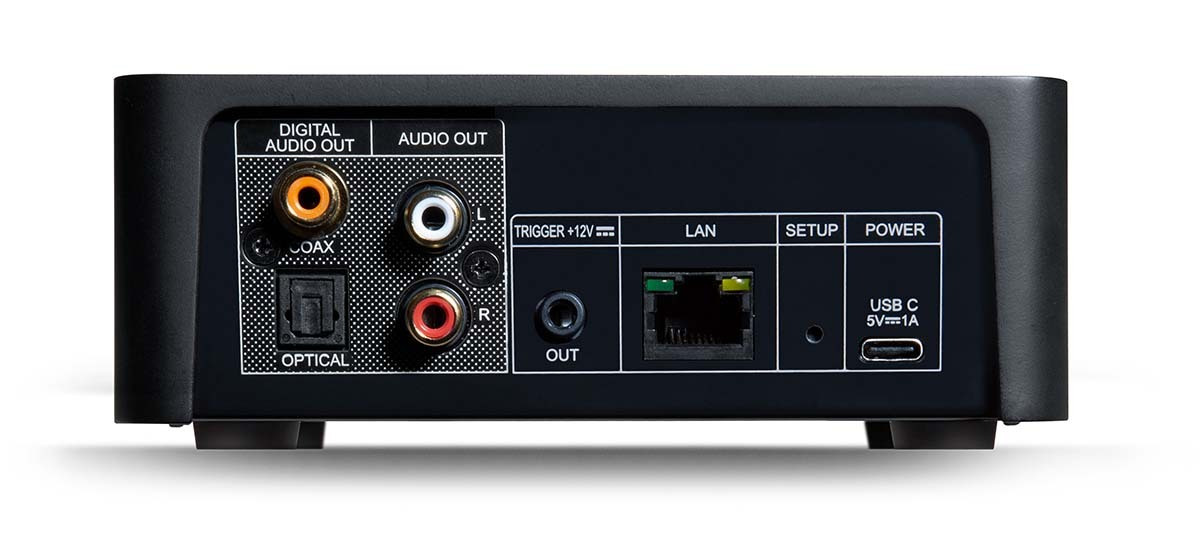

CONNECTIONS

• Power
• AC adapter

  Input: 100-240V AC 0.3A

  Output: 5V DC 1A
• Network connectivity
• Ethernet RJ45 100 Mbps

  Wi-Fi 5 (802.11ac 2.4GHz/5 GHz)

  DLNA/UPnp*
• Bluetooth
• Bluetooth 5.2

  BT Profiles: A2DP 1.2, AVRCP 1.3, SPP, HFP, HSP, HOGP
• NFC
• NFC for easy Bluetooth connection
• 12V Trigger Out
• 3.5mm Mini-jack x 1
• Analog Out
• RCA x 1
• Coaxial Out
• RCA 75 ohms
• Optical Out
• TOSLINK x 1
• USB IN
• USB C for AC adapter

* Certification in progress as of publishing date

GENERAL

• Status Indicator
• Front Panel LED
• Function Button
• Front Panel Function Button
• Power Consumption
• 0.5W Network Standby
• Finish
• Black

DIMENSION AND WEIGHT

• Gross dimensions (W x H x D)**
• 140 x 140 x 55 mm (5 1/2 x 5 1/2 x 2 1/16 inches)
• Net Weight
• 1.5 kgs / 3.3 lbs
• Shipping Weight
• 1.7 kgs / 3.8 lbs

** Gross dimension includes feet and other extended front and rear panel terminals.
