Frequency Range (+/-3 dB) [Hz] |
33 - 200 |
Maximum SPL [dB] |
109 |
Crossover Frequency [Hz] |
40 - 120 |

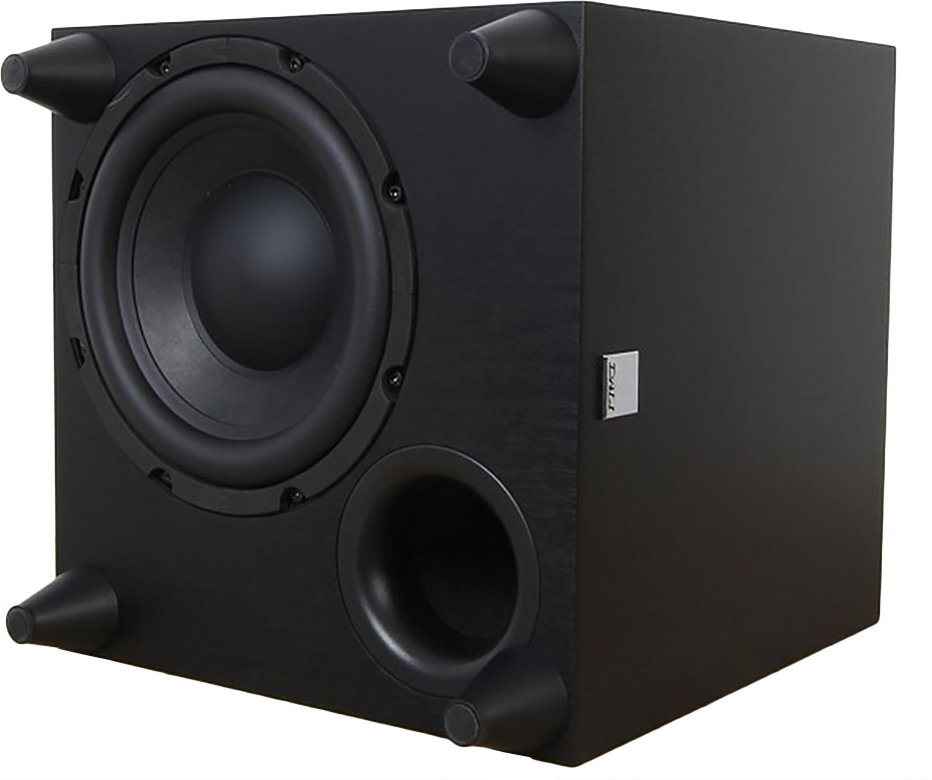

Low frequency driver, Quantity |
1 x 8" long stroke |
Low frequency driver, Diaphragm type |
Paper Fibre Cone |
Enclosure type |
Bass Reflex |
Bass Reflex Tuning Frequency [Hz] |
49.0 |
Max. Amplifier Power Output [RMS watt] |
220 |
Continous IEC Power Output [RMS watt] |
170 |
Input Impedance [ohms] |
25k |
Connection Input |
Mono (LFE)
RCA
Stereo (low-pass filtered) |
Magnetic Shielding |
No |
Recommended Placement |
Floor |
Recommended Distance From Wall [cm] |
10 - 30 |

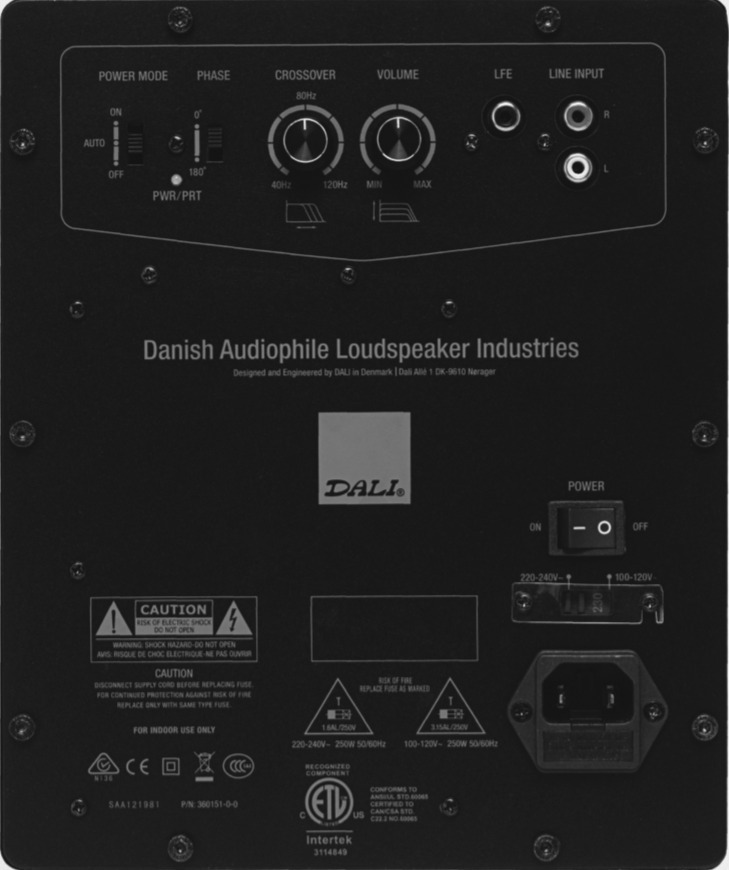

Functions |
Crossover Frequency
Phase Switch
Standby (Auto Power) On/Off Switch
Volume (Gain) |
Max. Power Consumption [W] |
250 |
Standby Power Consumption [W] |
0.4 |
Idle Power Consumption[W] |
10.4 |
Dimensions With Base (HxWxD) [mm] |
335 x 295 x 310 |
Weight [kg] |
10.4 |
Accessories Included |
Manual |
