Sensor Type |
1/2.8"-Type CMOS Sensor |
Sensor Resolution |
Effective: 8.51 Megapixel |
Built-In ND Filter |
None |
Focus Control |
Autofocus |
Manual Focus |
Exposure Control
|
|
Shutter Type |
Electronic Rolling Shutter |
Shutter Speed |
1/20000 to 1/25 Second |
Signal-to-Noise Ratio |
50 dB |
Minimum Illumination |
0.5 Lux |
White Balance |
Presets: Auto, Manual, One Push |
Lens
|
|
Optical Zoom Ratio |
12x |
Max Digital Zoom |
15x |
Field of View |
Horizontal: 70.9 to 6.5° |
Maximum Aperture |
f/1.6 to 2.8 |
Video Capture
|
|
External Recording Modes |
HDMI |
3840 x 2160 at 25/30.00 fps |
1920 x 1080p at 25/29.97/30.00 fps |
SDI/BNC |
1920 x 1080p at 25/29.97/30.00 fps |
USB |
3840 x 1920 at 5/10/15/20/25/30.00 fps |
1920 x 1080p at 5/10/15/20/25/30.00 fps |
1600 x 896 at 5/10/15/20/25/30.00 fps |
1280 x 720 at 5/10/15/20/25/30.00 fps |
1024 x 576 at 5/10/15/20/25/30.00 fps |
960 x 540 at 5/10/15/20/25/30.00 fps |
800 x 600 at 5/10/15/20/25/30.00 fps |
800 x 448 at 5/10/15/20/25/30.00 fps |
720 x 576 at 5/10/15/20/25/30.00 fps |
720 x 480 at 5/10/15/20/25/30.00 fps |
640 x 480 at 5/10/15/20/25/30.00 fps |
640 x 360 at 5/10/15/20/25/30.00 fps |
480 x 270p at 5/10/15/20/25/30.00 fps |
352 x 288 at 5/10/15/20/25/30.00 fps |
320 x 240 at 5/10/15/20/25/30.00 fps |
Audio Recording |
AAC Audio |
G.711 Audio |
Broadcast Output |
NTSC/PAL |
Control
|
|
Presets |
255 via IP |
10 via IR |
Move Speed |
Pan: 0.1 to 60°/sec |
Tilt: 0.1 to 30°/sec |

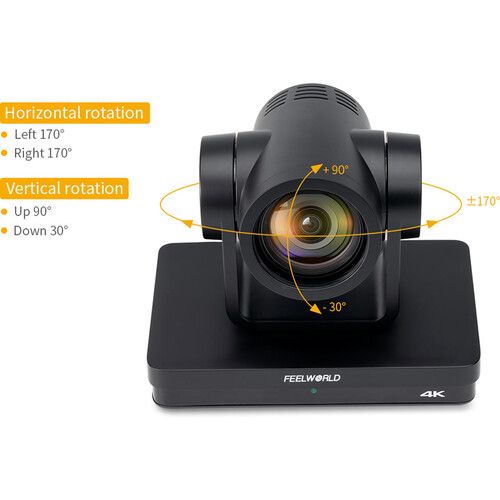

Movement Range |
Pan: 340° (-170 to 170°) |
Tilt: 120° (-30 to 90°) |
Supported Control Protocols |
Pelco-D |
Pelco-P |
RS-232 |
RS-422 |
RS-485 |
VISCA |
Interface
|
|
Video I/O |
1 x BNC (3G-SDI) Output |
1 x HDMI Output |
1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
1 x RJ45 Output |
Audio I/O |
1 x 1/8" / 3.5 mm TRS Stereo Line Input |
Other I/O |
1 x Mini-DIN 8-Pin (RS-232) Control Input |
1 x Mini-DIN 8-Pin (RS-232) Control Output |
1 x Block (RS-422, RS-485) Control Input |
Power
|
|
PoE Support |
PoE 802.3af |
Power I/O |
1 x Barrel (12VDC at 1 A) Input |
Power Consumption |
Device: 12 W |
Environmental
|
|
Operating Temperature |
14 to 122°F / -10 to 50°C |
Storage Temperature |
14 to 158°F / -10 to 70°C |
Operating Humidity |
20 to 80% |
Storage Humidity |
20 to 95% |
General
|
|
Dimensions (W x H x D) |
181 x 115 x 149 mm |
Weight |
1.2 kg |
