Sample rates: |
PCM up to 768kHz
DSD up to 49.152MHz (DSD 1024)
DXD and double-speed DXD (2xDXD) |

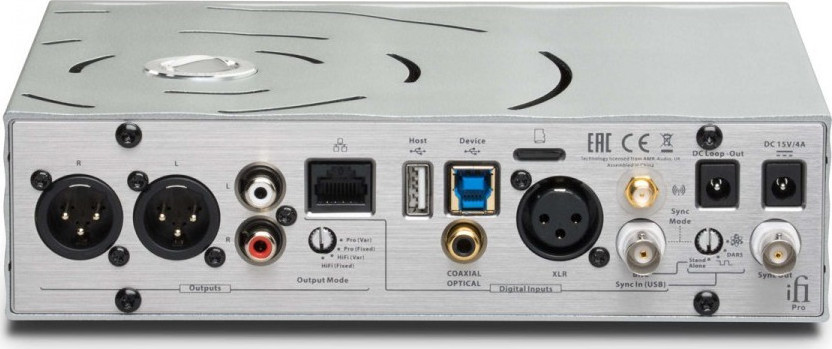

Inputs: |
USB (required for DSD, DXD and sample rates above 192KHz)
AES3 (XLR – single link)
S/PDIF (coaxial/optical combo)
BNC multifunction (S/PDIF in or sync input) |
Outputs: |
Balanced XLR at 4.6V (+15.5dBu – HiFi) or 10V (+22dBu – Pro)
Single-Ended RCA at 2.3V (HiFi) or 5V (Pro)
Headphones 6.3mm & SE 3.5mm Jack at 0.55V/2.1V/5V
Headphones BAL 2.5mm/4.4mm Jack at 1.13V/4.6V/10V
Headphones out 1,500mW RMS X 2 @ 64 ohm, 4,000mW max. 2 X @ 16 Ohm |
Headphone Output Impedance: |
Single-Ended (S-BAL): < 1 Ω
Balanced: < 2 Ω |
Volume control: |
Balanced (6-gang) Alps potentiometer, motorised with IR remote control
XLR/RCA outputs can be selected as fixed level or adjusted
6.3mm headphone jack is always adjusted |
Other Functions: |
Various digital and analogue filters can be selected for DSD and PCM up to 384KHz |
PCM Filters: |
Bitperfect 44.1 – 192kHz, always used for 352.8 – 768kHz
Bitperfect + 44.1 – 96kHz
Gibbs Transient Optimised 44.1 – 384kHz
Apodising 44.1 – 384kHz
Transient Aligned 44.1 – 384kHz |
DSD filters: |
fixed 3rd order analogue filter @ 80kHz with correction for DSD’s -6dB gain |
Gain (headphone section): |
user-selectable: 0dB, 9dB and 18dB |
Dynamic range: |
119dBA (solid-state, PCM, -60dBFS) |
Output power |
Pro iDSD 4.4mm socket. (16 Ω, balanced/single-ended): >4200mW /1>1,575mW
Pro iDSD 2.5mm socket. (16 Ω, balanced/single-ended): >4000mW /1>1,500mW
|
Output voltage |
(600Ω, balanced/single-ended): >11.2V / >5.6V |
Input voltage (Pro iDSD): |
DC 9V/6.7A – 18V/3.35A |
Input voltage (iPower+): |
AC 85 – 265V, 50/60Hz |
Power consumption: |
< 22W idle, 50W max. |
Dimensions: |
213 (l) x 220 (w) x 63 (h) mm |
Weight: |
1980g |
