DIMENSION (H X W X D)

240 x 155 x 180 mm (9.5 x 6.1 x 7.1in.)



WEIGHT

3.6kg (7.9lbs)

3.5kg (7.7lbs)

WI-FI NETWORK STANDARD & FREQUENCY BAND

Dual-band 2.4GHz/5GHz

IEEE 802.11a/b/g/n

DRIVER UNITS

Uni-Q driver array:

HF: 19mm (0.75in.) aluminium dome

LF/MF: 115mm (4.5in.) magnesium/aluminium alloy cone

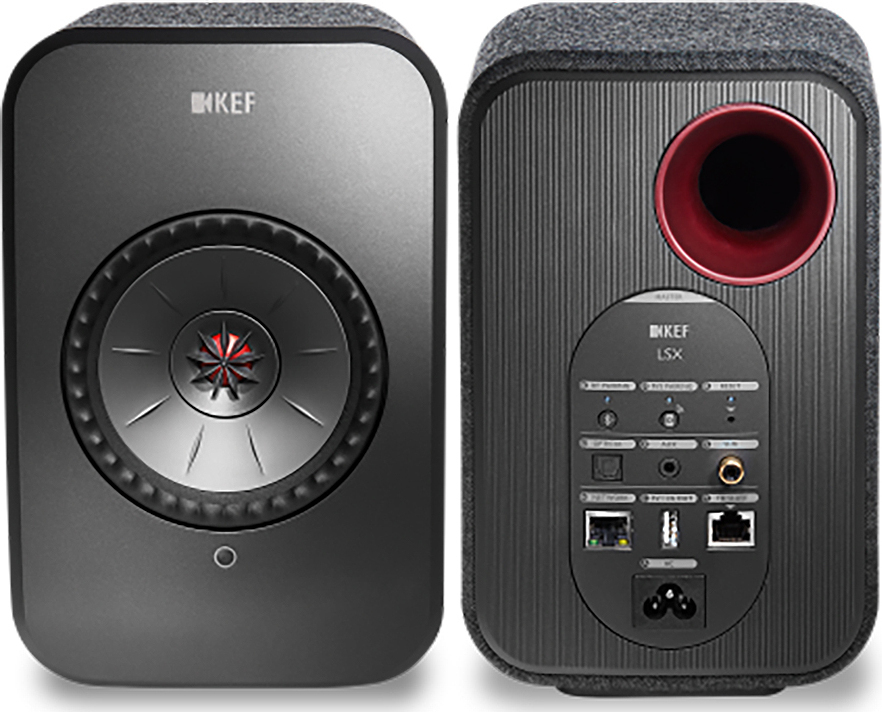

INPUTS

2.4GHz/5GHz Dual-band Wi-Fi network

Bluetooth 4.2 with aptX® codec

TOSLINK Optical

3.5mm Auxiliary Input

RJ45 Ethernet (For network)

OUTPUT

Subwoofer Output

5V2A DC Output

AMPLIFIER OUTPUT POWER

LF: 70W     HF: 30W

BLUETOOTH RANGE & MEMORY

10m

8 devices

BLUETOOTH FREQUENCY

2.402GHz - 2.48GHz

BLUETOOTH POWER

2.5mW (Bluetooth Class 2 Device)

RESOLUTION

Support up to 192kHz/24bit

Depending on source resolution

MASTER AND SLAVE SPEAKER CONNECTION

Wireless: Propriety 2.4GHz

Wired: RJ45 Ethernet

Depending on connection settings

MAXIMUM OUTPUT(SPL)

102dB



POWER INPUT

100 – 240VAC 50/60Hz

WIRELESS CONNECTIVITY

TIDAL

FREQUENCY RANGE

Frequency Range (-6dB)

Measured at 85dB/1m

49Hz - 47kHz (More bass extension)

52Hz - 47kHz (Standard)

55Hz - 47kHz (Less bass extension)

Depending on speaker settings

FREQUENCY RESPONSE

Frequency Response (±3dB)

Measured at 85dB/1m

54Hz - 28kHz (More bass extension)

59Hz - 28kHz (Standard)

69Hz - 28kHz (Less bass extension)

Depending on speaker settings

THIRD PARTY SUPPORT

Mounting inserts for supporting wall mount

Supports 3rd party remote programme

Supports IP Control

INPUTS

2.4GHz/5GHz Dual-band Wi-Fi network

Bluetooth 4.0 with aptX® codec

USB Type B

TOSLINK Optical

RCA Analog Line Level Input

10/100 Mbps RJ45 Ethernet (For network and service)
