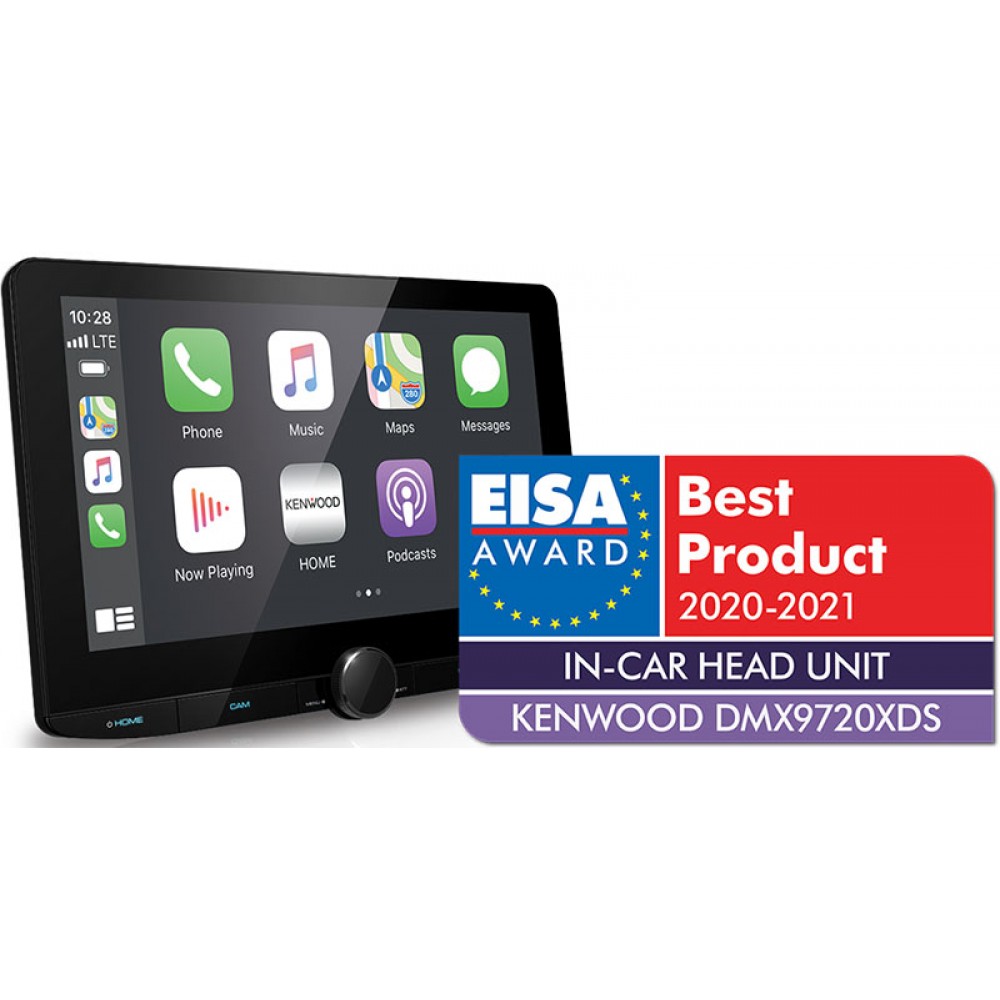

020-2021 EISA AWARD WINNER IN-CAR HEAD UNIT A head unit that offers it all, KENWOOD‘s DMX9720XDS mixes user-friendly features with a high-quality design and premium sound. Its 10.1in anti-reflection HD touchscreen has an intuitive, customizable interface that’s the gateway to its extensive talents, including wireless Apple CarPlay and Android Auto integration, dual smartphone connection, and support for up to four dashcams for a full-angle view. For sonic entertainment, meanwhile, it’s compatible with high-resolution audio files including FLAC and DSD, LDAC streams over Bluetooth 5.1, and delivers radio via DAB+. HDMI and USB inputs cater to HD video. Consider this the perfect driving companion for connected entertainment lovers. 7 inch versus 10.1 inch illustration Powerfull 10.1 inch HD Display The KENWOOD DMX9720XDS adopts a 10.1 inch HD display providing room for more information that is large and easy to comprehend with just a glance. WVGA versus HD display illustration High Definition Capacitive Touch Panel, Overwhelming Power of Expression. The DMX9720XDS features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles. OCA display illustration Vivid Colors with High Contrast Optical Clear Adhesive (OCA) is added between the touch screen and the LCD to eliminate the air layer and suppress light reflection and glare. This feature enhances the contrast and brightness and maintains the visibility of the display in various environments. Floating Panel Mechanism with 3-way Position Adjustment The robust floating mechanism generates less vibration even on a rough road. It can be installed regardless of the size of the cluster panel opening. In addition, it is possible to adjust the position of the display in the following 3 ways, so you can fit a large screen in more vehicles. Floating-screen_Mechanism tilt control Floating panel + Up-Down Mechanism control Floating screen Up/down Mechanism control Tilt Up / Down (fixed by screws) Forward / Backward (fixed by screws) All in One The Ultimate Wired & Wireless Smartphone Integration Apple Carplay home screen Android auto home screen Wireless mirroring for Android Wireless Apple CarPlay. Apple CarPlay via USB. Wireless Android Auto. Android Auto via USB. Wireless Mirroring for Android Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, listen to music and access messages with just a word or a touch. With iOS 12.0 and higher, 3rd party navigation apps like Google Maps™ are also supported. Wireless connection is available on compatible iPhones. Android Auto is a simple way to use your Android phone in the car. The KENWOOD receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, allowing you to enjoy features including Google Maps and more. Wireless connection is available on compatible Android Phones. Wireless Mirroring is a groundbreaking solution for seamlessly displaying and controlling your smartphone apps on the receivers’ large screen without cables or even a network connection. The feature is available on compatible Android phones. Some features, applications and services are not available in every region. For details, see: www.android.com/auto/ or www.apple.com/ios/feature-availability/#applecarplay-applecarplay Hi-Res Audio Wireless. High-resolution audio illustration High-Resolution Audio is high-quality sound that far exceeds CD standards and can play 192kHz / 24bit audio files. It captures and beautifully expresses details and nuances from the ultra-high to low frequencies. LDAC is an audio compression technology that enables High-Resolution Audio sources to be transmitted via Bluetooth. It is possible to transmit about 3 times the data amount compared to the conventional Bluetooth codec (SBC). High-Resolution Audio sources can be processed without down-converting them to lower frequencies and lower bit counts. With these features, unprecedented, high-quality audio is realized. 4 Camera Inputs. 4 camera inputs illustration DMX9720XDS features 4 camera inputs which allow for the utmost in convenience, flexibility and safety. You can connect a KENWOOD dash cam (DRV-N520 sold separately) (or a front camera), rear and blind view (left / right) cameras. Setting of camera type and display switching between 4 cameras can be operated easily via the receiver’s large screen. (AV input is assignable as 4th camera input). HD Rear / Front Camera Input Picture CMOS-740HD The optional CMOS-740HD camera can be connected to the rear or front camera inputs of the DMX9720XDS, displaying the image in true HD 1280 x 720 pixels on the large screen. This optional Front/Rear Camera Realizing High-Definition Imaging. The 180° horizontal wide-angle image is displayed on the DMX9720XDS in HD image quality. With this camera, you can park safely with an easy view of the rear. Thanks to HD-TVI technology, HD videos can be transmitted and displayed on the HD display of the DMX9720XDS using an analog RCA cable. Key Features 10.1\" HD Display with Capacitive Touch Screen Floating Panel Mechanism DAB+ Digital Radio & FM/AM Receiver Bluetooth Hands Free & Audio Streaming Compatible with Wireless High Res Audio (LDAC) Wireless & Wired Apple CarPlay® Ready Wireless & Wired Android Auto™ Ready Wireless Mirroring for Android Up to 4 camera inputs 3 RCA high power (5V) preouts (front/rear/sub) Compatible with High Res Audio + LDAC Digital Sound Processor, Time Alignment & 13-Band EQ General Features DIN Size 2 DIN Security Code Function ( user set) Yes, Set by user Smooth GUI Yes Selectable GUI Background Wallpaper Yes Key Illumination Variable color Installer Memory Yes Back-up Memory Yes Attenuator with Smooth Volume Return Yes Optional IR remote controller Yes, (KCA-RCDV331) Digital Clock (24H) Yes Built-in Bluetooth Yes DAB Tuner Built-in Yes Works with Apple CarPlay Yes Works with Android Auto Yes Wireless Mirroring Ready (Mirracast) Yes, for Android Firmware upgreadable Yes HDMI input for video playback Dashcam Link Yes Monitor Features Screen Type 7,0\" Wide VGA Display Mode 3 Mode (Full(default)/Auto/Normal) Screen Adjustments ► Noon & Night Memory. ► Brightness. ► Tint. ► Colour. ► Contrast. ► Black Level. ► Backlight. Dimmer function Manual/Sync Dimmer Level Sync / On / Off Visual Source Mode Mirorring / CarPlay / Android Auto. Touch Panel Capacitive Display Type Glare Display film Anti-Fingerprint / Anti-Reflection / Anti-Glare) Display Panel Capacitive Mechanism type Floating screen Tilt mechanism control -10° ~ +45° Forward/backward mechanism control 22mm (fixed by screws) Up/Down mechanism control 39mm (fixed by screws) LCD viewing angle control \"0\" (Default) / \"-1\" / \"-2\" / \"-3\" NTSC/PAL judge Yes (Auto) Multimedia GUI Features Menu text 22 languages: ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Russian ► Portuguese ► Chinese (Simplified) ► Chinese (Traditional) ► Thai ► Turkish ► Arabic ► Persian ► Hebrew ► Greek ► Malaysian ► Indonesian ► Polish ► Czech ► Hungarian Software updates (SoC) via USB Graphics Type Graphics Spectrum Analyzer Yes Demonstration Mode Yes Top Menu Customize Yes Opening Screen Type standard Background Customize Preset x6: ► Static x4. ► Colour Customize x1. ► Sync Album Art x1. ► USER x2. Wallpaper colour change Yes Picture in picture Yes Animation Yes Screen Capture Yes R-CAM interrupt Yes R-CAM Caution On Screen Display Yes R-CAM Parking Guide Lines Yes Front Camera Interruption Yes Front view camera mirror Yes DashCam Control Yes Rapid charge indicator Yes Network & Wifi features WiFi built-in Frequency Range Dual Band (2.4GHz / 5GHz) IEEE standard 802.11a/b/g/n/ac Wifi connection for Apple CarPlay Yes Wifi connection for Android Auto Yes Wifi connection for Android Mirroring Yes Tuner Features Station Select Manual / Preset (List) Tuner Type Lithio FM(RDS) + AM(MW/LW) Tuner Yes Tuner Presets (FM/AM) 20 Presets (15FM / 5AM) Preset memory w/o back-up power Yes Tuning mode Up/Down Seek/Scan Yes Automatic Memory Entry (AME) Yes FM Stereo / Mono Selector Yes Radio Data System Yes Radio Text Plus Yes Traffic Information Yes Local search Yes AF Regional Selectable: AF/AF Reg/OFF Auto TP search Yes Enhanced Other Networks Function (EON) Yes Program Type Function (PTY) Yes CE DAB tuner features DAB+ tuner built-in Yes Digital Radio Certification Mark Yes Intelligent seek Yes, (Service, Ensemble & Component) Ensemble seek Yes Tuning mode / Seek mode Auto1/Auto2/Manual Service preset 15 ch * 1 bank presets, Service list by alphabet order Yes Preset list Yes Alphabet Search Yes Related service Yes Traffic Information Yes DAB priority Yes DAB-DAB/DAB-FM auto switch Yes Seamless DAB-FM blending Yes DLS (Dynamic Label) Yes PTY (Programme Type) search Yes PTY (Programme Type) watch Yes Announcement Switching (ASW) Select Yes TMC (Traffic Message Channel) support Yes DMB Audio (Digital multimedia broadcasting) Yes Soft linking Yes Antenna power supply on/off switch Yes Bluetooth General Features Module Murata Hands Free Profile (HPF) V1.7 Hands Free Profile with High Sound Quality HFP V1.7 2 Phones Switchable Hands Free Yes 2 phones fulltime connection Yes Audio Streaming (A2DP) Yes, (SBC/AAC) High Quality Audio Streaming SBC/AAC LDAC - High Resolution Audio Streaming Yes Max num. of regist. units for A2DP 5 units Serial Port Profile (SPP) Yes Simple Secure Pairing (SSP) Yes Phonebook Access Profile (PBAP) Yes Audio/Video Remote Control Profile (AVRCP) Yes, V1.6 Multi Profile Support Yes iPhone & Android automatic pairing via USB Yes KENWOOD Remote App Ready KENWOOD Music Mix Support Yes Catchphone / Call Waiting Yes Private mode Yes Alphabet Search (Phonebook) Yes Noise Canceller Yes Echo Canceller Yes Phone device status display Yes Audio device status display Yes Signal strength display Yes Remaining battery display Yes High-quality noise canceling microphone Included (rear wired) CE_Playable Audio file AAC (*.m4a) files are playable USB AAC (*.aac) files are playable USB MP3 files are playable USB WMA (.wma) files are playable USB WAV (.wav) files are playable USB FLAC files are playable USB DSD high resolution audio format USB CE_Playable Video file MPEG1/2 files are playable USB MPEG4 files are playable USB WMV files are playable USB H.264 files are playable USB mkv files are playable USB JPEG files are playable USB BMP files are playable USB PNG files are playable USB USB Features USB terminal Yes, Rear USB 2.0 (Full Speed) USB Type 2.0 High speed Drive Change Yes Works with Android Auto Yes Works with Apple CarPlay Yes USB 1 wire Mirroring for Android Yes Tag Information Display Yes Album Art Display Yes Repeat/Scan/Random search Yes Repeat Play Folder/File/All Random play Folder Category search Yes Link Search Yes Resume play Yes Time code display Yes iPod Features Made for iPod & iPhone * Yes USB Direct Control (Audio, 1 wire, Lightning-connector) with optional cable KCA-iP103 Album art support Yes Music library search Yes Alphabet search Yes Skip search Yes iPod Accessory Protocol (iAP) iAP2 iTunes Radio App yes iAP2 Works with Apple CarPlay Wireless or Wired via USB Reverse browsing Yes Voice Control using Siri. Yes Bluetooth Auto Paring for iPhone Yes Battery charge + power control Yes * Always update to latest Apple firmware Audio features Max. Output Power (MOSFET Power IC) 4 x 50W Pre-out 3RCA: Front/Rear/Subwoofer Pre-out Output Level 5V Volume Offset Yes 2 Zone Control Yes Balance/Fader Control Yes, (via DSP) Loudness Control Yes, By DSP Bass Boost Yes, (Via DSP) Att.(-20dB) with smooth Volume Return Yes Digital Sound Processor (DSP) Yes Beep On/Off Yes Multimedia DSP Features Car type control Off / Compact / Sedan / Wagon / Minivan / SUV / Passenger Van Speaker Size & Location Control Yes X\'over network 3-Way / 2-way X\'over / HPF / LPF Listening postion control / Time Alignment Yes Equalizer type Graphical Equalizer 13-Bands Equalizer presets / User set 8 presets / 4 User set Zone Control 1 Zone / 2 Zone Balance & Fader Control Yes Source Volulme Offset source independent Sound Effects ► Bass Boost ► Supreme ► Loudness ► Realizer ► Drive Equalizer ► Stage EQ ► Space Enhancer Audio Setup Memory Yes Connectivity iPod direct control Yes USB interface Rear Side OEM Wired Remote Control ready Yes, Optional interface needed OEM Display Control ready Yes, Optional interface (KIM) needed Programmable OEM Steeringwheel Remote Function Yes Display input/output control Yes DC-Cord Mitsumi to ISO Parking sensor (handbrake) wire Yes Power Control (P.CON) wire Yes 2-way (Tel/Navi) mute wire Yes Dimmer control wire Yes Speedpuls input wire Yes AV-Input 1x mini-jack (selectable: AV-in / Camera-in) AV Output Video: RCA / Audio: mini-jack Available AV-Out source AV-in / Off Reverse sensor wire Yes Rear View Camera Input NTSC or HD-TVI input Front View Camera Input selectable: Front (NTSC or HD-TVI) or DashCam (NTSC) Front Camera / DashCam selectable Yes 3rd View Camera input Yes Dashcam Link Yes Amplifier pre-out 3 x RCA: Front/Rear/Subwoofer 3rd Party TV Control (Mini-Jack) Yes HDMI input Type A GPS Aerial Input HRS GT5-1S connector FM Antenna Input JASO connector DAB Aerial input SMB connector External microphone input 3,5mm mini-jack Tuner Specifications FM range: 87.5Mhz - 108MHz (50Khz step) Yes FM Usable Sensitivity 0.8μV/75ohm (S/N 30dBf) FM Quieting Sensitivity 1.6μV/75ohm (S/N 15.2dBf) FM Frequency Response 30Hz ~ 15kHz (± 3dB) FM Signal to noise ratio (Mono) 65dB FM Selectivity(DIN) over 80dB (±400kHz) FM Stereo Separation (1kHz) 45dB MW range: 531kHz - 1611kHz (9kHz step) Yes MW Usable Sensitivity 45μV LW range: 153kHz - 279kHz (9kHz step) Yes LW Usable Sensitivity 25μV DAB Tuner specifications Band III - Frequency range 174.928 MHz - 239.2MHz Mode I, II, III, IV Sensitivity - 100dBm Signal to noise ratio 90dB Audio format MPEG1 Audio Layer II, MPEG4 HE-AAC v2 DAB Aerial Connector Type SMB Output Voltage 14.4V (11V to 16V allowable) Maximum Current < 100 mA Bluetooth specifications Technology Bluetooth V5.0 Frequency 2.402 - 2.48 GHz Output power +4dBm(max), power class 2 Maximum range Line of sight approx. 10 meter Handsfree profile (HFP) Yes, V1.7 Serial port profile (SPP) Yes Advanced audio distribution profile (A2DP) Yes Audio Codec SBC/AAC Audio/Video remote control profile (AVRCP) Yes, V1.6 Phonebook access profile (PBAP) Yes Multi Profile Support Yes USB Specifications USB Version compatibility USB 2.0 High Speed File System FAT 16/32 / exFAT / NTFS Maximum Supply current 1500mA D/A Converter 24/32 bit Video Decoder MPEG1/MPEG2/MPEG4/WMV/H.264/MKV Audio Decoder MP3/WMA/AAC/WAV/FLAC/Vorbis S/N Ratio 98.5 dB (1kHz) Dynamic Range 89dB Audio Specifications Maximum Power 50W x 4 Output Power (DIN45324,+B=14.4v) 22W x 4 Output frequency band 20Hz ~ 88kHz Preout Level 5000mV / 1kOhm, Preout Impedance ≤ 300Ohm Speaker Impedance 4Ohm ~ 8Ohm DSP Specifications Frequency band 62.5/100/160/ ~ /6.3k/10k/16k Hz Equalizer Gain –9db ~ +9db Time Alignment 0 — 610cm(1 cm step) Speaker type - Center ► NONE ► 40mm X 70mm ► 5cm ► 10cm ► 13cm ► 16cm OVER Speaker type - Front ► O.E.M. ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4\" x 6\" ► 5\" x 7\" ► 6\" x 8\" ► 6\" x 9\" ► 7\" x 10\" Speaker type - Rear ► NONE ► O.E.M ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4\" x 6\" ► 5\" x 7\" ► 6\" x 8\" ► 6\" x 9\" ► 7\" x 10\" Speaker type - Sub woofer ► NONE ► 16cm ► 20cm ► 25cm ► 30cm ► 30cm over 2-Way X\'over / Front/Rear (HPF) / Frequency Through, 30/40/50/ ~ /220/250 Hz 2-Way X\'over / Front/Rear (HPF) / Slope -6/-12/-18/-24 (dB/oct) 2-Way X\'over / Subwoofer (LPF) / Frequency 30/40/50/ ~ /220/250 Hz, Through 2-Way X\'over / Subwoofer (LPF) / Slope -6/-12/-18/-24 (dB/oct) 3-Way X\'Over / High Pass Filter Frequency Through, 30/40/50/ ~ /220/250 Hz 3-Way X\'Over / High Pass Filter Slope -12/-18/-24 (dB) 3-Way X\'Over / Low Pass Filter Frequency 30/40/50/ ~ /220/250 Hz, Through 3-Way X\'Over / Low Pass Filter Slope -12/-18/-24 (dB/Oct Subwoofer Level -50dB ~ 10dB Car type control ► Off ► Compact ► Sedan ► Wagon ► Minivan ► SUV ► Passenger Van Video Specifications Color System of External Video Input NTSC/PAL External video input level (mini-jack) 1 Vpp / 75 Ohm External audio max. input level (mini-jack) 2 Vpp / 25 kOhm Video input level (RCA) 1 Vpp, 75 Ohms Video Output Level (RCA) 1 Vpp / 75 Ohm Audio Output Level (mini-jack) 0.9 Vpp / 10 kOhm HDMI - VGA input resolution 640x480p @59.94Hz/60Hz HDMI - 480p input resolution 720x480p @59.94Hz/60Hz HDMI - 720p input resolution 1280x720p @59.94Hz/60Hz HDMI - input Audio type 16/20/24-bit Linear PCM Monitor Specifications Screen size (Diagonal) 6.95 Inches Wide Screen Size (WxH) 156.6 x 81.6mm Display system Transparent TN LCD Panel Drive system TFT Active Matrix System Number of Pixels 1152000pixels (800(H) x 480(V) x RGB) Effective pixels 99.99% Pixel arrangement RGB Striped Back lighting LED (Light Emitting Diode) General Specifications Operating voltage 14.4V (11 ~ 16V Allowable) Dimensions (WxHxD) 178 x 100 x 155mm Weight 1700 gr. Accessories Bracket: 2 pieces cover: 2 pieces Escutcheon Yes DC cord (Mitsumi to ISO) 20 cm GPS antenna with 3.5 m cable GPS Antenna Ground Plane Mount (Adhesive Metal Pad) Yes Handsfree Microphone with 3 m cable Multi-Language Instruction Manual Included Quick-Guide + Instruction manual Manuals Downloadable Ye
