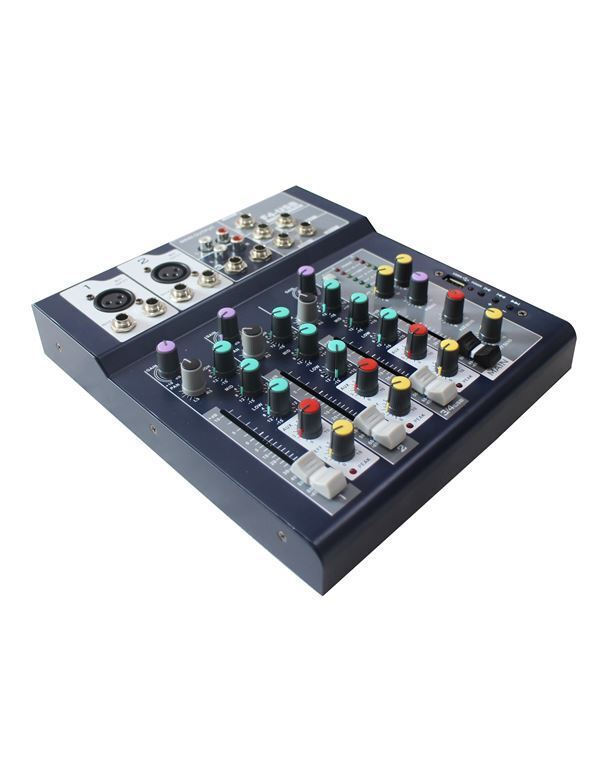

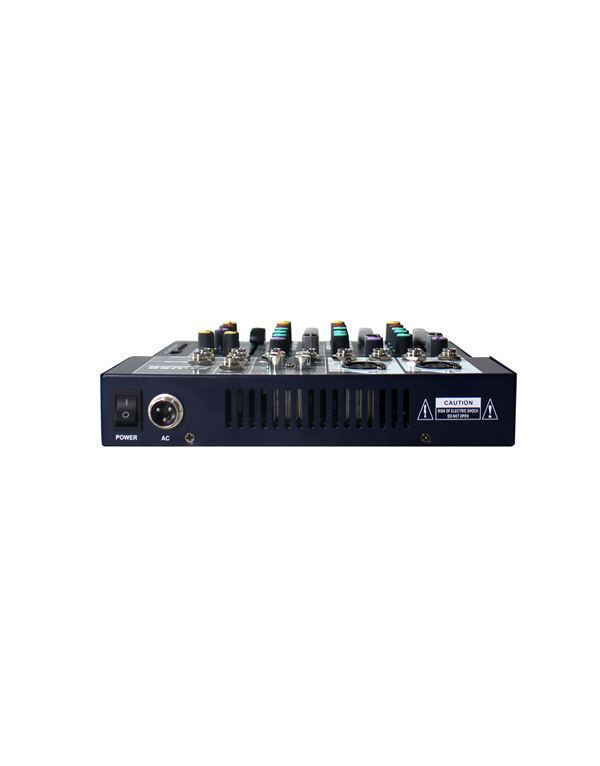

Κονσόλα μίξης ήχου 4 καναλιών

Χαρακτηριστικά:

• Maximum input level:  Microphone  + 24dBu

                                          Line + 24dB

• Maximum output level: +26 dBu

• Main level meter: LED 5 περιοχών

• Απόκριση συχνότητας: 20Hz -20Khz ± 0.5db

• Common mode rejection ratio (MIC 1Khz): >75dB

• Ολική αρμονική παραμόρφωση (THD + N): <0.01% (channel input to mix output)

• Crosstalk (1K Hz): >85dB

• Noise (22Hz – 22kHz): Equivalent input noise     -116dBu

                                         Remaining output noise  <-80 dBu

• Mono / Stereo Channel EQ: High Frequency, Broth, ± 15dB, 12K Hz

                                                  High frequency, peak and valley type, ± 15dB, 2.5K Hz

                                                                 Low frequency, broom type, ± 15dB, 80Hz

• Mono XLR: balanced, 2-pin hot end,  2K ohm, sensitivity -60 to +14 dBu

                     TRS balanced, tip hot 10Kohm, sensitivity -40 to +14 dBu

                     XLR Phantom Power + 48V

• Stereo TRS: non-balanced, tip hot 10Kohm, sensitivity -40 to +14 dBu

• Έξοδοι L/R, TRS: unbalanced, tip hot end, <75 ohm, -2dBu, max + 18dBu

• FX / AUX output TRS: unbalanced, tip hot side, <75 ohm, -2dBu, max + 18dBu

• Headphones TRS: tip L, ring R, recommended 30 to 600 ohm headphones

• Maximum power input power: 15W

• Διαστάσεις: 210 x 230 x 37 χιλ.



• Είσοδοι Mic: 1-2
• Μονάδα Effect: Όχι
• Δυνατότητα Rack Mount: Όχι
