General
System Remote ControlRC-1253 Pre-Programmed, Learnable, LCD DisplayNo, No, No Power Consumption in W500 Power Consumption No-Sound (ECO On / Off) in W35W/75W Standby Consumption in W0.1 CEC Standby Consumption in W0.5 Network Standby Consumption in WLess than 2.0 Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches17.1 x 13.4 x 6.6
( 17.1 x 13.4 x 9.3 )
【 17.1 x 13.0 x 6.6 】 Weight in LBS21.0 Weight in LBS (Packaging)25.4
Specifications
Number of Power Amps7 Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)90W Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)125W Power Output (6 ohm, 1 kHz, 10% 1ch Drive)185W

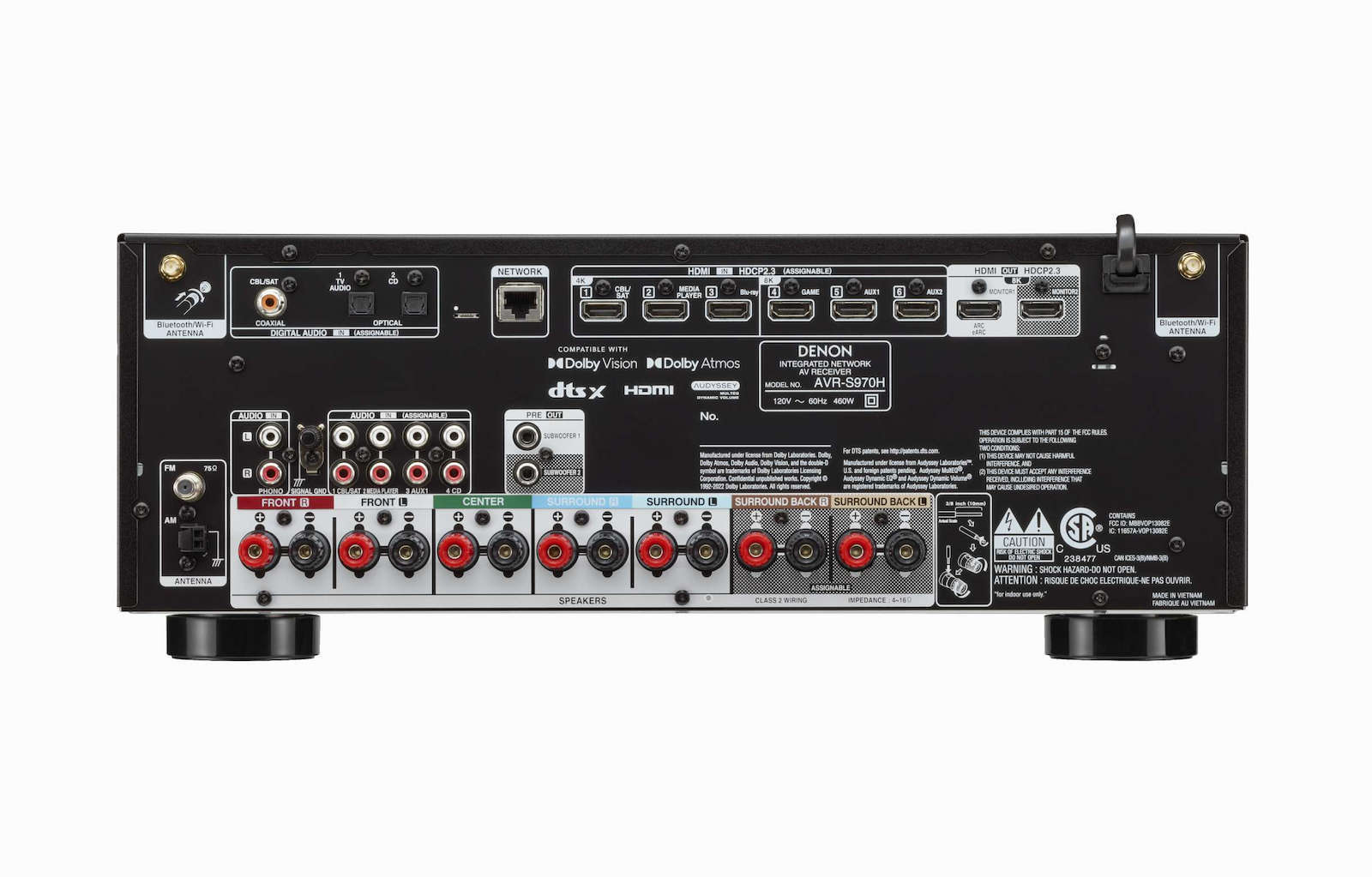

Inputs Outputs
HDMI In, Out6, 2 Multi-Room Video Out: Video, HDMINo, No Analog In, Out4, No Phono (MM) InYes Digital In: Optical, Coaxial2, 1 Multi-Room Out: Analog, DigitalNo, No Multichannel Pre-outYes (0.2) Subwoofer Out2 Speaker Terminal: Gold-Plated Screw, Regular ScrewNo, Yes Number of Speaker Terminals7 Multi-Room Speaker TerminalAssignable Front Inputs: Audio, Composite, Digital (Opt), HDMI, USBNo, No, No, No, Yes USB Audio, Made for iPod, Made for iPhoneYes, No, No AM/FM TunerYes
Others
Auto Speaker Setup by MicrophoneAudyssey MultEQ Front Display1-Line FLD GUI Languages3 Setup AssistentYes Quick Select Plus, Quick SelectYes, No Variable CrossoverYes Optimized Bass RedirectionYes ECO ModeYes Auto Power OffYes Sleep TimerYes
Multi-room CI
Multi-Room Zones2 Zone Audio Source: HDMI; Optical, Coax, Network, USB; AnalogYes (2ch), Yes (2ch), Yes, Yes Zone Audio Output: Speaker, Pre-OutYes, No IP Control, RS232 Control, Web Control, App ControlYes, No, Yes, Yes Remote In / OutNo, No HDMI DiagnosticsYes
HDMI
HDMI Inputs: Back, Front6, No HDCP2.3 supportYes HDMI Outputs: Main, Zone2 / No HDMI 2.1: 8K/60Hz AB, 4K/120Hz ABYes, Yes HDR, HLG, Dolby Vision, HDR10+, Dynamic HDRYes , Yes, Yes, Yes, Yes ALLM (Auto Low Latency Mode) Pass-through for gamingYes Variable Refresh Rate, Quick Frame Transport, Quick Media SwitchingYes, Yes, No 3D Signal Pass-throughYes 8K Signal Pass-Through, Scaling, GUI OverlayYes, Yes, Yes Audio Return Channel (ARC), Enhanced ARCYes, Yes Auto LipSyncYes
Network
Media ServerYes HEOS Wireless Multi-Room TechnologyYes Alexa / Google Voice Assistant / Apple HomePodYes, Yes, Yes Lossy Formats: MP3, WMA, AACYes, Yes, Yes Lossless Formats: FLAC, ALAC, WAVYes, Yes, Yes Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit)Yes, Yes, Yes DSD Audio StreamingYes (2.8/5.6MHz) AirPlay 2Yes TuneInYes Spotify ConnectYes PandoraYes SiriusXMYes Roon TestedYes HEOS App ControlYes Compatible with Remote APP for Smart PhonesDenon 2016 AVR Remote Ethernet PortsYes Wi-FiYes BluetoothYes
Sound Enhancements
Discrete Power AmplifierYes Pure DirectYes AudysseyMultEQ Audyssey Dynamic EQ, Dynamic VolumeYes, Yes Compressed Audio RestorerYes
