Stereo Mode, watts per channel
|
- 8Ω dynamic, both channels driven: 60 watts
- 4Ω dynamic, both channels driven: 60 watts
|
| Bridged Mode, watts per channel |
- 8Ω & 4Ω dynamic: 200 watts
- 70V & 100V: 250 watts
|
| Signal to Noise (A weighted, 20 Hz–20 kHz) |
>100 dB |
| Input Sensitivity |
1.23 Vrms (+4 dBu) |
| Maximum Voltage Gain |
25.0 dB |
| Frequency Response (20 Hz - 20 kHz) |
+0.1 dB, -0.1 dB |
| Maximum Input Level |
+12.3V (+24 dBu) |

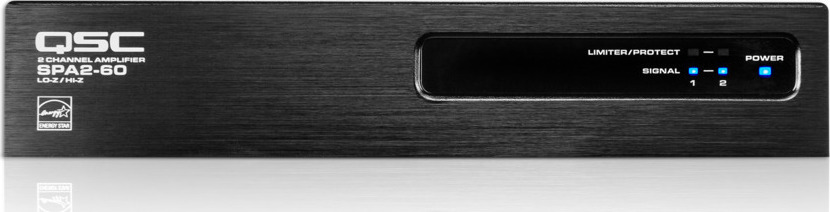

| Front Panel Indicators |
Power, per channel Signal, per channel Protect/Limit |
| Highpass Filter |
Switchable 80 Hz when Bridged in 70V & 100V |

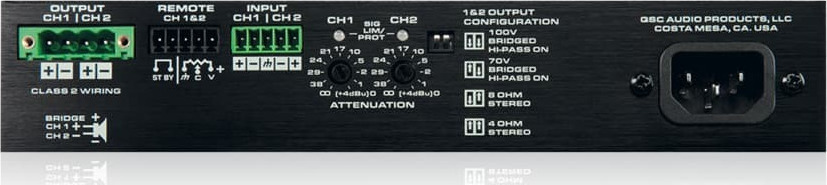

| Controls |
4Ω/8Ω/70V Bridge Highpass On/100V Bridged Highpass On per channel pair |
| Dimensions (HWD) |
43 x 220 x 241 mm (1RU) |
| Weight |
1,1 kg |
| Agency Approvals |
UL, CE, ENERGY STAR, RoHS/WEEE compliant, FCC Class B (Conducted and Radiated emissions), UL 2043 with PL-Kit |
