DHR15 |
DHR12M |
DHR10 |
| GΓενικά χαρακτηριστικά |
| Tύπος ηχείου |
2-way, Bi-amped Powered Speaker, Bass-reflex |
2-way, Bi-amped Powered Speaker, Bass-reflex |
2-way, Bi-amped Powered Speaker, Bass-reflex |
| ΄Eυρος συχνοτήτων (-10dB) |
44 Hz - 20 kHz |
55 Hz - 20 kHz |
52 Hz - 20 kHz |
| Περιοχή κάλυψης |
H90? x V60? |
H90? x V90? |
H90? x V60? (Rotatable) |
| Crossover |
1.8 kHz: FIR-X tuning™ (linear phase FIR filter) |
1.8 kHz: FIR-X tuning™ (linear phase FIR filter) |
1.9 kHz: FIR-X tuning™ (linear phase FIR filter) |
| Maximum Output Level (Measured peak, IEC noise@1m) |
131 dB SPL |
129 dB SPL |
128 dB SPL |
| Mονάδες |
LF |
Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite |
Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite |
Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite |
| HF |
Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite |
Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite |
Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite |
| Kλάση Eνισχυτή |
Class-D |
Class-D |
Class-D |
| Power rating |
Dynamic |
1,000 W (LF: 800 W, HF: 200 W) *1 |
1,000 W (LF: 800 W, HF: 200 W) *1 |
700 W (LF: 500 W, HF: 200 W) *1 |
| Continuous |
465 W (LF: 400 W, HF: 65 W) |
465 W (LF: 400 W, HF: 65 W) |
325 W (LF: 260 W, HF: 65 W) |
| Cooling |
Fan cooling, 4 speeds |
Fan cooling, 4 speeds |
Fan cooling, 4 speeds |
| Kατανάλωση |
74 W (1/8power), 18 W (Idle) |
74 W (1/8power), 18 W (Idle) |
60 W (1/8power), 18 W (Idle) |
| Aπαιτήσεις ισχύος |
100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz |
100 V, 100-120 V, 220-240 V, 110/127/220V (Brazil), 50/60 Hz |
100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz |
| A/D D/A Converters |
24 bit 48 kHz Sampling |
24 bit 48 kHz Sampling |
24 bit 48 kHz Sampling |
| Eπεξεργαστές |
HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF |
HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF |
HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF |

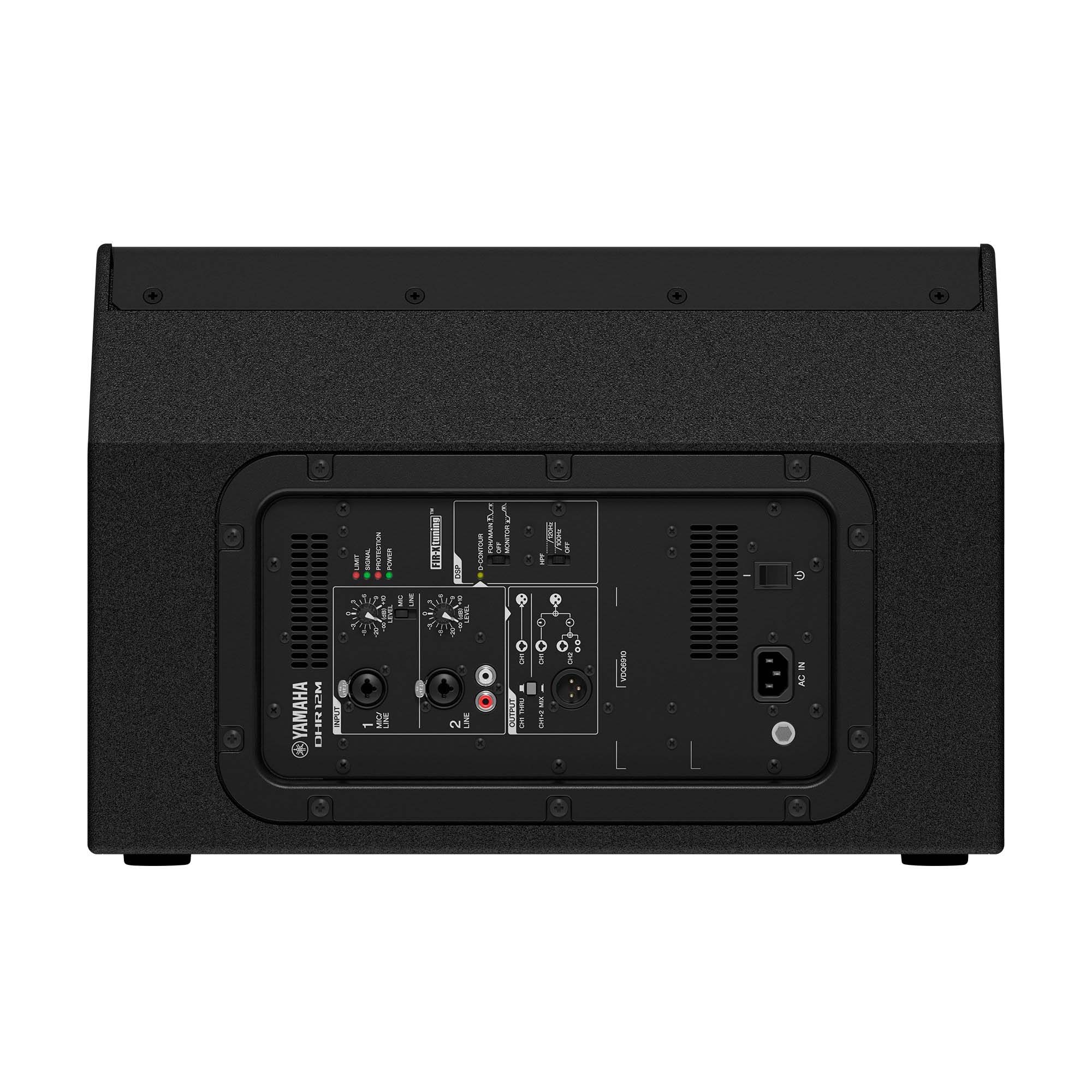

| I/O συνδέσεις |
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
| Yλικό καμπίνας |
Plywood |
Plywood |
Plywood |
| Xρώμα |
Durable Polyurea Painting, Black |
Durable Polyurea Painting, Black |
Durable Polyurea Painting, Black |
| Xερούλι |
Side x2 |
Side x1 |
Top x1 |
| Yποδοχή στήριξης πόλου |
Φ35 mm x2 (Bottom, 0° or -7°) |
Φ35 mm x1 (Bottom) |
Φ35 mm x1 (Bottom) |
| Aνάρτηση |
Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts) |
- |
Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts) |

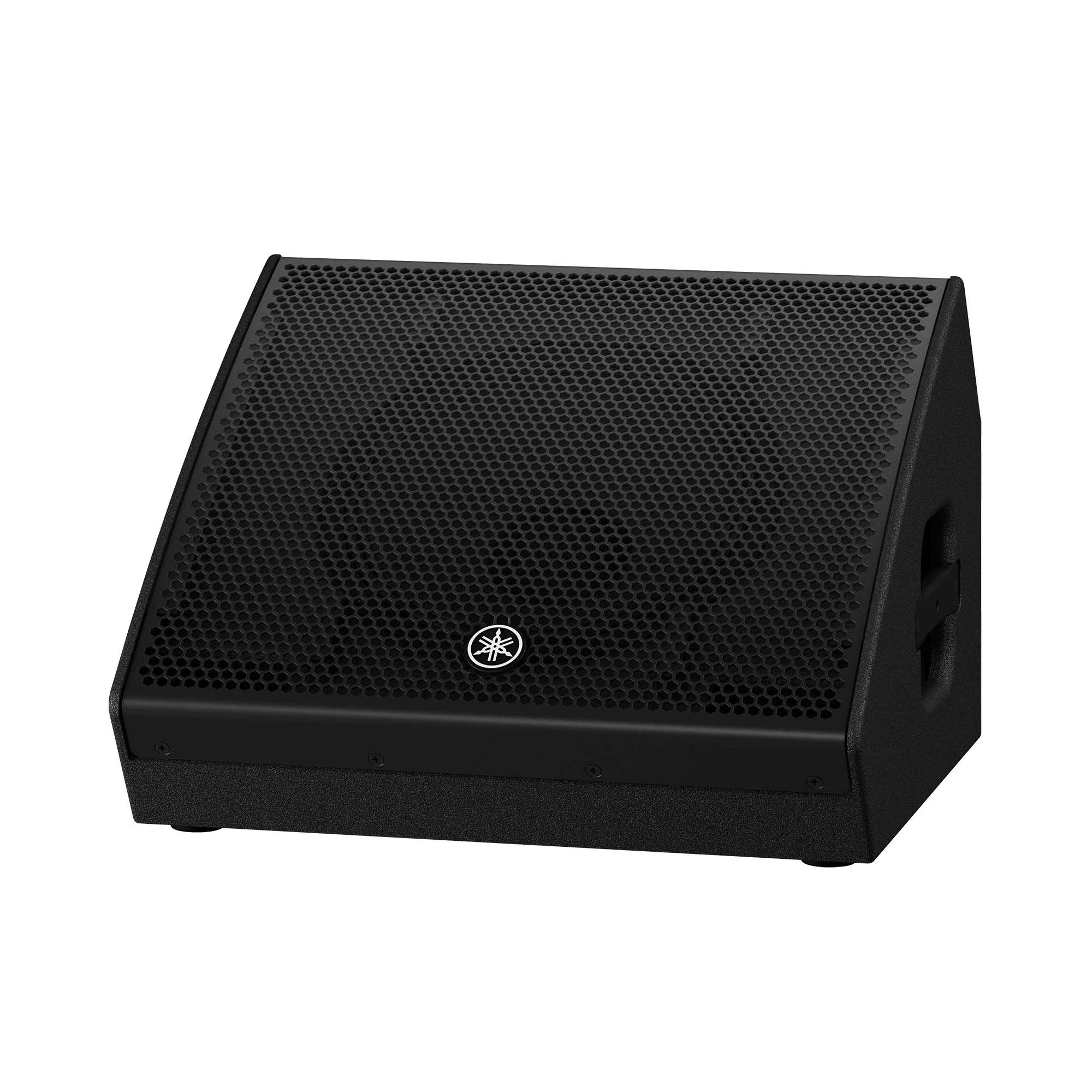

| Γωνία Monitor Eδάφους |
- |
57° |
- |
| Διαστάσεις |
Π |
432 mm (17.0") |
500 mm (19.7") |
305 mm (12.0") |
| Y |
692 mm (27.2") (with rubber feet) |
343 mm (13.5") (with rubber feet) |
494 mm (19.5") (with rubber feet) |
| Δ |
405 mm (15.9") |
454 mm (17.9") |
300 mm (11.8") |
| Net Bάρος |
24.0 kg (52.9 lbs) |
16.5 kg (36.4 lbs) |
15.0 kg (33.1 lbs) |
| Options |
- |
- |
U-bracket: UB-DXRDHR10 |
