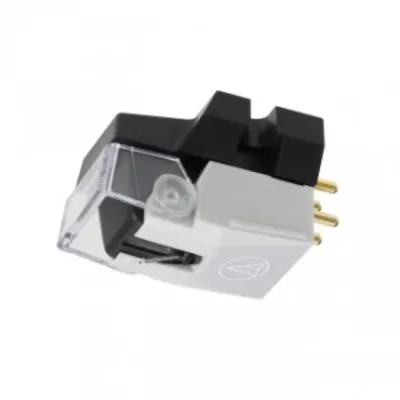

With a specialized body and internal wiring dedicated to monaural sound reproduction, plus a large curvature radius conical stylus, the VM670SP cartridge is designed for playing 78 RPM records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM670SP is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide. The stylus’s 3.0 mil curvature radius makes it an excellent choice for playing 78s from a wide variety of eras. Includes mounting hardware.
Frequency Response
20-20,000 Hz
Vertical Tracking Force
4.5-5.5 g (5.0 g standard)
Stylus Construction
Bonded round shank
Recommended Load Impedance
47,000 ohms
Output
3.0 mV (at 1 kHz, 5 cm/sec)
Stylus Shape
3.0 mil conical
Cantilever
Aluminum pipe
Mount
Half-inch
Replacement Stylus
VMN70SPCoil Impedance: 1,400 ohms (1 kHz) DC Resistance: 400 ohms Load Capacitance: 100-200 pF Coil Inductance: 230 mH (1 kHz) Static Compliance: 15 x 10-6 cm/dyne Dynamic Compliance: 2 x 10-6 cm/dyne (100 Hz) Vertical Tracking Angle: 23° Dimensions: 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D Weight: 6.4 g (0.2 oz) Accessories Included: Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts
