Projection System DLP

Resolution WXGA(1280x 800)

Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200)

Brightness (ANSI lumens)4000 Contrast Ratio (FOFO) 20,000:1

Display Color 1.07 Billion Colors Native Aspect Ratio Native 16:10

(5 aspect ratio selectable)

Light Source Lamp Light Source Wattage 200W

Light Source life* Normal 6000 hours Eco 10000 hours Smart Eco 10000 hours‎

Lamp save 15000 hours Throw Ratio 1.55~1.7 Zoom Ratio 1.1X

Keystone Adjustment Vertical: ± 40 degrees‎ Projection Offset**110%±2.5%

Clear Image Size (Diagonal) 30"~300" Image Size 30"~300"

Keystone Correction Auto ID, Vertical +/- 40 degrees

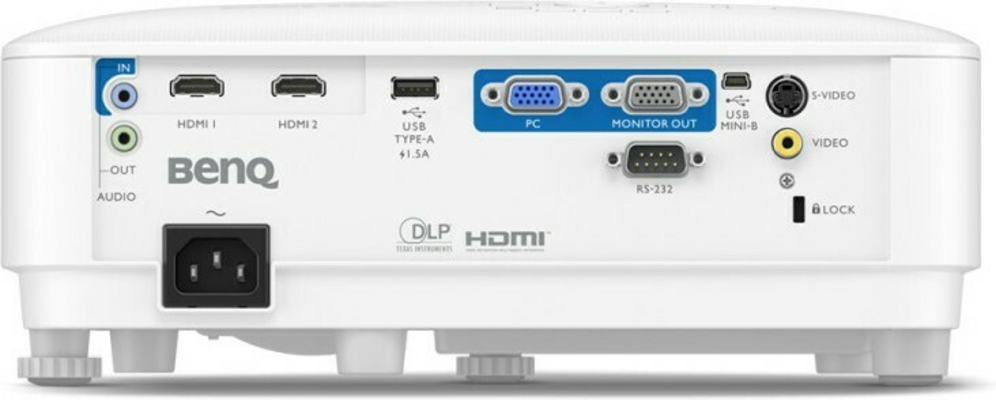

PC (D-sub) X 1 Monitor out (D-sub 15pin) X 1

S-Video in (Mini DIN 4pin)X 1

Composite Video in (RCA)X 1 HDMI X 2

USB Type Mini B X 1 Audio in (3.5mm Mini Jack) X 1

Audio out (3.5mm Mini Jack) X 1

RS232 (DB-9pin)X 1 IR Receiver X 2 Security Bar X 1
