Features
Input level (line in)
Input level (speaker in)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switch
Description

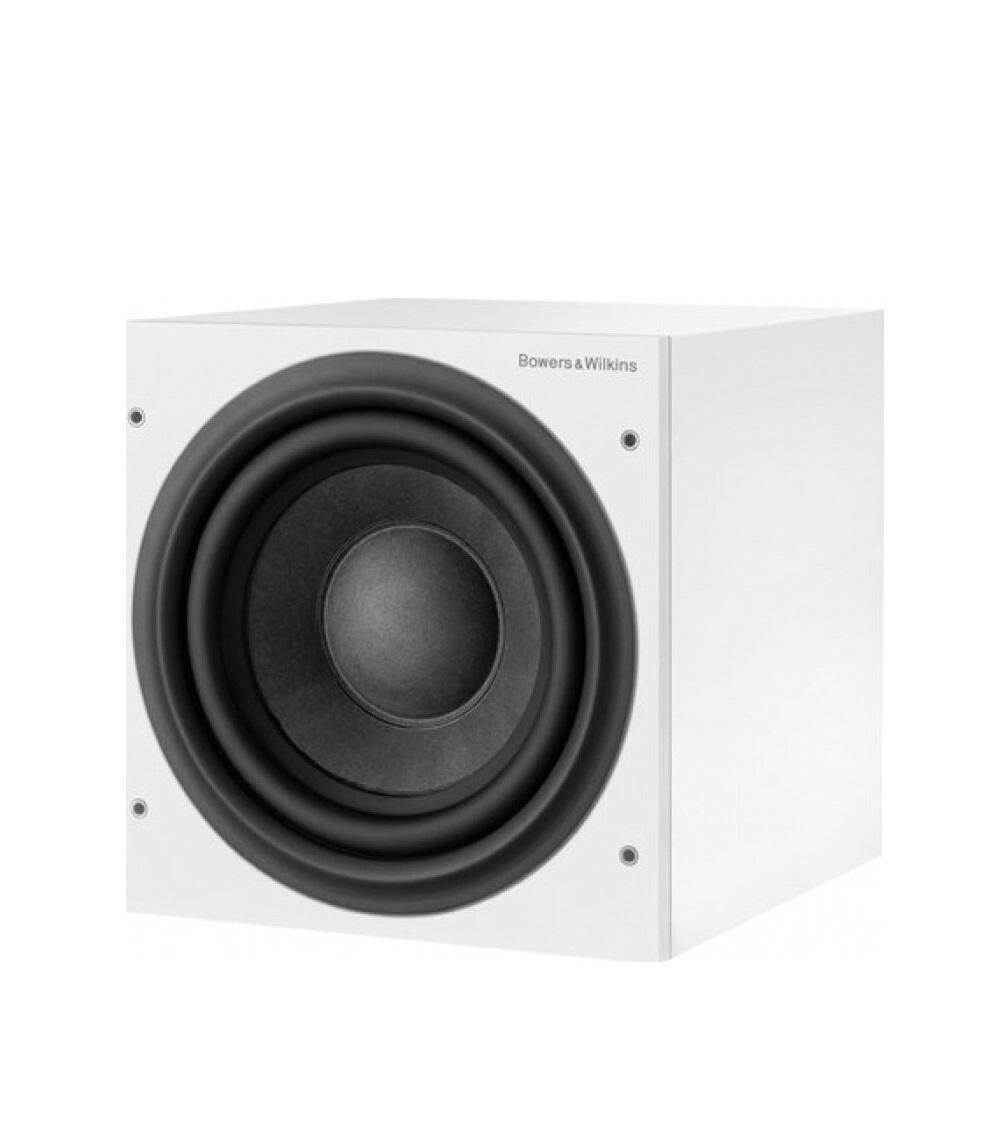

Active closed-box subwoofer system
Drive unit
ø250mm (10 in) paper / Aramid fiber cone long-throw
Frequency range
-6dB at 20Hz and 25 / 140Hz adjustable (EQ at A)
Frequency response
±3dB 27Hz – 40 / 140Hz adjustable (EQ at A)
Bass extension
-6dB at 20Hz (position A)
-6dB at 25Hz (position B)
-6dB at 30Hz (position C)
Power output
200W
Rated power consumption
40W / 0.5W standby
Input impedance
33kΩ
Signal / noise
>90dB
Inputs
Line in (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency
Dimensions
Height: 310mm (12.2 in) not including feet or spikes
322mm (12.7in) including feet
338mm (13.3in) including spikes
Width: 310mm (12.2 in)
Depth: 347mm (13.66in) not including grilles
375mm (14.8 in) including grilles and controls
Net weight
12.5kg (27.6 lb)
Cabinet finishes
Black
White
