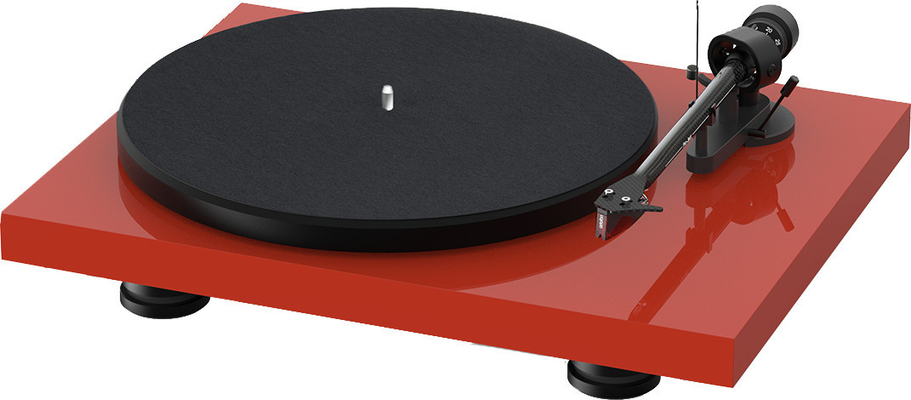

Pro-ject Debut Carbon EVO (Red)

Suspension

Improved motor suspension

The Debut Carbon EVO features our new designed motor suspension. We have improved the old design to consistently reduce the vibrations better than before.

• Metal Feet

Damped & height adjustable. The new Debut Carbon Evo stands on three height adjustable damped aluminium feet to guarantee the perfect stand.

• 1,7 kg Platter

Heavy steel and TPE damped. We added a TPE (thermoplastic elastomer) ring on the inside of the platter. The result is an even quieter and noiseless operation with less wow and flutter.

• 33/45/78 RPM

High precision motor control.  The rocker switch on the buttom of the turntable allows you to change speeds with the push of only a single button.

---

Technical specifications

• Nominal speeds 33/45 r.p.m.. *** 78 r.p.m. optional
• Speed variance 33: ±0.50% 45: ±0.60%
• Wow and flutter 33: ±0.17% 45: ±0.15%
• Signal to noise 68dB
• Effective tonearm mass 6g
• Effective tonearm length 8.6 ” ( 218.5 mm)
• Overhang 18,5 mm
• Power consumption 4 W/ 0 W in Stand-By
• Outboard power supply 15V / 0 – 0.8 mA DC (set at 0.5 mA), universal power supply
• Dimensions (W x H x D) 415 x 118 x 320 mm, dust cover open 415 x 365 x 405mm
• Weight 5,6 kg
• Dimensions packaging (W x H x D) 488 x 235 x 393 mm
• Weight incl. packaging 8.0 kg

———-

• Ortofon 2M Red:
• Frequency range 20-22.000 Hz
• Channel separation
