FULLY AUTOMATIC HIFI-TURNTABLE
The fully automatic function of the CS 429 provides maximum ease of use. The tonearm automatically lifts, shifts across and drops with the push of a button. Simply place the vinyl record on the platter and push the start button.
The CS 429 has a fully adjustable tonearm. This provides the option to change the pickup in the future and to alter the trackingforce and anti-scating accordingly.
The internal rubber damping construction decouples the tonearm and platter from external vibrations. This very quiet platform pro-vides an excellent sound performance combined with precise, optical speed control.
TECHNICAL SPECIFICATIONS:
Motor:Drive: Belt
Speed settings 33/45/78
Wow & Flutter< ±0,08 % (DIN WTD)
Tonearm:Auto-Start/-Stop-Function:Automatic
Bearing:Ball-bearing
Effective length:221,5 mm
Offset Angle:25,6°
Overhang:19 mm
Type:statically balanced
Stylus Pressure Range:0 g bis 4 g
Cartridge Weight Range:5 g bis 9 g
Factory installed pick up:Ortofon 2M Red
Platter:Material:Aluminium die-cast
Mat:Rubber 2,5 mm
Bearing:Hardened steel spindle Brass bushing
Diameter:305 mm
Weight (incl. Mat):850 g
Plinth:Material:MDF, folded
Surface finish:Vinyl veneer / Black
Feet:Ø 62 mm / Elastomer

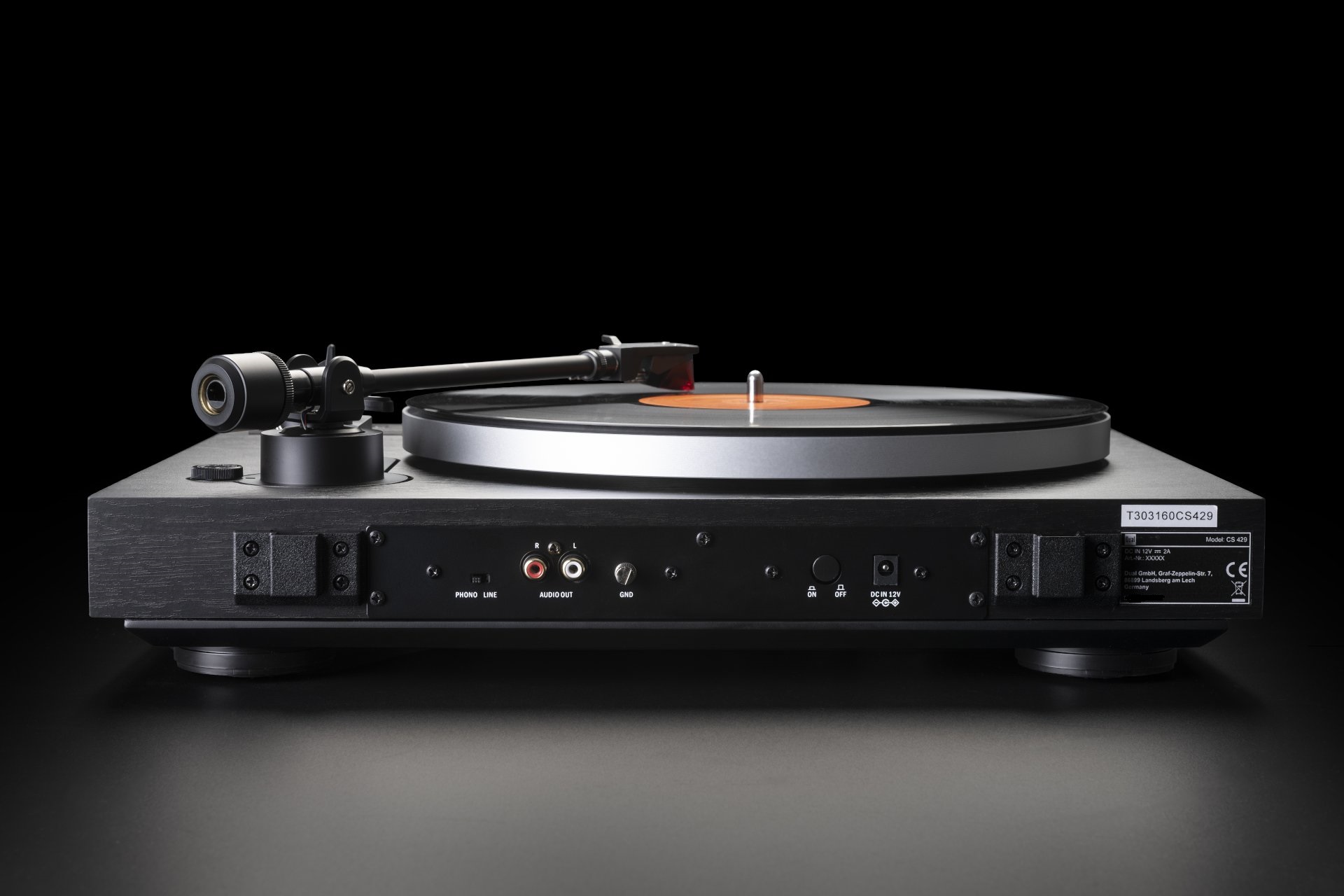

Connection:RCA socket
Connection to Phono Input: ✓
Connection to Line Input: ✓
Digital Output: ✕
Dimension, closed dustcover: 435 x 367 x 145 mm
Dimension, open dustcover: D: 415 mm / H: 400 mm
Weight: 6,2 KG
Power plug AC / DC:External power supply
DETAILS:
Plinth: Solid MDF
MDF construction with internal vibration absorber
Elastomer vibration absorber integrated inside the feet

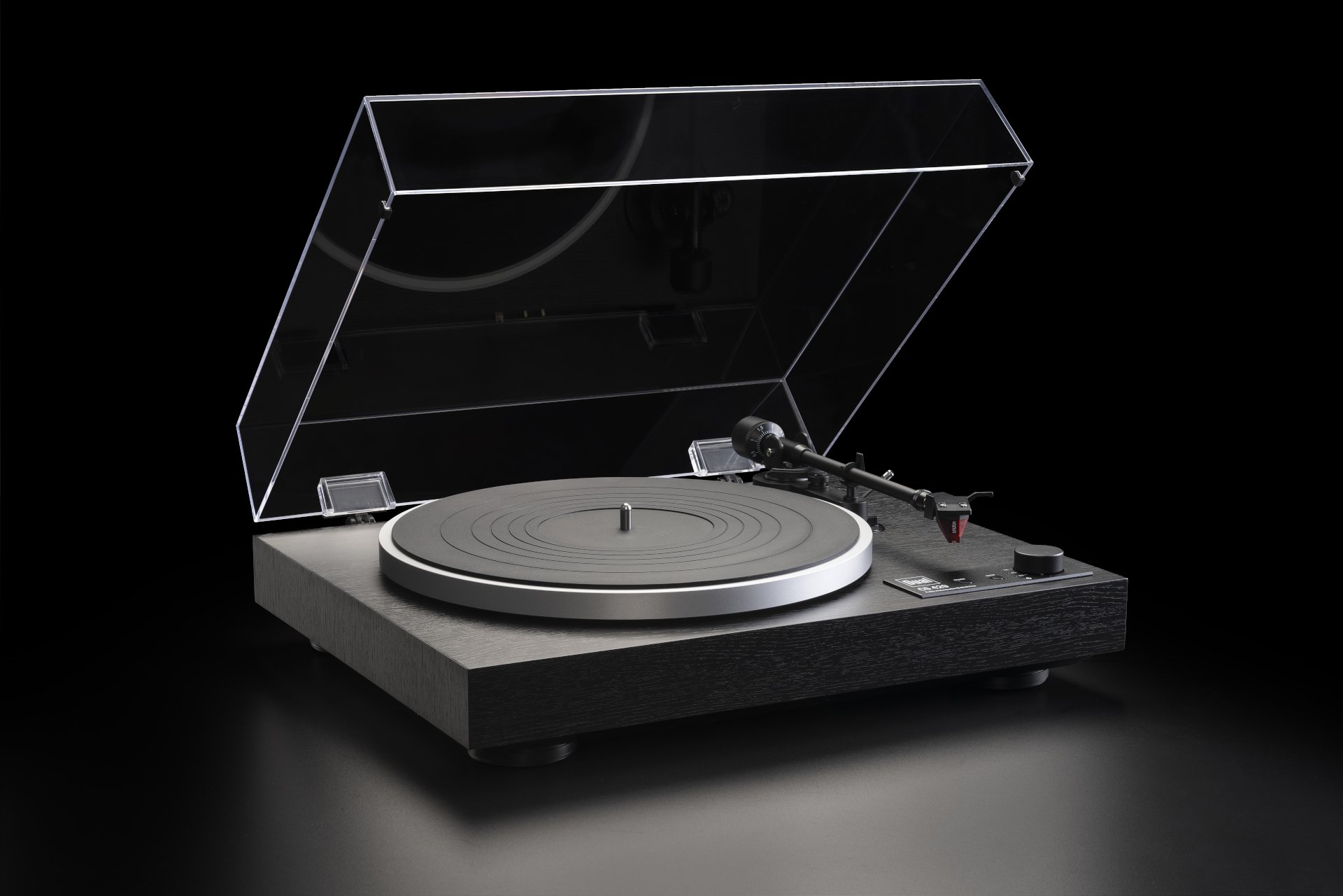

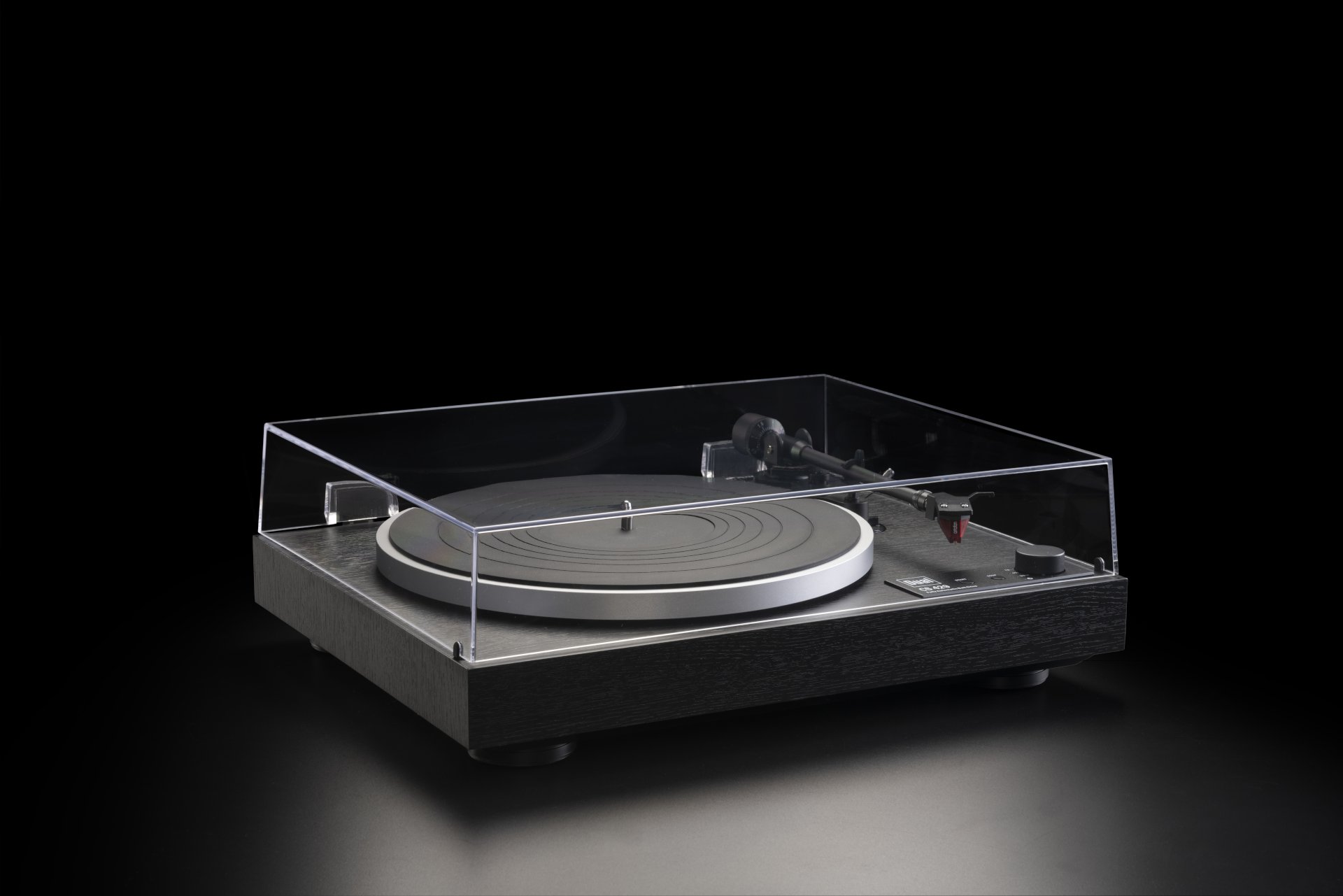

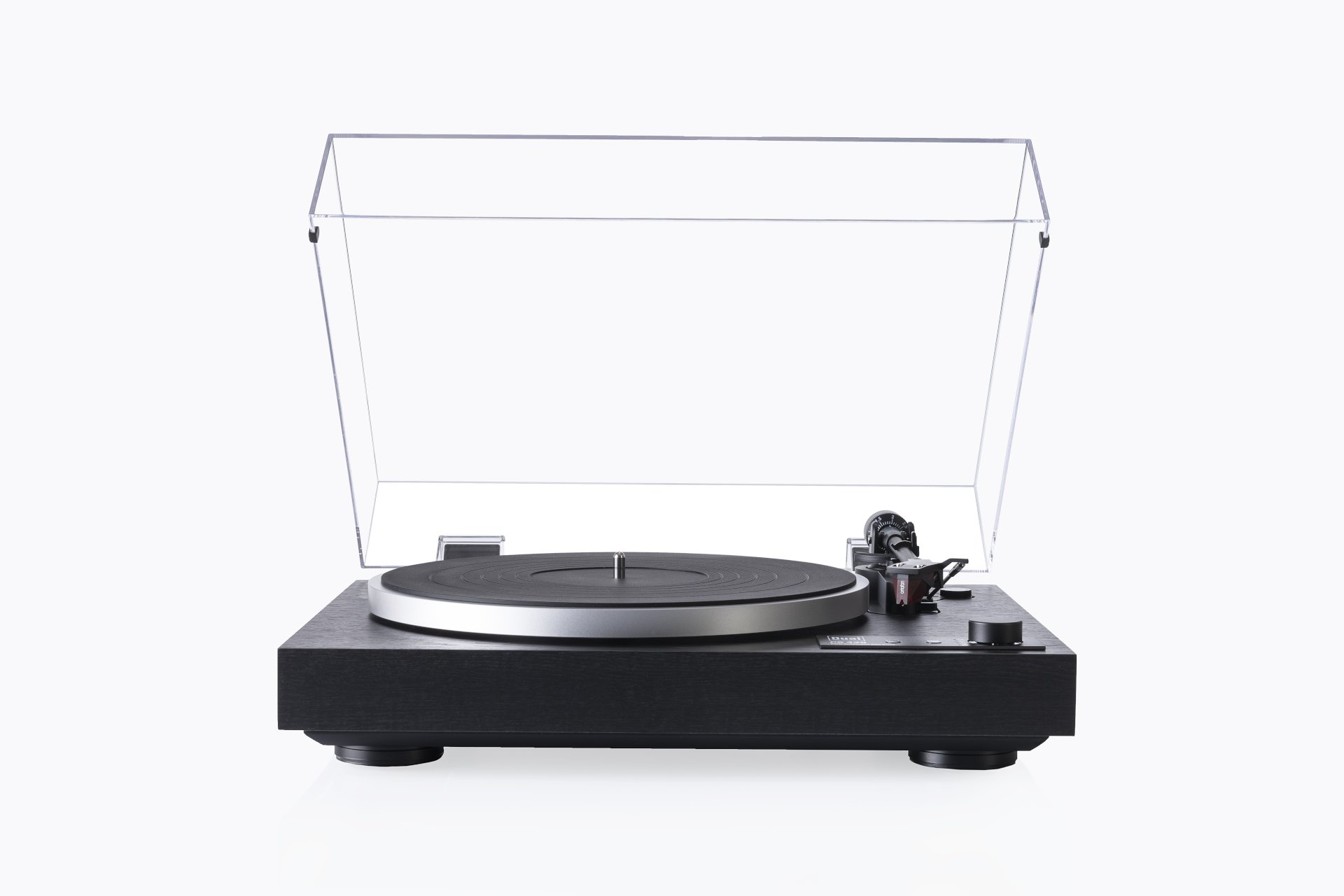

Removable dust cover
Platter: Aluminium Die-cast
Precise aluminium die-cast
Heavy rubber mat for resonance damping

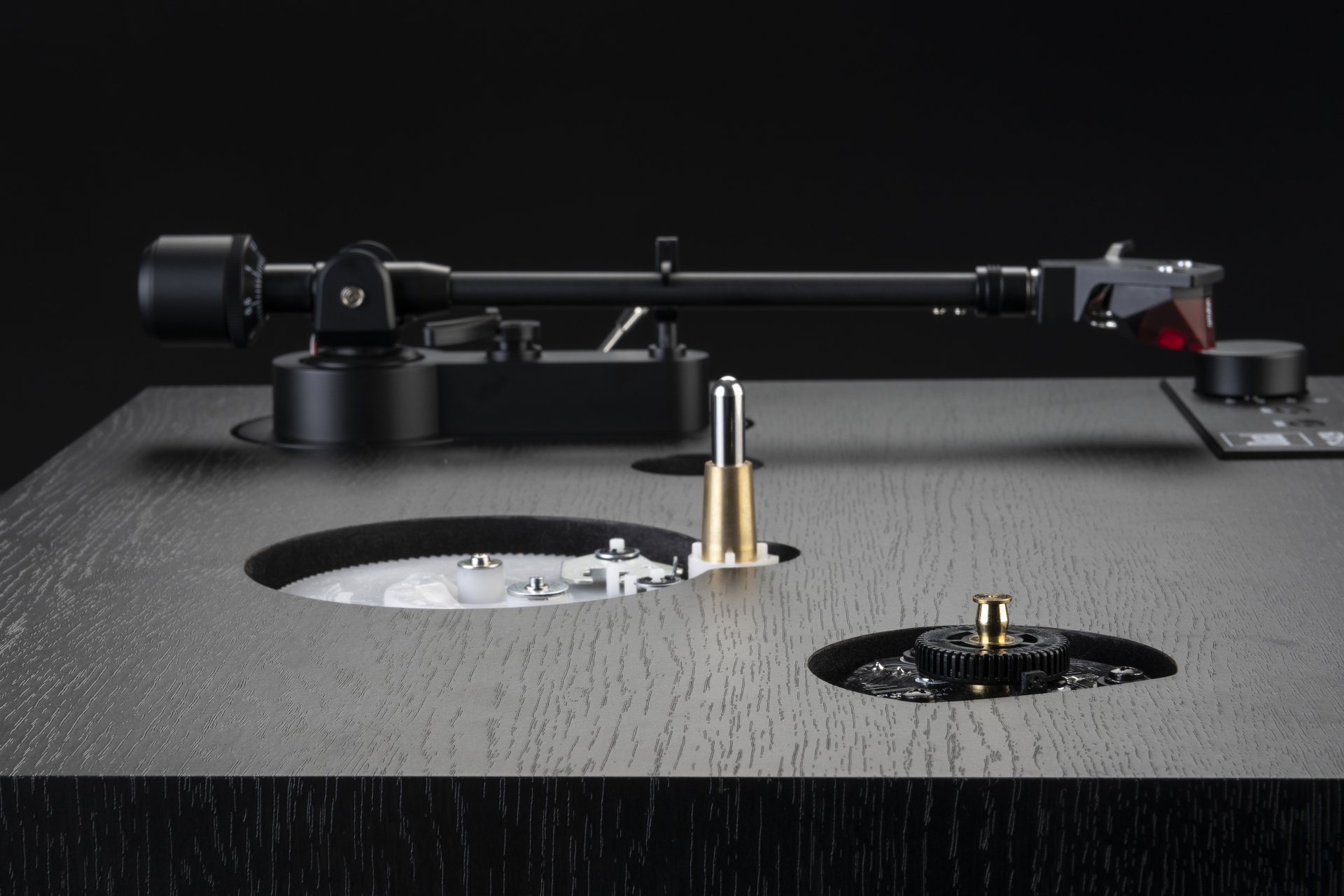

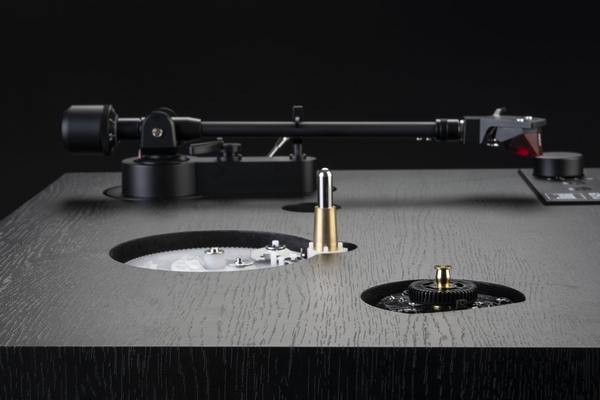

Solid platterbearing with a hardened steel spindle in a brass bushing
Tonearm: Straight, statically balanced
All functions can be fully automatic or manual
Solid aluminum construction with ball-bearings
Adjustable trackingforce and antiskating
Drive: DC- Motor / Belt
Precise optical speed control
Rubber mountings for vibration decoupling
Precision cut belt for lower wow & flutter
