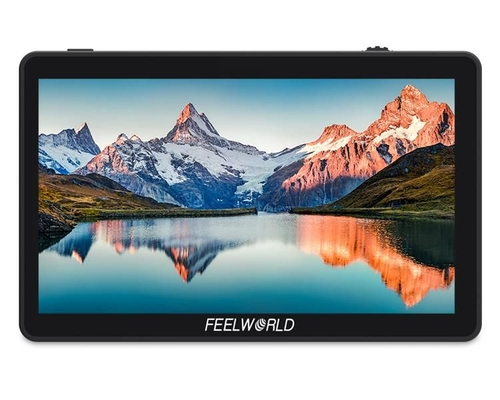

FeelWorld F6 Plus V2 6" 4K HDMI Monitor

The FeelWorld F6 Plus 6" 4K HDMI Monitor features a touchscreen display with a 1920 x 1080 resolution and brightness of 500 cd/m². It supports HDMI input signals up to DCI 4K24 and UHD 4K30, and it provides an HDMI output for connecting to wireless transmitters, larger on-set monitors, and other devices. LUTs in .cube format are supported via an SD card slot to view S-Log2, S-Log3, V-Log, and Log-C profiles in Rec. 709 color space.

A large set of software features includes waveform, vectorscope, histogram, and anamorphic mode. These can be accessed via the menu wheel on top of the monitor. The menu system is simple with touchscreen tabs on the sides and a clean look, and it provides a live view of most settings as you go through the tabs, including in the LUT tab where log profiles are selectable.

Multiple power options 12 VDC input, an 8 VDC output for connecting optional dummy battery cables, a USB Type-C port for power banks, and a battery slot that accepts an L-series battery on one side or an LP-E6 battery on the other, interchangeably. A 1/4"-20 mounting thread is provided on the bottom, top, and right side.

Key Features Touchscreen display with a 1920 x 1080 resolution 500 cd/m² brightness HDMI input signals up to DCI 4K24 and UHD 4K30 HDR function HDMI output for connecting to wireless transmitters, etc. SD card slot for uploading LUTs to view S-Log2, S-Log3, V-Log, and Log-C profiles in Rec 709 color space 12 VDC input (not include), 8 VDC output for optional dummy battery cables, USB Type-C port for power banks Single battery slot accepts an L-series battery on one side or an LP-E6 battery on the other Three 1/4"-20 mounting threads

Package Include

Standard Accessories
1× Micro HDMI Cable
1× Sunshade
1× Tilt Arm
1× Operation Manual

Software Features Parade (RGB, YUV, Y) Vectorscope Histogram Peaking focus assist False colors Zebra exposure (1 to 100%) Scan Mode (underscan, overscan) Zoom (100 to 300%) Anamorphic mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x) Pixel to pixel Nine gird Center marker Safety marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1) Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) Marker color (red, green, blue, white, black, yellow) Check field (red, green, blue, gray) Image flip (H, V, H/V) Image freeze Color temperature adjustment

Panel Type	IPS-Type LCD
Display Size	6"
Resolution	1920 x 1080
Aspect Ratio	16:09
Viewing Angle	Horizontal: 160° (80/80)
Vertical: 160° (80/80)
Touchscreen	Yes
Maximum Brightness	500 cd/m2
Contrast Ratio	1000:1
Dot Pitch	0.0639 x 0.0213 mm
Bit Depth / Color Support	8-Bit (16.7 Million Colors)
Pixels Per Inch (ppi)	400 ppi
I/O
Video	1 x HDMI Type A Input
1 x HDMI Type A Output
Audio	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	None
Power	1 x Barrel (12 VDC) Input
1 x Barrel (8 VDC) Output
1 x USB Type-C (5 VDC) Input
Wi-Fi	None
Format Support
Video Format	HDMI
DCI 4K 4096×2160p: 24
UHD 4K 3840×2160p : 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i
Power
DC Input Power	7 to 24 VDC
Battery Type	1 x LP-E6, L-Series
Power Consumption	9 W
Mounting
Mounting	3 x 1/4"-20 Female
Environmental
Operating Temperature	-4 to 131°F / -20 to 55°C
Storage Temperature	-22 to 149°F / -30 to 65°C
