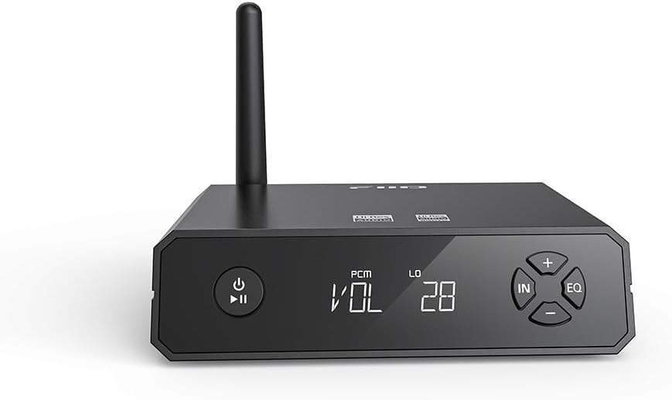

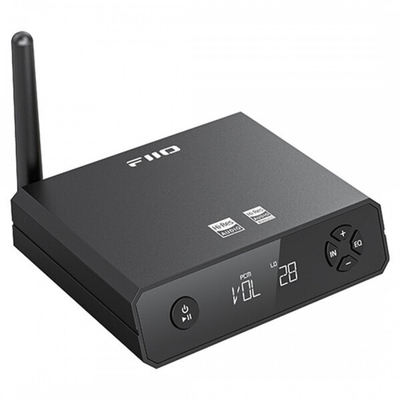

FiiO BR13 Black

Αυτός ο δέκτης Bluetooth BR13 της FiiO είναι εξοπλισμένος με ένα τσιπ ES9018K2M DAC, ένα τσιπ δέκτη Bluetooth έκδοσης 5.1 QCC5125 και ένα τσιπ ενισχυτή TPA1882. Ευέλικτο και υψηλής απόδοσης, διαθέτει ένα ευρύ φάσμα υποδοχών, συμπεριλαμβανομένων των οπτικών εισόδων Toslink, ομοαξονικών SPDIF και USB-C, καθώς και δύο εξόδων: μια στερεοφωνική έξοδο γραμμής RCA και μια οπτική έξοδο Toslink. Αυτό το καθιστά συμβατό με μεγάλο αριθμό συσκευών Hi-Fi για εύκολη ενσωμάτωση στο ηχοσύστημά σας, συνδεδεμένο απευθείας σε DAC, ενισχυτή ισχύος ή ενεργά ηχεία, για παράδειγμα. Δέχεται ροές ανάλυσης 24-bit 96 kHz μέσω των εισόδων του και είναι σε θέση να αναπαράγει ένα επίπεδο σήματος 2Vrms μέσω της εξόδου RCA του.

FIIO BR13 : Bluetooth 5.1 QCC5125 receiver chip

The Qualcomm QCC5125 Bluetooth receiver chip enables FiiO's BR13 to support high-resolution Bluetooth codecs; SBC, AAC, aptX, adaptive aptX, aptX LL, aptx HD, LDAC. It supports multiple connections to up to 2 simultaneous devices for easy source switching. Low Latency mode (aptX LL) lets you use the BR13 to watch movies or play video games while avoiding latency effects.

FIIO BR13 : Presets and EQ for a customizable listening experience

Thanks to its control application, the BR13 gives you access to 7 presets and 2 types of EQ settings with 10 adjustable frequency bands. This feature allows you to customize your listening experience according to your tastes and audio source.

FIIO BR13 : Upsampling technology

FiiO's proprietary technology enables the BR13 to upsample low-resolution streams up to 24Bit 96kHz via all its inputs, for quality sound reproduction.

FIIO BR13 : A high-performance chipset

The BR13 integrates high-quality components: a QCC5125 Bluetooth receiver chip, an ES9018K2M DAC chip and a TPA1882 amplifier chip. The combination of these three components guarantees quality sound reproduction. The ES9018K2M DAC chip is a 32-bit stereo chip from ESS Technologie specially designed for audiophile applications. In addition, the TPA1882 operational amplifier chip guarantees low distortion and noise levels. In terms of performance, FiiO's BR13 boasts an SNR > 112dB as well as a THD+N < 0.0008% on its non-Bluetooth inputs and a THD+N < 0.0018% in Bluetooth LDAC.

FIIO BR13: Many possible configurations

Bluetooth input

USB input

Optical/SPDIF input

Optical/SPDIF input

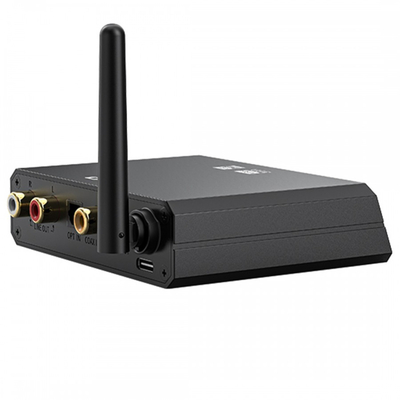

Overview of the FiiO BR13 Bluetooth receiver

1	RCA stereo line output
2	Toslink optical input
3	SPDIF Coaxial input/output
4	Toslink optical output
5	USB-C input
6	Bluetooth antenna

Technical characteristics

Specifications
Product type	Bluetooth Receiver
DAC Chip	ES9018K2M
Amplification chip	TPA1882
Bluetooth Chip	QCC5125
Inputs	1x USB-C input 1x Optical Toslink input 1x Coaxial SPDIF input/output Bluetooth
Outputs	1x Optical Toslink 1x SPDIF Coaxial input/output 1x RCA stereo
Supported Bluetooth codecs	AAC / SBC / aptX / aptX LL / aptX Adaptive / aptX HD / LDAC
Multi-sources Bluetooth
Supported sample rates	Local: 32Bits 96kHz Coaxial input: 32Bits 192kHz Toslink input: 24Bits 96kHz Coaxial output: 24Bits 96kHz (upsampling x2) Toslink output: 24Bits 96kHz (upsampling x2)
Screen	LCD

LDAC BLUETOOTH RECEPTION AND RCA LINE OUTPUT MEASUREMENTS
THD+N	＜ 0.002% (1kHz / -0dB @ 10KΩ)
Crosstalk	≥ 98dB (1kHz / -0dB @ 10KΩ)
Frequency response	20Hz-20KHz
SNR	≥ 113dB (A-weighted)
Noise floor	＜5uV (A-weighted)
RCA line output level	2Vrms

RCA LINE OUTPUT MEASUREMENTS (USB DAC INPUT/OPTICAL DECODING)
THD+N	＜ 0.0006% (1kHz / -0dB @ 10KΩ)
Crosstalk	≥ 108dB
Frequency response	20Hz-20KHz
SNR	≥ 114dB (A-weighted)
Noise floor	＜5uV (A-weighted)
RCA line output level	2Vrms

RCA LINE OUTPUT MEASUREMENTS (SPDIF INPUT)
THD+N	＜ 0.0006% (1kHz / -0dB @ 10KΩ)
Crosstalk	≥ 109dB
Frequency response	20-20KHz : damping < 1.9dB 20Hz-50KHz : damping ＜ 1.2dB
SNR	≥ 114dB (A-weighted)
Noise floor	＜5uV (A-weighted)
RCA line output level	2vrms

General
Power supply voltage	USB 5V 1A
Dimensions	98 x 96 x 26.5mm
Net weight	135g
Color	Black
Package	1x FiiO BR13 Bluetooth receiver 1x USB-A to USB-C cable (Data)
