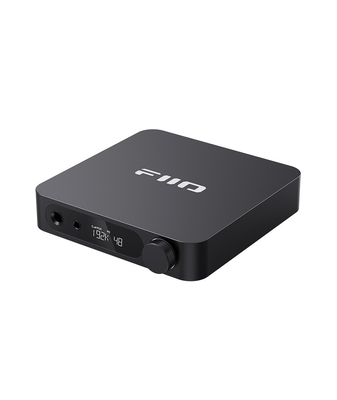

Fiio K11 Επιτραπέζιος Ψηφιακός Ενισχυτής Ακουστικών Καναλιών με DAC, USB και Jack 6.3mm

Το FiiO K11 είναι ένας ευέλικτος ενισχυτής USB DAC και ακουστικών. Στην πλευρά του DAC, ένα τσιπ CS43198 και ο ελεγκτής GD32F303RET6 του επιτρέπουν να υποστηρίζει αρχεία υψηλής ανάλυσης έως PCM 32 bit 384 kHz και εγγενή DSD έως και DSD256. Όσον αφορά το στάδιο του ενισχυτή ακουστικών, το FiiO έχει εξοπλίσει το K11 του με υψηλό επίπεδο ισχύος. έως 520mW @32Ω στην μη ισορροπημένη έξοδό του και έως 1400mW @32Ω στην ισορροπημένη έξοδό του. Αυτό το καθιστά συμβατό με μεγάλο αριθμό ακουστικών και ακουστικών στην αγορά με σύνθετες αντιστάσεις μεταξύ 16Ω και 350Ω. Το FiiO K11 ενσωματώνει επίσης μια μεγάλη γκάμα υποδοχών, με οπτική είσοδο Toslink, ομοαξονική είσοδο SPDIF, έξοδο στερεοφωνικής γραμμής RCA και ομοαξονική έξοδο SPDIF, επιτρέποντάς του να ενσωματώνεται εύκολα σε οποιαδήποτε εγκατάσταση Hi-Fi.

FiiO K11 : A high-performance DAC with volume

Thanks to its wide range of connectors, the K11 is able to accept a wide range of sources. Its asynchronous USB-C input, combined with the GD32F303RET6 controller and CS43198 DAC chip, enables it to support high-resolution files up to PCM 32bit 384kHz and native DSD up to DSD256, whether they come from your computer, smartphone, tablet or game console, for example.

FiiO K11 : Powerful amplification circuitry and low-noise power supply

As mentioned above, the K11 is capable of delivering a powerful audio signal on its headphone outputs, with 520mW @32Ω on its unbalanced 6.32mm jack output and up to 1400mW @32Ω on its balanced 4.4mm jack output. Its amplification circuitry enables it to achieve a distortion level of just 0.0009%. The entire K11 circuit is powered by a stable supply of no less than 16 low-noise LDOs.

FiiO K11 : Three adjustable gain levels

FiiO has equipped its KI11 with three separate gain levels, each with its own volume level adjustment curve. This allows you to enjoy the best listening experience whether your headphones or earphones are sensitive or difficult to control.

FiiO K11 : A refined look

The front panel of the K11 features an attractive LCD display showing information on the resolution of the file being played, the volume and gain levels, and the input source.

An enlightened logo for the FiiO K11

On the top of the K11, the FiiO logo is illuminated by various LEDs whose brightness, color and light pattern animations can be adjusted.

FIIO K11 RGB LED SETTING PARAMETERS
RGB-M : Status	0: Follow audio / 1: Red / 2: Blue / 3: Cyan / 4: Violet / 5: Yellow / 6: White / 7: Green / 8: Follow cycle
RGB-P: Light pattern	Y: Pulse N: Constant
RGB-B: Brightness	0: Off / 1, 2, 3, 4, 5: Brightness level

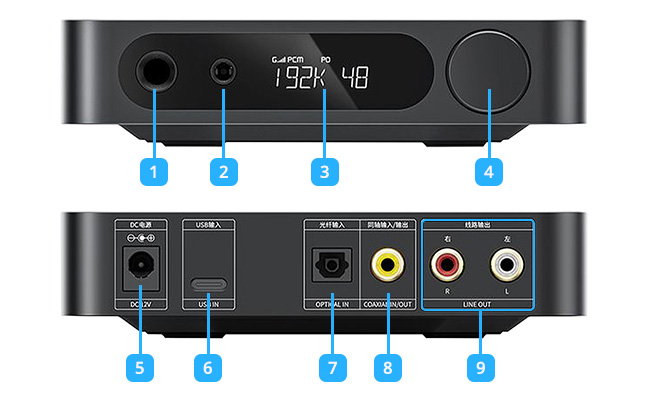

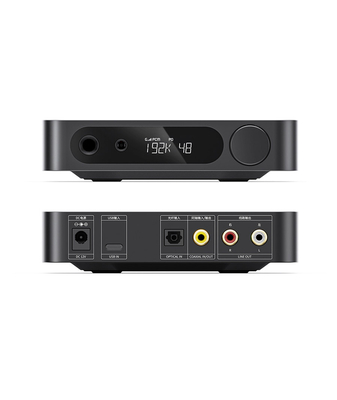

FiiO K11 overview

1	6.35mm jack unbalanced headphone output
2	Balanced 4.4mm jack headphone output
3	LCD Screen
4	Multi-function knob
5	Power supply DC 12V 2A
6	USB-C input
7	Toslink optical input
8	SPDIF Coaxial input/output
9	RCA stereo line output

Technical characteristics

Specifications
Product type	DAC USB Headphone amplifier
DAC chip	CS43198
Microcontroller	GD32F303RET6
USB interface	SA9312L
SPDIF interface	MS8422N
OPA	2x SGM8262-2
Inputs	1x USB-C 1x SPDIF Coaxial 1x Optical Toslink
Outputs	1x Unbalanced 6.35mm headphone output 1x Balanced 4.4mm jack headphone output 1x RCA line output
Supported sample rates	USB DAC: PCM 32Bits 384kHz, DSD256 SPDIF Coaxial: 24Bits 192kHz Toslink optical: 24Bits 96kHz
Gain adjustment
Default logo LED display	Cyan: ≤ 48KHz / Yellow: ≥ 48kHz / Green: DSD

6.35MM JACK UNBALANCED HEADPHONE OUTPUT MEASUREMENT
Ouput power	520mW @32Ω (High gain) 60mW @300Ω (High gain)
Distortion rate	0.00059%
Signal-to-noise ratio	123dB
Frequency response	20Hz-50kHz
Crosstalk	71dB

4.4MM JACK BALANCED HEADPHONE OUTPUT MEASUREMENT
Ouput power	1400mW @ 32Ω (High gain) 250mW @300Ω (High gain)
Distortion rate	0.0010%
Signal-to-noise ratio	123dB
Frequency response	20Hz-50kHz
Crosstalk	106dB

RCA LINE OUTPUT MEASUREMENT
Output level	1.95Vrms
THD+N	＜ 0.00035% (1kHz/-0.3dB@10KΩ)
Signal-to-noise ratio	≥ 126dB (A-weighted)
Frequency response	20Hz-50kHz
Crosstalk	≥ 120dB

General
Power supply voltage	12V DC 2A
Dimensions	147 x 32 x 133mm
Weigth	407g
Color	Black
Package	1x Dac Headphone amplifier FiiO K11 1x Power adapter 1x USB-A to USB-C cable 1x 3.5mm to 6.35mm jack adapter
