AC Current Capacity:
Input - 16 Amp capacity required
Output - 16 Amps RMS (15 Amps continous & 215 VAC)
AC Voltage Regulation:

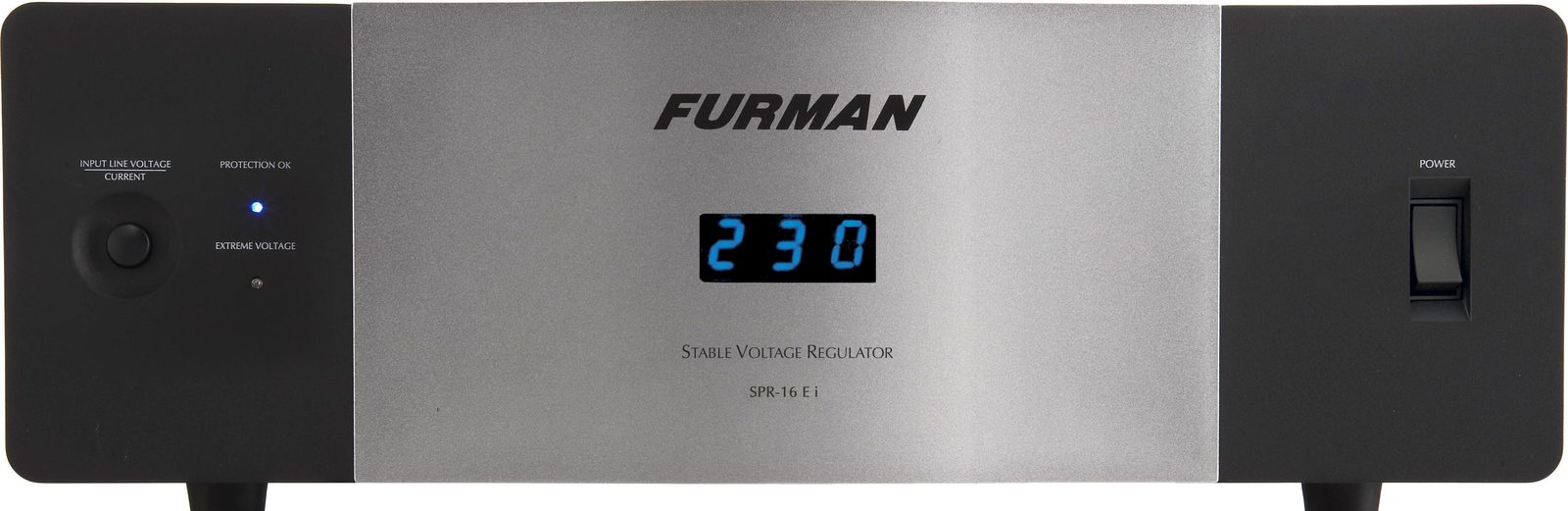

Provides AC regulation for a continuous output of 230VAC (±5.0V typically) with an input voltage range of 213VAC to 245VAC. (The SPR-16E i will regulate well beyond 213VAC to 245VAV, but not within ±5.0VAC)
Linear Noise Attenuation:
Tranverse (Differential) Mode:
> 40 dB from 10 kHz - 100 kHz, > 80 dB from 100 kHz - 1GHz
(Linear attenuation curve from 0.05 - 100 ohms line impedance)
Common Mode (video outlets):
> 75 dB, 10 Hz - 50 kHz, > 40 dB 50 kHz - 1 MHz

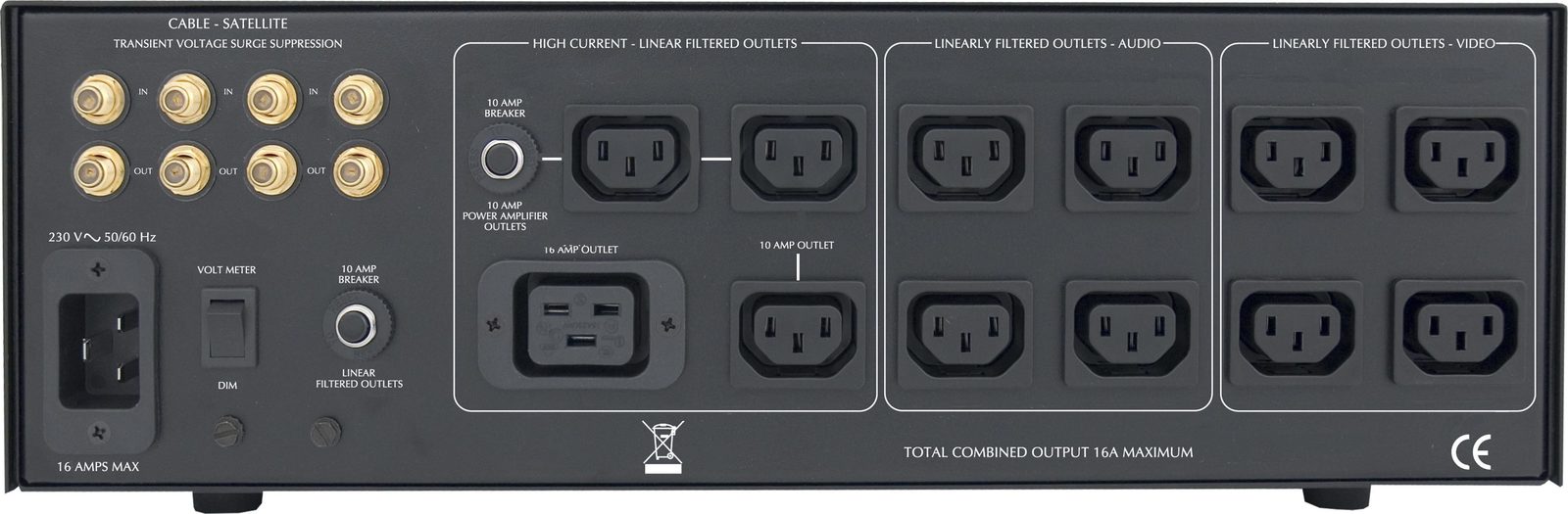

Outlets:
1 (linearly filtered outlet – 16 amp)
7 (linearly filtered outlets)
4 (linearly filtered outlet with additional ultrasonic filtering for video components)
Transient Voltage Surge Suppression: 230 VAC - Series Multi-Stage Protection - Non-Sacrificial with Zero Ground Contamination.
(376 V peak clamping & 6000V / 3000A input)
Telco Cable / Satellite (less than .1dB insertion loss)
Shutdown Range: >275 VAC ± 5 VAC
Dimensions: 152mm H x 432mm W x 413mm D
(Standard 3 rack unit height without feet)
Weight: 15.5 kg.
