Τώρα, ο φορητός ενισχυτής υψηλής ανάλυσης DAC/ακουστικών που λειτουργεί με μπαταρία και απόχρωση Titanium Shadow, αποπνέει διαχρονική κομψότητα με μια πινελιά μοντέρνας πολυπλοκότητας. Η μεταμόρφωση εκτείνεται πέρα από την αισθητική. Το σασί αλουμινίου του hip-dac 3 διαθέτει νέα χαρακτηριστικά, προσαρμοσμένα για να αναβαθμίσουν την ηχητική σας εμπειρία. Δύο θύρες USB-C απλοποιούν τη διαχείριση του καλωδίου σας: μία για ήχο και η άλλη για φόρτιση. Ένας διακόπτης στο κάτω μέρος ενεργοποιεί την τεχνολογία iEMatch του iFi, η οποία είναι βελτιστοποιημένη για ακουστικά υψηλής ευαισθησίας, καθιστώντας την ιδιαίτερα ωφέλιμη για in ear monitors (IEM). Στο εσωτερικό, η συσκευή διαθέτει βελτιώσεις κυκλώματος, συμπεριλαμβανομένων νέων πυκνωτών μεταλλικών φιλμ για καλύτερη απόκριση συχνότητας. Επιπλέον, μια ενημερωμένη έκδοση του κυκλώματος GMT του iFi, σε συνδυασμό με έναν νέο ταλαντωτή κρυστάλλου, μειώνει περαιτέρω τον θόρυβο φάσης, παρέχοντας έναν πιο καθαρό ήχο σε εσάς.
Hip flask size. Magnum performance.
With its sleek, robust aluminium enclosure, the portable hip-dac 3 discreetly fits in a pocket or bag. It replaces the subpar DAC and amplifier in smartphones, tablets, PCs, and Macs. Just connect via USB-C, plug in your favourite headphones, and enjoy rich, dynamic sound.
iFi’s expertise with the Burr-Brown chipset ensures optimal performance. However, a superior DAC stage involves more than just the DAC chip. A crucial element is the XMOS chip for processing digital audio inputs. The hip-dac 3 features a 16-core XMOS microcontroller, programmed by iFi’s in-house team to optimise sound quality and ensure a perfect hi-res partnership with the Burr-Brown DAC.
Tailored for your headphones and earphones
The amp stage has switchable gain, called PowerMatch, to ensure optimal power for the headphones you are using.
An underside switch engages iFi’s iEMatch technology, optimising output for high-sensitivity headphones, especially in-ear monitors (IEMs). It reduces hiss, enhances detail and dynamic range, and improves volume control range.
XBass is a user-selectable feature that boosts bass without muddying the midrange, ideal for your earphones and open-back headphones. It works in the analogue domain, avoiding alterations via DSP.
Play all your files, including MQA
Hi-res PCM and DXD audio data is supported at sample rates up to 384kHz, alongside DSD from 2.8MHz to 12.4MHz (DSD64, 128 and 256).
Full decoding of MQA – the hi-res streaming technology, as used by Tidal’s ‘HiFi Plus’ tier – is also supported, performing the full ‘three unfold’ decoding process (as opposed to just the final unfold in the manner of an MQA ‘renderer’).
Either side of the rotary volume control reside a pair of LEDs that change colour to indicate the format and sample rate of the incoming audio.
Get connected
The hip-dac 3’s USB-C input supports up to 32-bit/384kHz audio, compatible with USB 3.0 and 2.0. Its asynchronous design ensures jitter-free data transfer. A separate USB-C charging port allows use while charging, preserving a pure audio signal path.

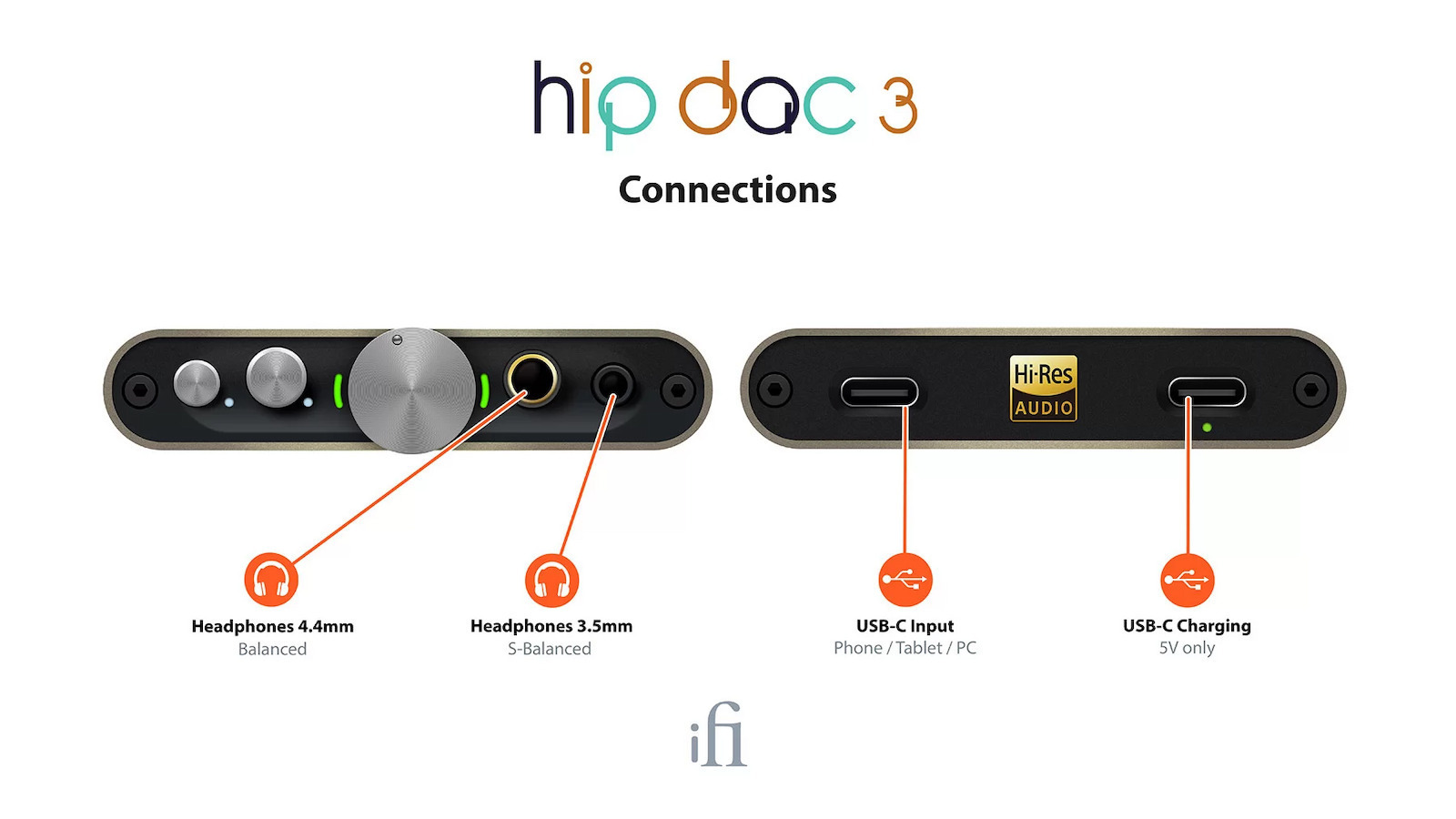

The hip-dac 3 provides two outputs: a 3.5mm socket for single-ended headphones and a 4.4mm balanced output for those with balanced connectivity, leveraging the device’s differential amp design. The 3.5mm output utilizes iFi’s S-Balanced circuitry, minimizing crosstalk and distortion for single-ended connections.
The hip-dac 3’s 2,200mAh battery offers up to 12 hours of playtime, varying by volume and headphone power needs. It includes a USB-C OTG cable and a USB-A to USB-C cable.
Hi-Res True Native® playback of all music formats from MP3 to DSD256, PCM384 and DXD384.
The Burr-Brown True Native® chipset means file formats remain unchanged or ‘bit-perfect’. This means you are listening to music as the artist intended in the format in which it was recorded.
At iFi we use Burr Brown extensively in our products having selected it for its natural-sounding ‘musicality’ and True Native architecture. Our experience with this IC means we know how to make the most of it.
The XMOS 16-Core chip processes the audio data received via the USB digital input.
This new low-latency XMOS microcontroller has greatly enhanced processing power. Compared to the current generation of eight-core chips, this new 16-core IC delivers double the clock speed (2000MIPS) and four times the memory (512KB), as well as the latest SuperSpeed USB standard.
iFi’s in-house digital development team has programmed the XMOS firmware to optimise sound quality and ensure a perfect partnership with the Burr-Brown DAC.
MQA (Master Quality Authenticated)
MQA is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download. The hip-dac2 adopts MQA technology to receive and decode MQA audio and provide master-level sound.
Visit mqa.co.uk for more information.
It is a superior method to the traditional single-ended circuit approach. Balanced circuits reduce noise and crosstalk. Less Interference – clearer sound.
You normally find this set-up in products at the higher end of the price spectrum such as the Pro iCAN Signature but iFi is now using this across its range to produce the best quality audio for all our customers.
XBass is an analogue headphone spatialiser. It opens up your music to give you the feeling of spaciousness experienced at a live concert.
iFi’s exclusive S-Balanced® circuit delivers maximum performance from single-ended and balanced headphones alike.
See our Tech Note to dig deeper.
Specifications
- Input: USB-C
- Formats Supported: DSD 256 / 11.3MHz | PCM 384kHz | MQA Full Decoder
- DAC: Bit-Perfect DSD & DXD DAC by Burr Brown
- Outputs: BAL 4.4mm | S-BAL 3.5mm
- Power Output
- BAL: 400mW @ 32Ω | 6.3V @ 600Ω
- S-BAL: 280mW @ 32Ω | 3.2V @ 600Ω
- Output Impedance: ≤ 1Ω (BAL/S-BAL) | w/ iEMatch on: ≤ 4.5Ω
- SNR + DNR: BAL < 109dBA @ 0dBFS | S-BAL <103dBA @ 0dBFS
- THD+N
- BAL: < 0.006% (360mW/2V @ 600Ω)
- S-BAL: < 0.01% (100mW/1.27V @ 32Ω)
- Frequency Response: 20Hz - 45kHz (-3dB)
- Battery: Lithium-polymer 2200mAh approx. 8 hours
- Power System: charge via USB-C | BC V1.2 compliant up to 1000mA charging current
- Power Consumption: < 2W idle, 4W max
- Dimensions: 4.0" x 2.8" x 0.6"
- Net weight: 0.3 lbs (137g)

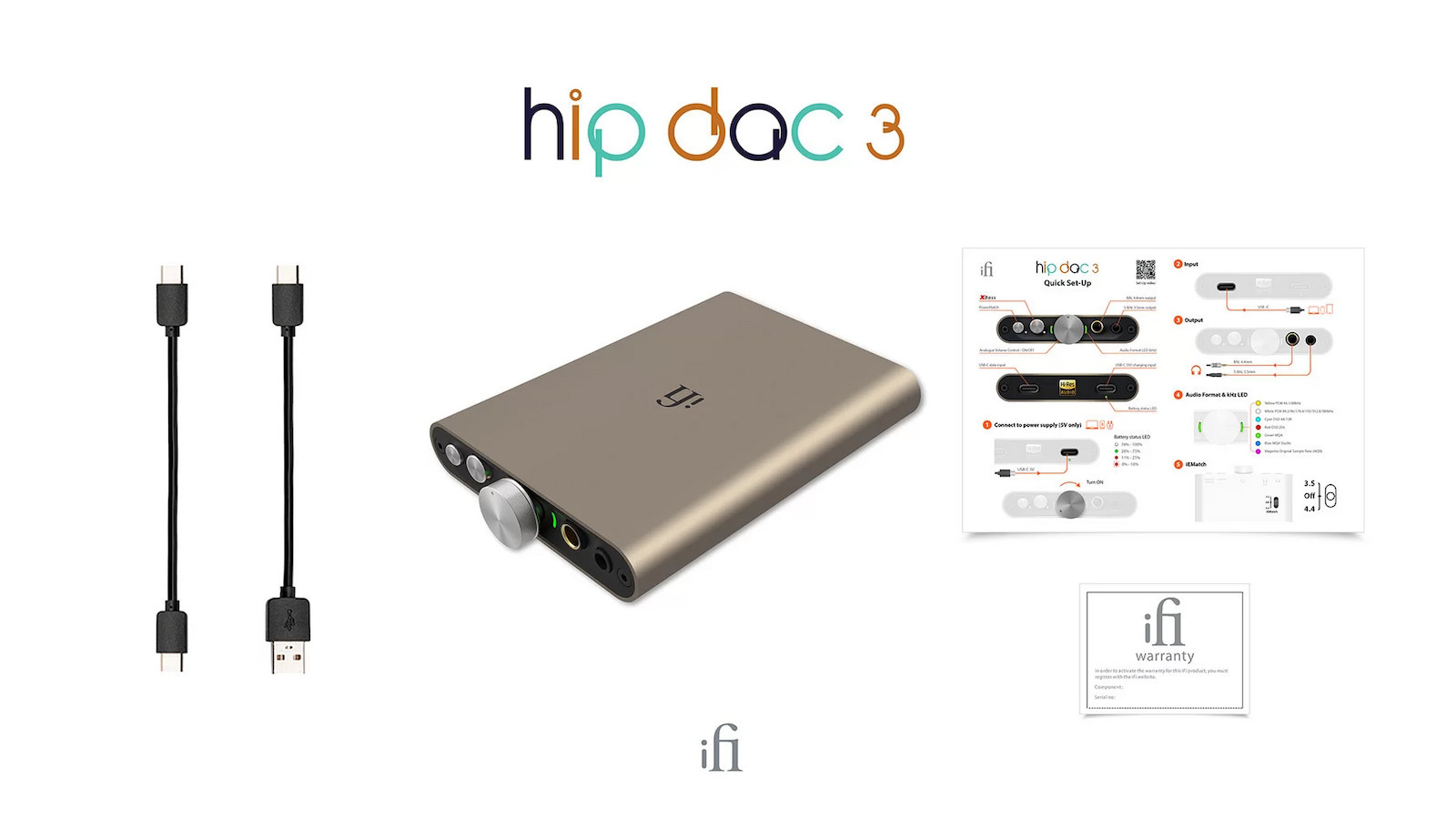

In the Box
- hip-dac 3
- USB-A to USB-C cable
- USB-C to USB-C cable
