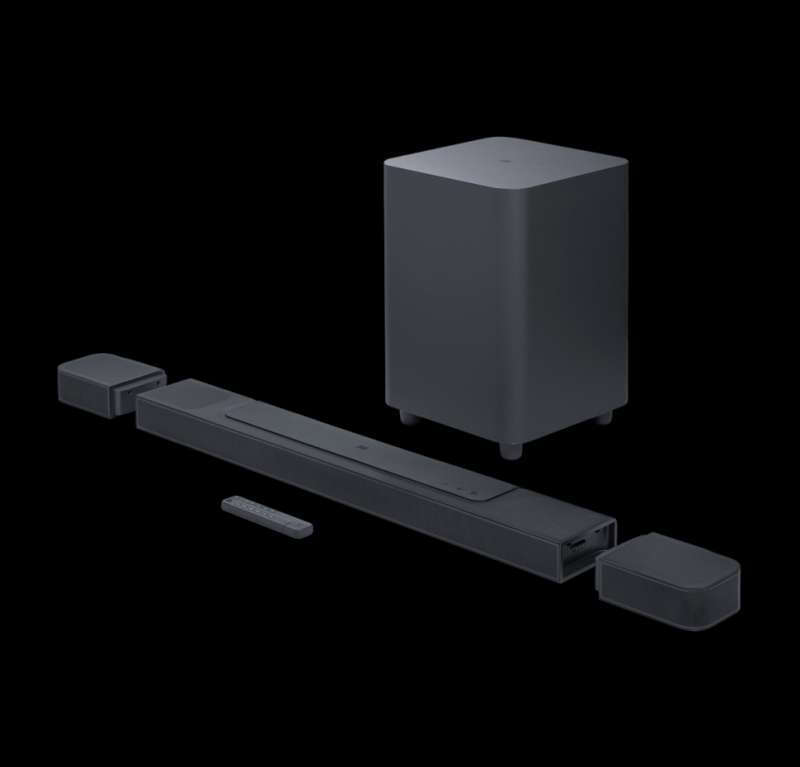

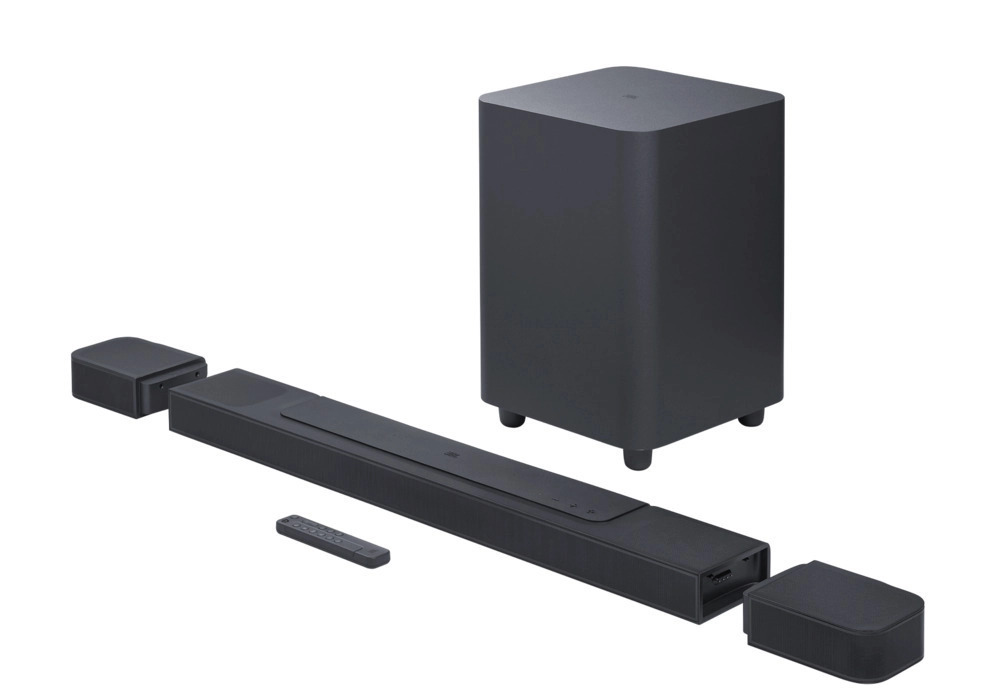

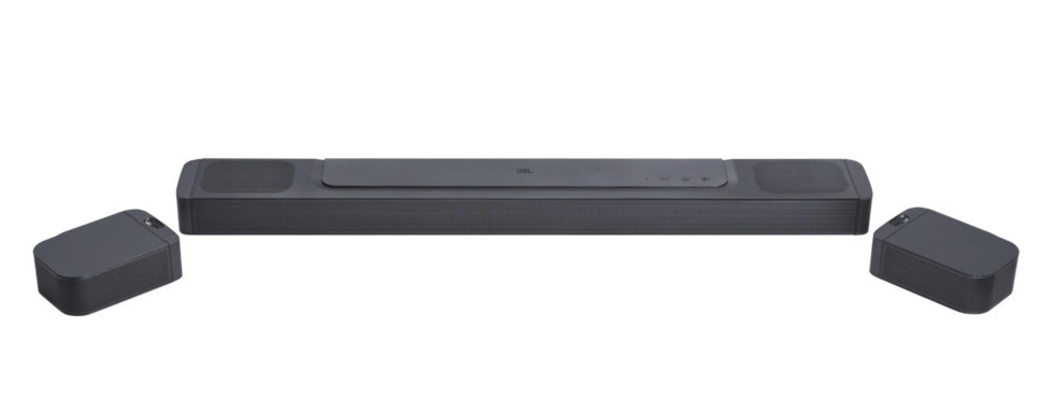

Technical specifications: General specification Model: BAR 1000 (soundbar unit), BAR 1000 SURROUND (detachable speaker) BAR 1000 SUB (subwoofer unit) Sound system: 7.1.4 channel Power supply: 100 - 240V AC, ~ 50/60Hz Total speaker power output (Max @THD 1%): 880W Soundbar output power (Max @THD 1%): 440W Surround speaker output power (Max @THD 1%): 2x 70W Subwoofer output power (Max @THD 1%): 300 W Soundbar transducer: 5 x (46x90)mm racetrack drivers, 3x 0.75” (20mm) tweeters, 2 x 2.75” (70mm) up-firing full-range drivers Surround speaker transducer: 0.75” (20mm) tweeters, 2.75” (70mm) up-firing full-range drivers Subwoofer transducer: 10” (260mm) Networked standby power: < 2.0W Operating temperature: 0°C - 45°C Lithium battery: 3.635V, 3283mAh HDMI specification HDMI video input: 3 HDMI video output (with Enhanced Audio Return Channel, eARC): 1 HDMI HDCP version: 2.3 HDR pass-through: HDR10, Dolby Vision Audio Specification Frequency response: 33Hz - 20kHz (-6dB) Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.) USB specification USB port: Type A USB rating: 5V DC, 0.5A Supported file format: MP3 MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 MP3 sampling rate: 16 - 48 kHz MP3 bitrate: 80 - 320 kpbs Wireless specification Bluetooth version: 5.0 Bluetooth profile: A2DP 1.2, AVRCP 1.5 Bluetooth transmitter frequency range: 2400MHz - 2483.5MHz Bluetooth transmitter power: <15dBm (EIRP) Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) 2.4G Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels) 2.4G Wi-Fi transmitter power: < 20dBm (EIRP) 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz 5G Wi-Fi transmitter power: 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.47 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP) 2.4G wireless frequency range: 2406 - 2474MHz 2.4G wireless power: <10dBm (EIRP) Dimensions Main soundbar dimensions (W x H x D): 884 x 56 x 125 mm / 34.8” x 2.2” x 4.9” Detachable surround speaker dimensions (each) (W x H x D): 155 x 56 x 125 mm / 6.1” x 2.2” x 4.9” Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm / 12” x 17.3” x 12” Soundbar weight: 3.7 kg / 8.2 lbs Detachable surround speaker weight (each): 1.4kg / 3.1 lbs Subwoofer weight: 10 kg / 22 lbs Packaging dimensions (W x H x D): 1000 x 375 x 475 mm/ 39.4” x 14.8” x 18.7” Packaging Weight: 19.4 kg / 42.7 lbs What’s in the box: 1x Main soundbar 2x Detachable wireless surround speakers 1x Wireless subwoofer Remote control with 2 x batteries Power cords (up to 8pcs depending on region SKUs) 1 x HDMI cable 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws 4 x Side caps Quick start guide Safety instruction and Warranty card Wall mount template © 2022 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners. Features, specifications and appearance are subject to change without notice. Dolby, Dolby Vision, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012–2021 Dolby Laboratories. All rights reserved. The Wi-Fi CERTIFIED™ Logo is a certification mark of the Wi-Fi Alliance®. Google and Chromecast built-in are trademarks of Google LLC. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards. Apple, and AirPlay are trademarks of Apple Inc., registered in the U.S. and other countries. To control this AirPlay 2–enabled speaker, iOS 13.4 or later is required. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, DTS:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED. Disclaimer: Some features require subscriptions or services not available in all countries F
