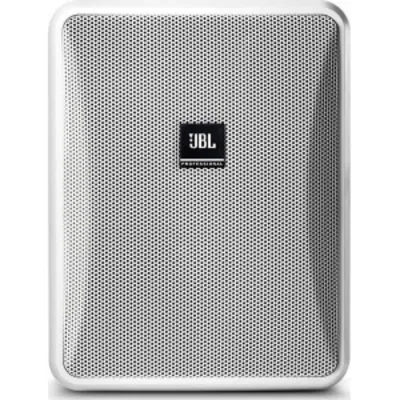

JBL Control 25-1 White TMX

Ηχείο 2 δρόμων, 5,25+0,75, 200W program, 8Ω ,100V & 70V , διασπορά 100°X100°, 60Hz-20kHz (-10dB), 116dB peak, προστασία υπερφόρτωσης, weather resistant, λευκό χρώμα. Συσκευασία 2 τεμ., με σύστημα ανάρτησης invisiball. Τιμολογείται ανά τεμ. (243H x 188W x 145D mm). Βάρος 3,4 Kg. Χαρακτηριστικά: Type: Frequency Range (-10 dB) Frequency Response (+/-3 dB): 85Hz - 17 kHz Power Rating: 200 W Continuous Program (2 hrs)  100 W (400W peak), Continuous Pink Noise (2 hrs) : Aluminium/Synthetic Resin 75 W (300W peak) Continuous Pink Noise (100 hrs): 27dB (1kHz) Maximum Input Voltage: 25.3 V RMS (2 hrs), 50.6 V peak Maximum SPL: 110 dB ave. Continuous Pink Noise (116 dB peak) Sensitivity: 90 dB, 1W/1m (ave. 100 Hz – 10 kHz) Coverage Angle: 100° x 100° Directivity Factor (Q): 6.04 (averaged 1kHz – 16kHz) Directivity Index (DI): 7.6dB (averaged 1kHz – 16kHz) Nominal Impedance: 8 ohms (THRU setting) Crossover Type: 2nd order low-pass, 3rd order high-pass Transformer Taps: 70V: 30W, 15W, 7.5W, 3.7W  100V: 30W, 15W, 7.5W : 25µH (1kHz) Insertion Loss <0.94 dB at any tap setting : 12Ω Thru Setting: 8Ω nominal: 35×10-6cm/dyne Recommended Protective: 9×10-6cm/dyne (100Hz) High-Pass: 60 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings). Low Frequency Driver: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure. High Frequency Driver: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
