Highly efficient: 105 dB 1W / 1M
Fully horn-loaded, full range, three-way system with a patented folded-horn 15" woofer delivers powerful low frequencies
2” midrange and 1” tweeter compression drivers.
Capable of extreme output levels with ultra low distortion and astonishing dynamic range
Available in a high-quality Cherry, Walnut or Black Ash wood veneer finish

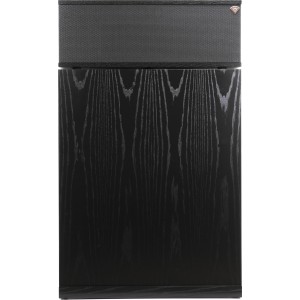

Audio pioneer and company founder Paul W. Klipsch launched the Klipschorn loudspeaker in 1946 to enable people, for the first time ever, to experience the power, detail and emotion of a live performance at home. Commonly called a corner-horn speaker, the remarkably uncommon Klipschorn includes a highly efficient horn loaded tweeter and midrange compression driver. Its patented folded-horn 15" woofer delivers powerful low frequencies.
Considered a watershed industry event, the introduction of the Klipschorn set the standard for high sensitivity, wide dynamic range, low distortion, and smooth frequency response. These principles, which drive the creation of every single Klipsch loudspeaker, are what make the Klipschorn as sought after today as it was decades ago.
As the only speaker in the world to be in continuous production for 60 years, the Klipschorn has remained relatively unchanged since its inception. In 2005, the company made some minor cosmetic and functional revisions to this legendary speaker, including the elimination of the inset collar, or spacer, between the upper and lower cabinets for a cleaner aesthetic appearance. A horizontal wall seal was added to improve the low frequency horn's response accuracy.
Available in a cherry, walnut or black ash wood veneer finish, the Klipschorn reflects a level of high-quality workmanship that will never go out of style.
FREQUENCY RESPONSE
33Hz-17kHz(+-) 4dB
POWER HANDLING
100 w max continuous (400 w peak)
SENSITIVITY
105dB @ 1watt/1meter
MAX ACOUSTIC OUTPUT
121dB SPL
NOMINAL IMPEDANCE
8 ohms
CROSSOVER FREQUENCY
HF: 4500 Hz MF: 450 Hz
MAXIMUM ACOUSTIC OUTPUT
121dB SPL
TWEETER
K-77-F 1" (2.54cm) Phenolic diaphragm compression driver
MIDRANGE
K-55-X 2" (5.08cm) Phenolic diaphragm compression driver
MID FREQUENCY HORN
Exponential Horn
WOOFER
K-33-E 15" (38.1cm) Fiber-composite cone / horn-loaded with a trihedral exponential folded
ENCLOSURE MATERIAL
Birch Plywood & MDF
ENCLOSURE TYPE
Fully horn-loaded
INPUT CONNECTIONS
5-way binding posts / Bi-wire capable
DIMENSIONS
50 .75” H (128.91 cm) x 31.25” W (79.38 cm) x 28.25” D (71.75 cm)
WEIGHT
175 lbs unboxed
FINISHES
Walnut Lacquer, Cherry Lacquer, Black Lacquer
BUILT FROM
1946
