Magnetar UDP900 MKII Universal 4K Ultra HD Blu-Ray Player
Κατόπιν Παραγγελίας
PS1761990682
6975436280040
-
Magnetar
Περιγραφή
The Magnetar UDP900 MKII is ideal for audio-first home cinema systems and hi-fi environments where both premium sound and versatile format support are essential. Its dual ESS9038PRO DACs and completely redesigned analogue stage deliver exceptional clarity across stereo and multi-channel output. The player also supports advanced audio formats via USB and HDMI, ensuring smooth integration into high-end systems. With refined internal wiring and professional-grade connectors, it’s built for serious users who expect consistent, high-fidelity results.
Full Description
Dual DAC Design
At the centre of the UDP900 MKII is a redesigned audio platform built around two ESS9038PRO DACs. This dual-DAC layout handles stereo and multi-channel output independently, improving detail and separation across all channels. Balanced XLR and unbalanced RCA outputs are available for stereo systems, while 7.1 RCA outputs serve full surround setups. With distortion levels as low as 0.0005% and a signal-to-noise ratio up to 130dB, the analogue stage delivers powerful, transparent sound that reveals subtle textures and dynamics in music, film soundtracks and everything in between.
Advanced USB and HDMI Audio
The UDP900 MKII has been upgraded with high-resolution USB audio input, supporting PCM768 and DSD512 for true audiophile-grade playback. A newly implemented USB 3.0 HUB chip with isolated power improves compatibility and ensures clean, stable data transfer from external storage devices. HDMI audio benefits from TMDS retiming technology, which reduces jitter and improves clarity, especially with immersive audio formats. Whether you’re using USB for studio-grade music files or HDMI for a home cinema setup, this player delivers clean, high-precision digital audio across all output types.
Robust Build

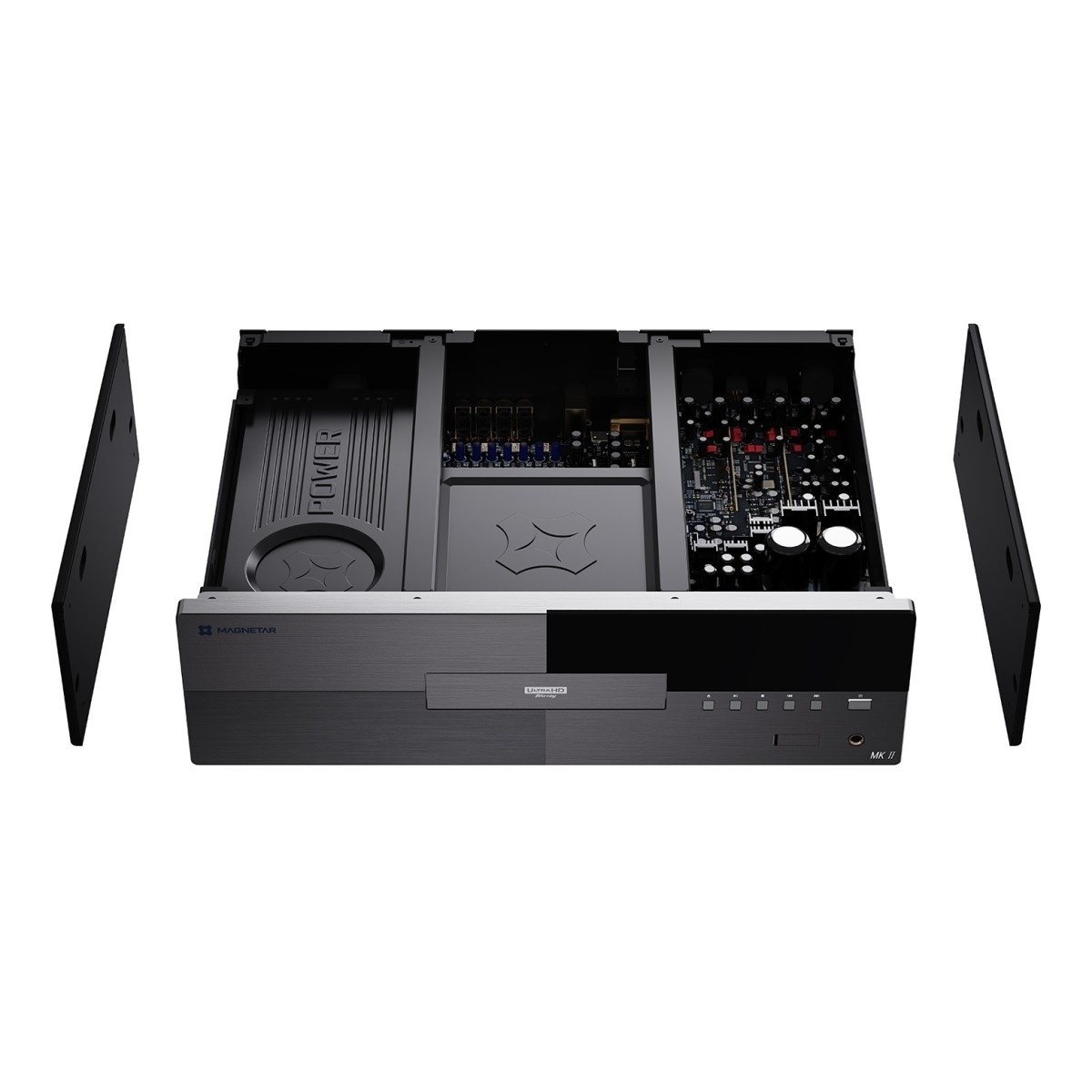

Internally wired with copper-core cabling and fitted with Amphenol and JST connectors, the UDP900 MKII is built for long-term signal integrity and performance. It plays a full range of disc formats including UHD Blu-ray, SACD, DVD-Audio and standard CD, making it a flexible solution for physical media libraries. Smart home users will benefit from Control4 and Crestron integration, along with Wake-on-LAN for remote operation. Whether you're focused on reference-level audio or full cinema control, the UDP900 MKII combines build quality and versatility in one high-end unit.
Specifications
Technical Specifications
| HDR10+ | Supported |
|---|---|
| Dolby Atmos | Supported |
| SACD | Supported |
Disc & Media Support
| Disc formats | UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE |
|---|

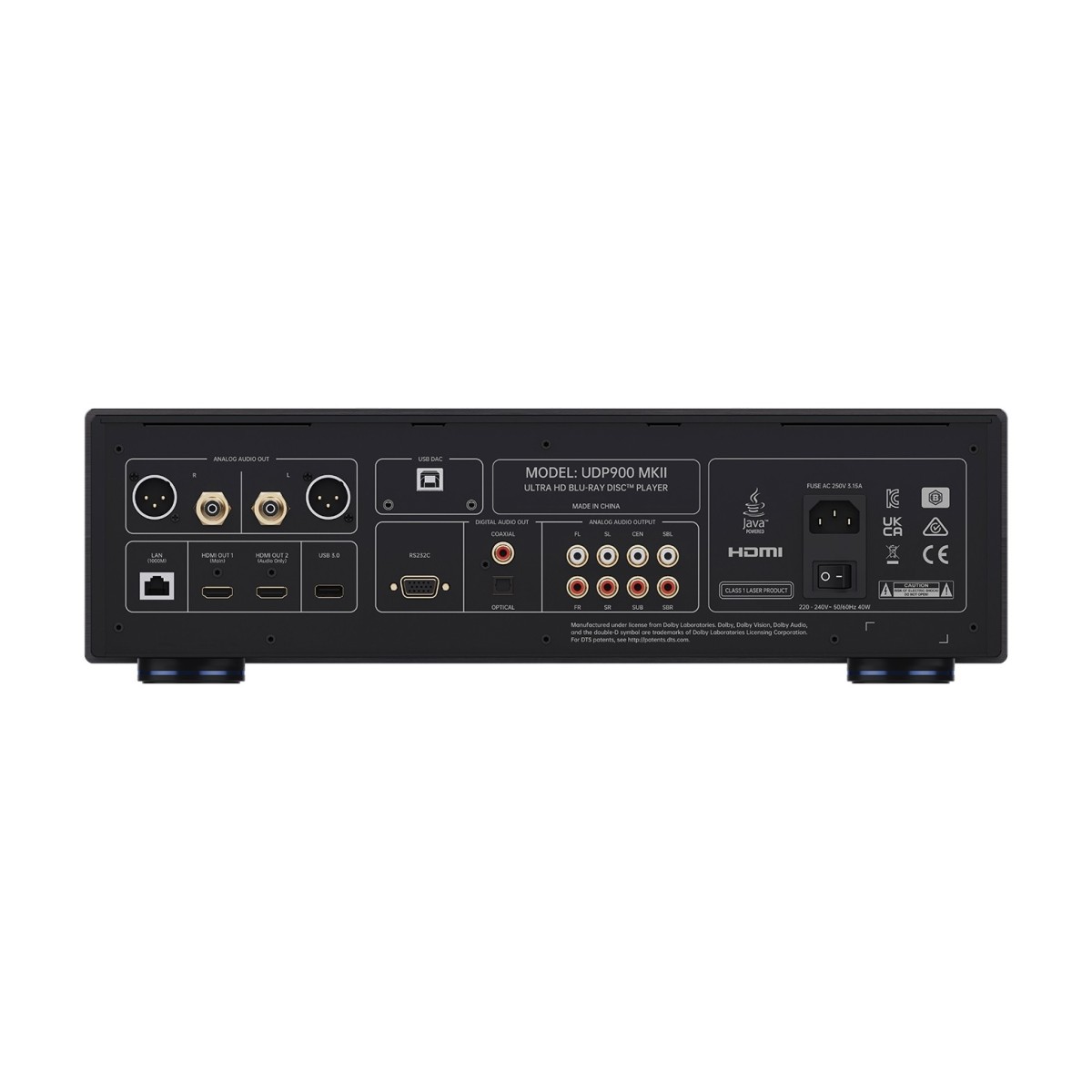

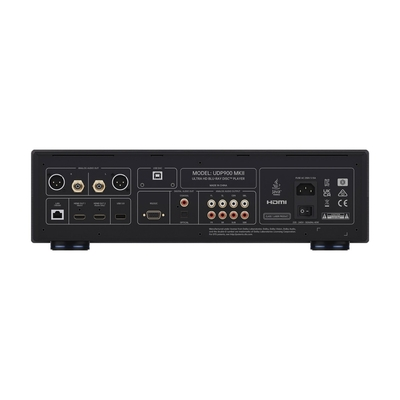

Outputs
| Analog Audio Output | 7.1 channel RCA, 2 channel RCA and Balanced XLR |
|---|---|
| Digital Audio Output | Optical, Coaxial, HDMI |
| HDMI audio | Up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream |
| HDMI video | UHD 23.976/25/30/50/59.94/60Hz, 1080 I/P, 720P, 576I/P, 480I/P, Source Direct |
Analog Audio Characteristics (2 Channel)
| Frequency Range | 20Hz ~ 50kHz (±0.01dB) |
|---|---|
| Signal-to-noise ratio | ≥120dB (RCA)
≥130dB (XLR) |
| Total Harmonic Distortion + Noise | ≤0.0005% |
| Output Level | (RCA) ≤3Vrms
(XLR) ≤6Vrms |
| Dynamic Range | ≥120dB (RCA)
≥130dB (XLR) |
| Channel Separation | ≥110dB (RCA)
≥130dB (XLR) |
Analog Audio Characteristics (7.1 Channel)
| Frequency Range | 20Hz ~ 50kHz (±0.01dB) |
|---|---|
| Signal-to-noise ratio | ≥120dB |
| Total Harmonic Distortion + Noise | ≤0.0005% |
| Output Level | ≤3Vrms |
| Dynamic Range | ≥120dB |
| Channel Separation | ≥110dB |
General Specification
| Power supply | AC 110-120V ~ 50/60Hz / AC 220-240V ~ 50/60Hz |
|---|---|
| Power consumption | <40W, Standby <0.5W |
| Dimensions (W x D x H) | 445 x 321 x 133 mm |
| Weight | 15.4kg |
| Operating Temperature | 5°C ~ 35°C (41°F ~ 95°F) |
| Operating Humidity | 15% ~ 75% |
Product Details
| Product Code | MAGUDP900MKII |
|---|
