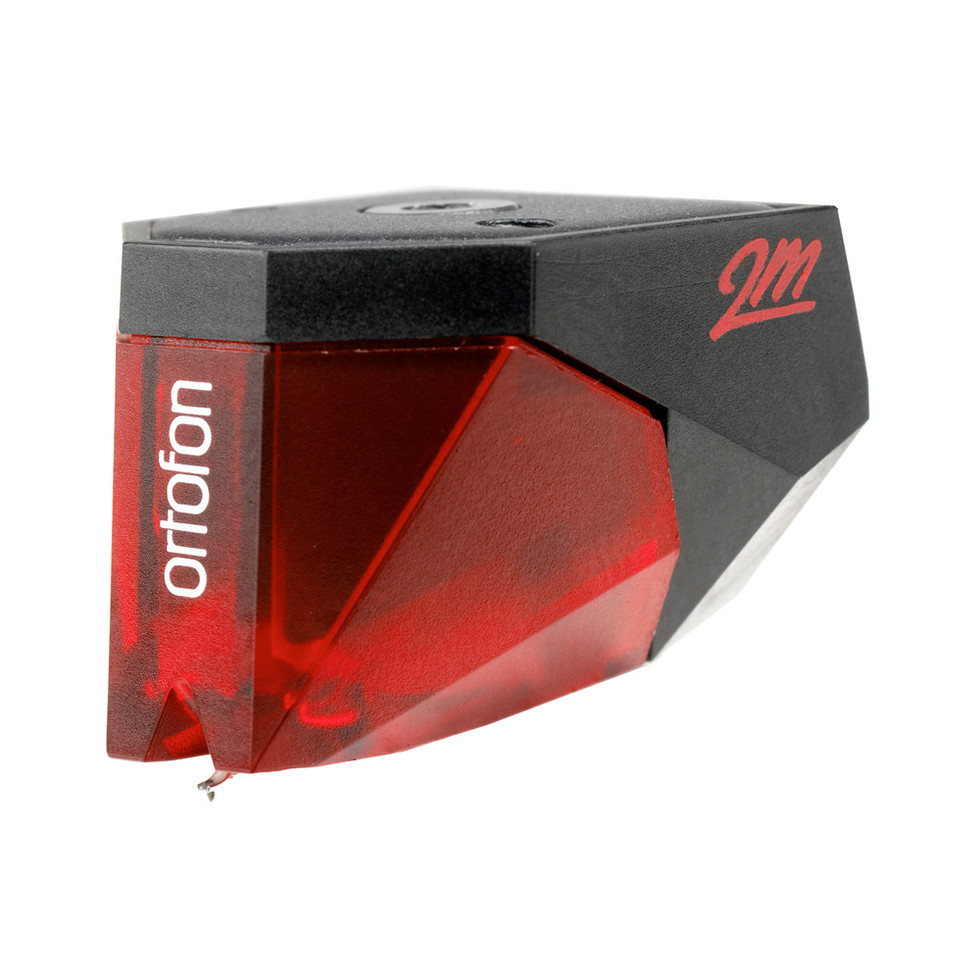

Ortofon 2M RED Κεφαλή με Βελόνα.

The new 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable! Output voltage at 1000 Hz, 5cm/sec. 5,5 mV Channel balance at 1 kHz 1,5 dB - Channel separation at 1 kHz 22 dB Channel separation at 15 kHz 15 dB Frequency range at - 3dB 20-22.000 Hz - Frequency response 20-20.000 Hz + 3 / - 1 dB Tracking ability at 315Hz at recommended tracking force 70 µm Compliance, dynamic, lateral 20 µm/mN Stylus type Elliptical - Stylus tip radius r/R 8/18 µm Tracking force range 1,6-2,0g (16-20 mN) - Tracking force, recommended 1,8 g (18 mN) - Tracking angle 20° Internal impedance, DC resistance 1,3 kOhm - Internal inductance 700 mH Recommended load resistance 47 kOhm - Recommended load capacitance 150-300 pF Cartridge colour, body/stylus Black/Red - Cartridge weight 7,2 g Replacement stylus unit 2M Red
