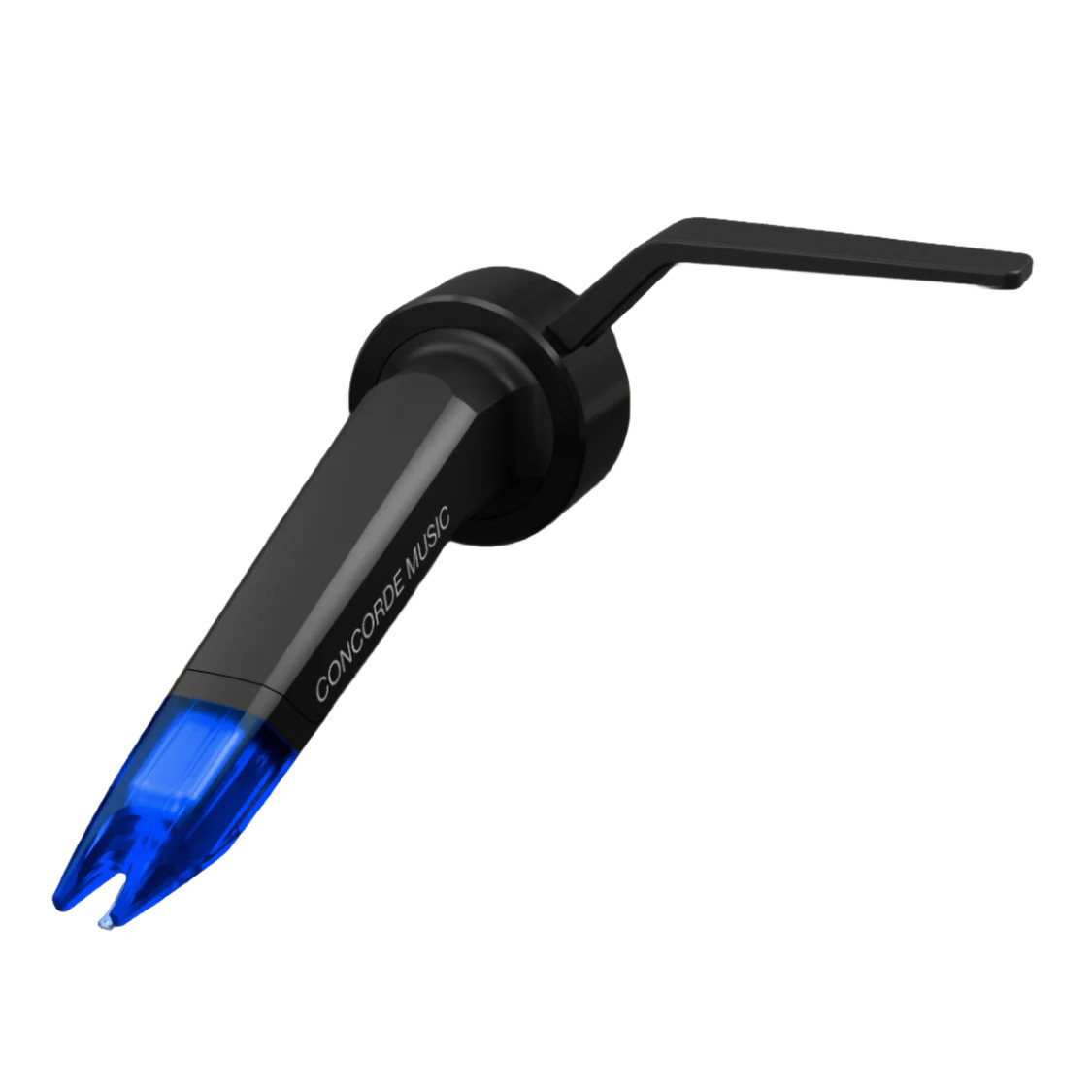

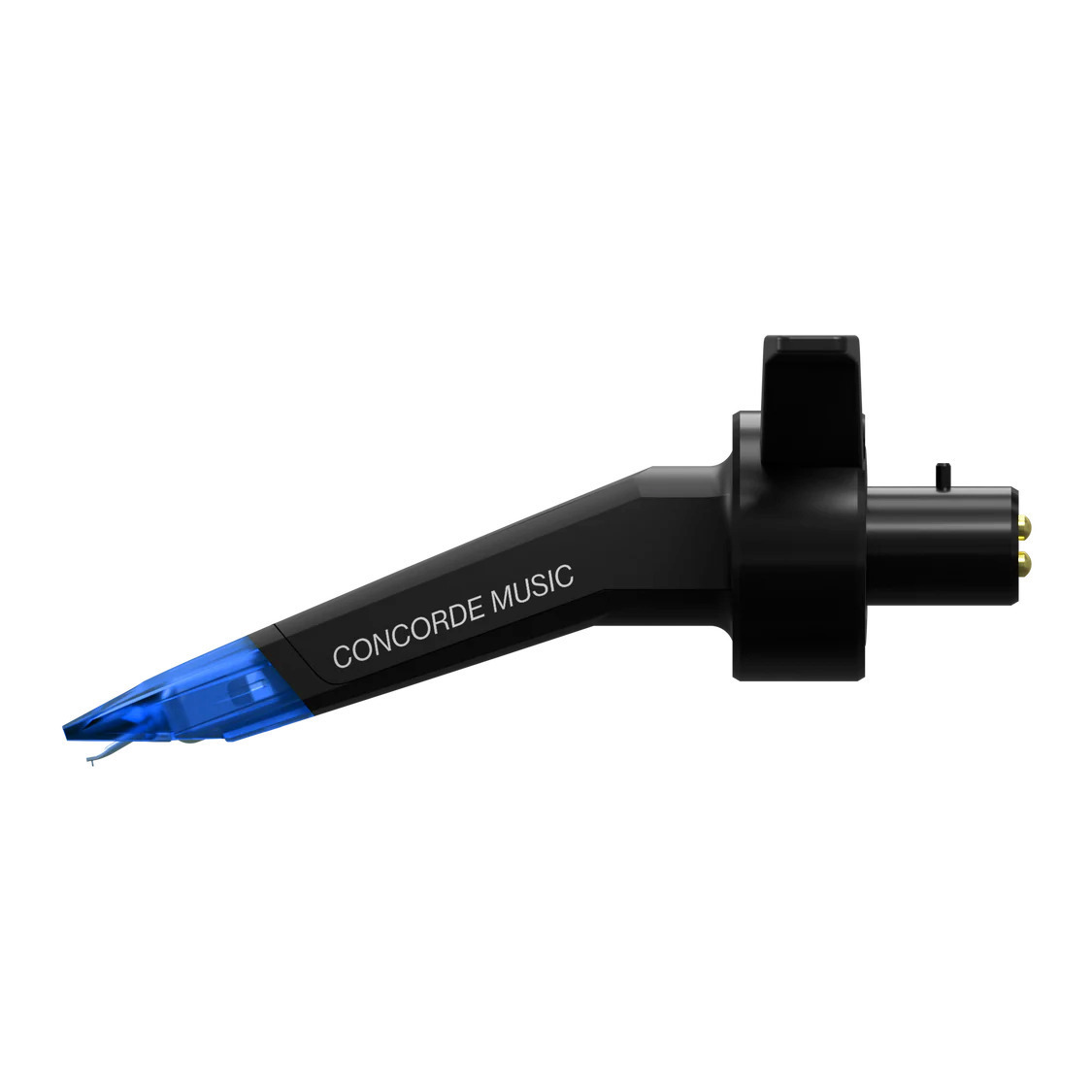

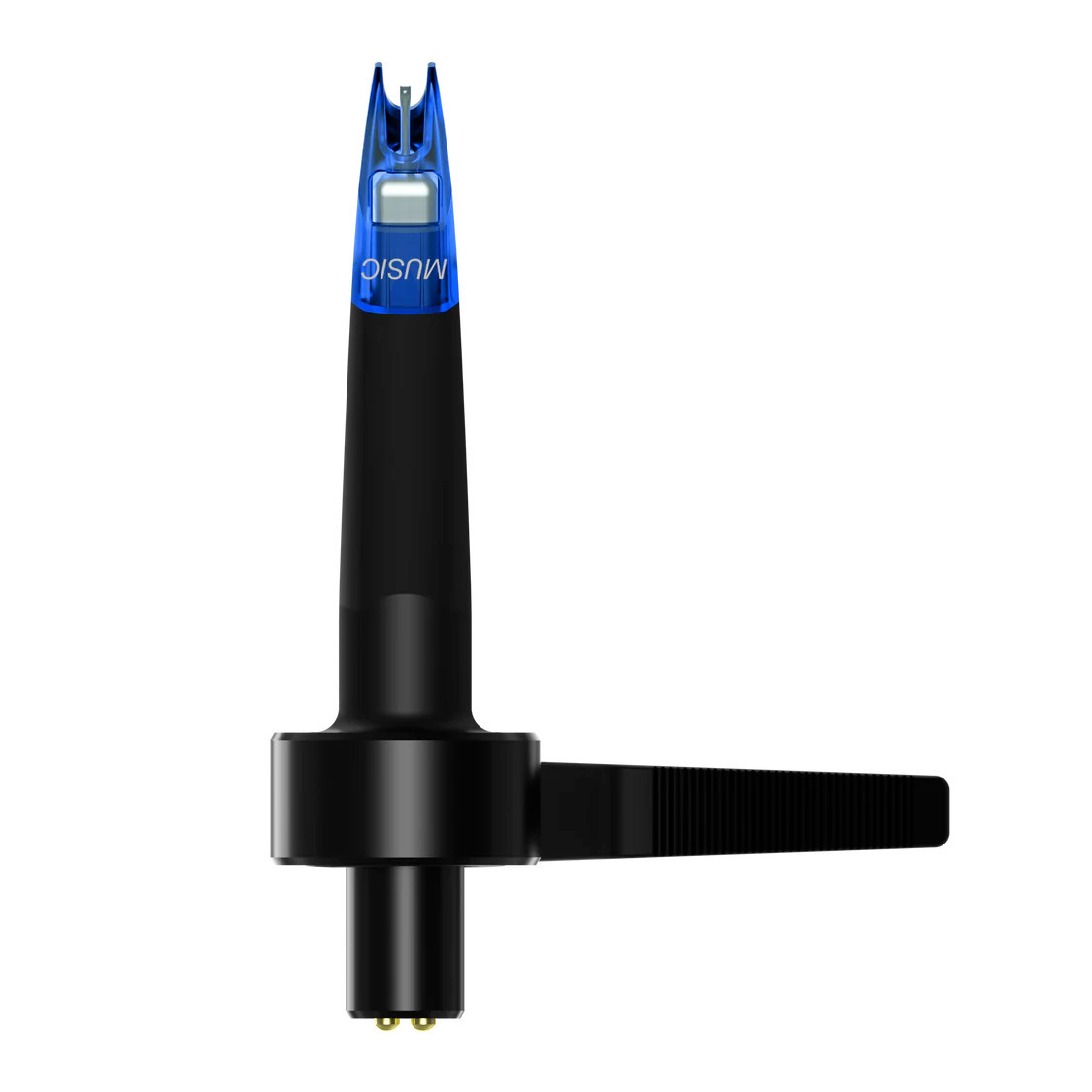

Ortofon Concorde Music Blue

Απολαύστε την αποκαλυπτική και καθαρή αναπαραγωγή ήχου με το Concorde Music Blue, που διαθέτει γυμνή ελλειπτική γραφίδα σε αλουμινένιο πρόβολο και προσφέρει μια αναβάθμιση από το Concorde Music Red. Απολαύστε απρόσκοπτες αναβαθμίσεις σε όλη τη σειρά, από το Concorde Music Blue έως το Concorde Music Black LVB 250, απλώς αντικαθιστώντας τη γραφίδα.





















Award winning cartridge design

Iconic design

Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio.

Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in
the audio industry.



Stylus

The Concorde Music Blue, featuring a Nude Elliptical stylus on an Aluminum cantilever, offers an upgrade from the Concorde Music Red. Nude diamonds, weighing less than their tipped counterparts, enhance responsiveness, detail, and reduce distortion.

Enjoy seamless upgrades throughout the series, from the Concorde Music Blue to the Concorde Music Black LVB 250, simply by replacing the stylus.



Unique in-house rubber production

Rubber suspension

A crucially important and vital part of a phono cartridge overall performance is the stylus rubber suspension. Exclusive Ortofon rubber compounds are used for the stylus suspensions in the Concorde Music Blue, carefully produced at the inhouse rubber production, and developed by the research and engineering team at Ortofon for brilliant performance.

Precise and dynamic sound image

Coil system



The Concorde Music features Ortofon's quad-coil generating system with four split pole pins. Silver-plated oxygen-free copper is chosen for the quad-coil system, along with four Ortofon split pole pins.

This results in exceptional channel balance and separation, delivering precise and dynamic sound. With a 6 mV output, it offers lifelike sound with exceptional clarity and fidelity, capturing every detail.









Perfect fit for S-shaped tonearms

Compatibility

Installing the Concorde Music cartridge on your turntable is easy and straightforward; no tools are required, making it hassle-free and convenient for all users. This is thanks to the bayonet connector, which makes it compatible with all S-shaped tonearms.





Full upgrade path

Upgradeability

The Concorde Music Blue can be replaced or upgraded with all Concorde Music styli, enabling an upgrade path throughout the entire series up to the Concorde Music Black LVB 250.

Upgrading the stylus is a simple task; simply pull the stylus off and replace it with the new one. Remember to keep the stylus guard on when installing the new stylus to keep the needle safe.



Specifications



• Channel balance at 1 kHz

  1.5 dB

• Output voltage at 1 kHz, 5cm/sec

  6mV

• Channel seperation at 1 kHz

  25 dB

• Channel seperation at 15 kHz

  15 dB

• Frequency response 20 Hz - 20 kHz

  +2 / -1 dB

• Tracking ability at 315Hz at recommended tracking force

  80 µm

• Compliance, dynamic, lateral

  15 µm/mN

• Stylus type

  Nude Elliptical diamond on Aluminium cantilever

• Stylus tip radius

  r/R 8/18 µm

• Tracking force, recommended

  1.8 g

• Tracking angle

  20°

• Internal impedance, DC resistance

  1.27 kΩ

• Cartridge colour

  Black/Blue

• Cartridge weight

  18 g

• Recommended load resistance

  47 kΩ

• Internal inductance

  815 mH

• Recommended load capacitance

  150-300 pF
