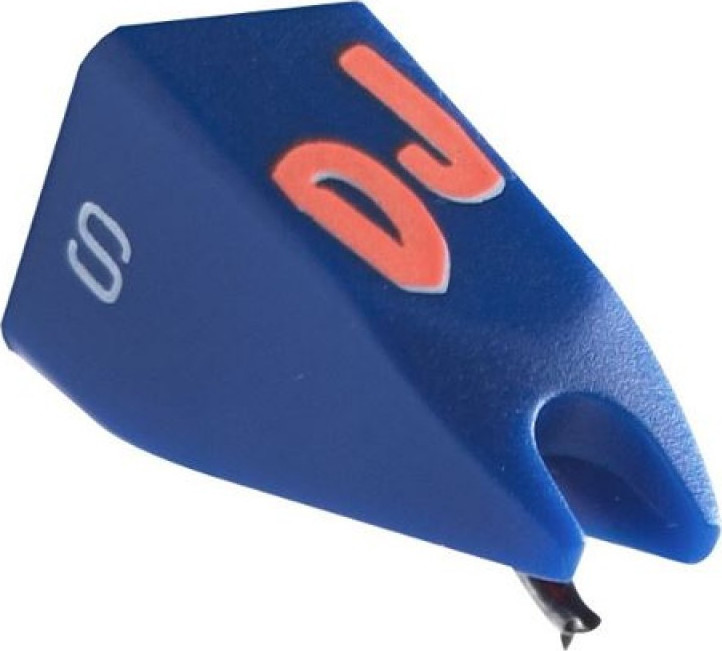

Ortofon DJ S Replacement Stylus.

Output voltage at 1000Hz, 5cm/sec........................................... 6 mV Channel balance at 1kHz...........................................................2 dB Channel separation at 1kHz......................................................23 dB Channel separation at 15 kHz...................................................15 dB Frequency range at -3dB...............................................20-20.000 Hz Frequency response......................................20-18.000 Hz 3dB/-2 dB Tracking ability at 315 Hz at recommmende tracking force..........80 μm Compliance, dynamic lateral...............................................9 μm/m N Stylus type........................................................................Spherical Stylus tip radius..................................................................R 18 μm Tracking force range...........................................2,0-4,0 g (20-40 mN) Tracking force recommended........................................3,0 g (30 mN) Tracking angle............................................................................20° Internal impedance DC resistance.......................................750 Ohm Internal inductance..............................................................450 mH Recommended load resistance...........................................47 kOhm Recommended load capacitance......................................200-600 pF Cartridge weight.....................................................................18,5 g Compatibility.....................................................................DJ Series
