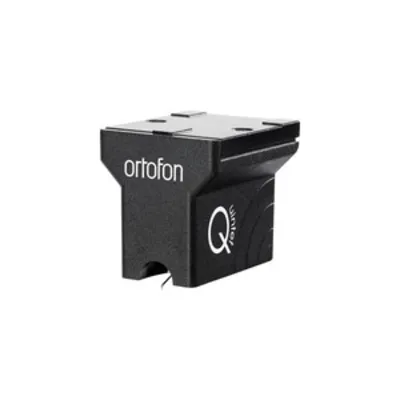

Ortofon MC Quintet Black

Technical data Output voltage at 1000 Hz, 5cm/sec. 0.3 mV Channel balance at 1 kHz < 1.0 dB Channel separation at 1 kHz > 23 dB Channel separation at 15 kHz > 15 dB Frequency range at - 3dB 20 - 25.000 Hz Frequency response 20-20.000 Hz +/- 1.5 dB Tracking ability at 315Hz at recommended tracking force *) 80 µm Compliance, dynamic, lateral 15 µm/mN Stylus type Nude Shibata on Boron cantilever Stylus tip radius r/R 6/50 µm Tracking force range 2.1-2.5 g (21-25 mN) Tracking force, recommended 2.3 g (23 mN) Tracking angle 20° Internal impedance, DC resistance 5 Ohm Recommended load impedance > 20 Ohm Cartridge body material ABS/Aluminium Coil wire material Aucurum  Cartridge colour Black Cartridge weight 9 g
