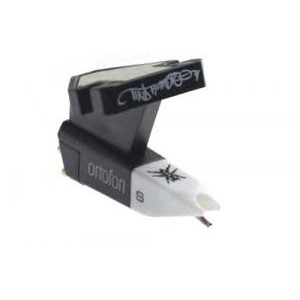

ORTOFON OM Q.BERT

Output voltage at 1000Hz, 5cm/sec: 11 mV Channel balance at 1kHz: 1,5 dB Channel separation at 1kHz: 22 dB Frequency range at -3dB: 20-20.000 Hz Frequency response: 20-20.000 Hz - 3 dB Tracking ability at 315 Hz at recommmende tracking force: 90 μm Compliance, dynamic lateral: 12 μm/m N Stylus type: Spherical Stylus tip radius: R 18 μm Tracking force range: 3,0 g (30 mN) Tracking force recommended: 4,0 g (40 mN) Tracking angle: 20° Internal impedance, DC resistance: 1.680 Ohm - Internal inductance: 920 mH Recommended load resistance: 47 kOhm Recommended load capacitance: 200-400 pF Cartridge weight: 5 g Replacement stylus unit: Q.Bert
