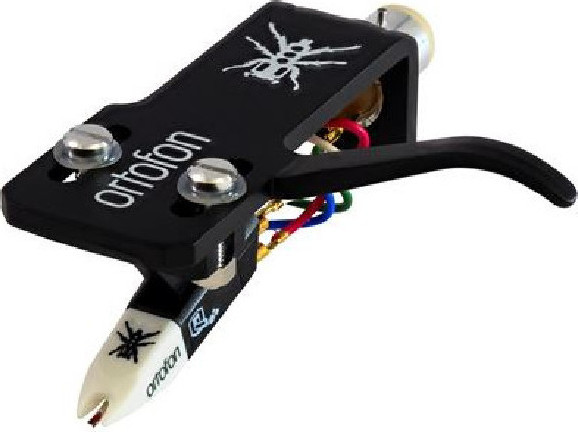

Το OM Q.Bert στο SH-4 Black Headshell είναι μια πρακτική και βολική λύση για τους πελάτες μας που επιθυμούν άμεση και εύκολη τοποθέτηση και αντικατάσταση στο σχήματος S ακουστικό.
Features:
• Universal mount fitting a wide range of S-shaped tonearms
• Ultra high output
• Low wear characteristics
• Q.Bert neon printed logo on the top of the headshell
Tailored specifically for scratch, the OM Q.Bert provides unrivaled tracking ability and sonic characteristics.
- Output voltage at 1000Hz, 5cm/sec. - 11 mV
- Channel balance at 1kHz - 1,5 dB
- Channel separation at 1kHz - 22 dB
- Frequency range at -3dB - 20-18.000 Hz
- Tracking ability at 315 Hz at recommmended tracking force - 980 μm
- Compliance, dynamic lateral - 12 μm/m N
- Stylus type - Spherical
- Stylus tip radius - R 18 μm
- Tracking force range - 2 - 4 g
- Tracking force recommended - 3 g
- Tracking angle - 20°
- Internal impedance, DC resistance - 1.680 Ohm
- Internal inductance - 920 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 200-400 pF
- OM cartridge weight incl. extra weight - 5 g
- Replacement stylus unit -
