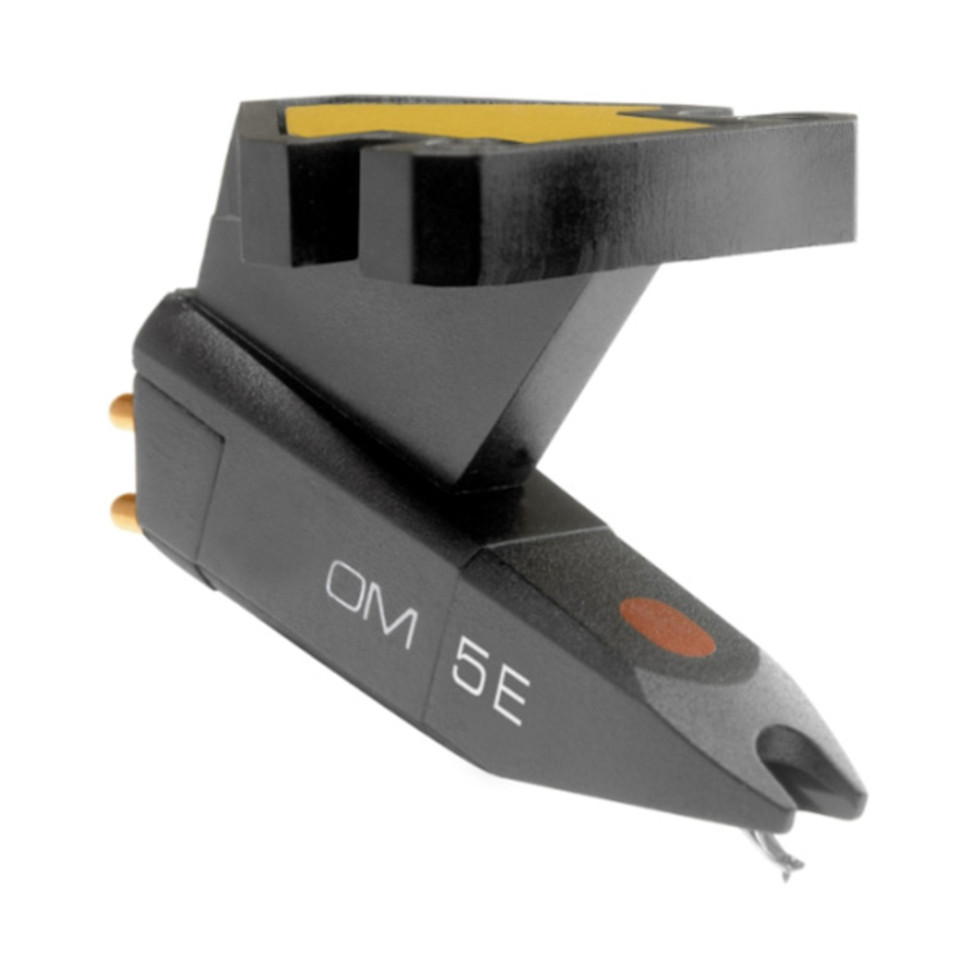

ORTOFON OM5E Κεφαλή με βελόνα.

Output voltage at 1000 Hz, 5cm/sec. 4 mV Channel balance at 1 kHz 2 dB - Channel separation at 1 kHz 22 dB - Channel separation at 15 kHz 15 dB Frequency range at - 3dB 20-25.000 Hz - Frequency response 20-20.000 Hz ± 2 dB Tracking ability at 315Hz at recommended tracking force *) 65 µm Compliance, dynamic, lateral 20 µm/mN Stylus type Elliptical - Stylus tip radius r/R 8/18 µm Tracking force range 1,5-2,0 g (15-20 mN) - Tracking force, recommended 1,75 g (17,5 mN) - Tracking angle 20° Internal impedance, DC resistance 750 Ohm - Internal inductance 450 mH Recommended load resistance 47 kOhm Cartridge colour, body/stylus Black/Black Cartridge weight 5 g Replacement stylus unit Stylus 5 E
