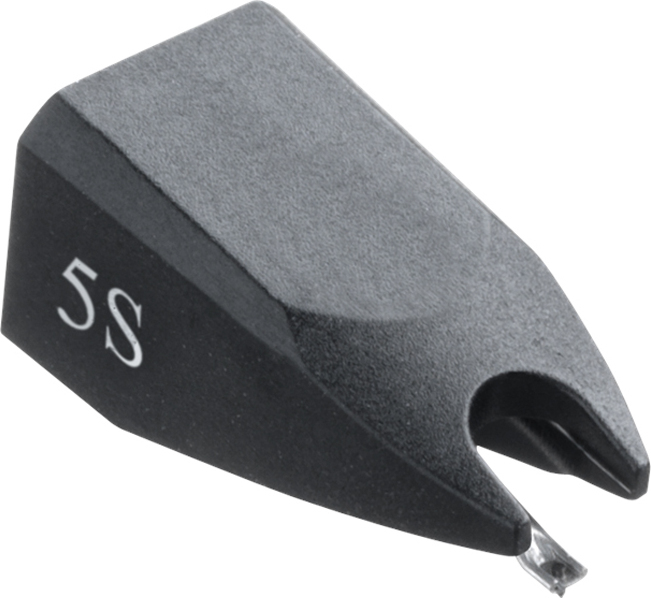

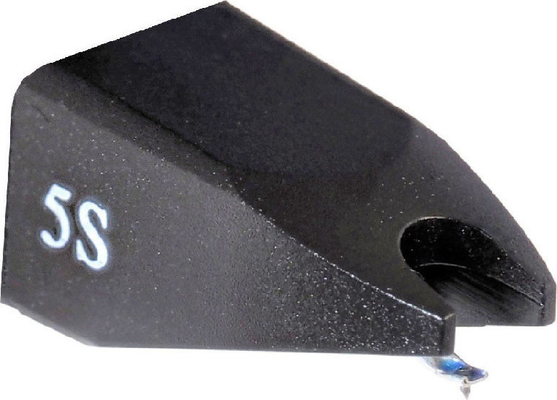

Ανταλακτική βελόνα για την κεφαλή της ortofon OM 5s

The OM 5S is a moving magnet cartridge for general purpose application

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.



If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.

The OM 5S features Spherical stylus, robust and economic solution for play back of vinyl records.

Technical specifications

Frequency range - 20-25.000 Hz

Frequency response - 20-25.000 Hz

Tracking ability at 315Hz at recommended tracking force *) - 65 µm

Compliance, dynamic, lateral - 20 µm/mN

Stylus type - Elliptical

Stylus tip radius - r/R 8/18 µm

*) Typical value

Equivalent stylus tip mass - 0.5 mg

Tracking force range - 1.5-2.0 g (15-20 mN)

Tracking force, recommended - 1.75 g (17.5 mN)

Tracking angle - 20°

Stylus colour - Black

Recommended for OM 5E, Super OM 5, OMP 5E, OMB 5E, OMT 5E, 5s
