• Fully balanced double mono design (Pulse Wave Modulation)
• Highly efficient conversion from mains to output power (92%)
• 2 ohms drive capability
• Tube buffer stage with reference quality
• SMD construction for shortest signal paths
• Low heat emission

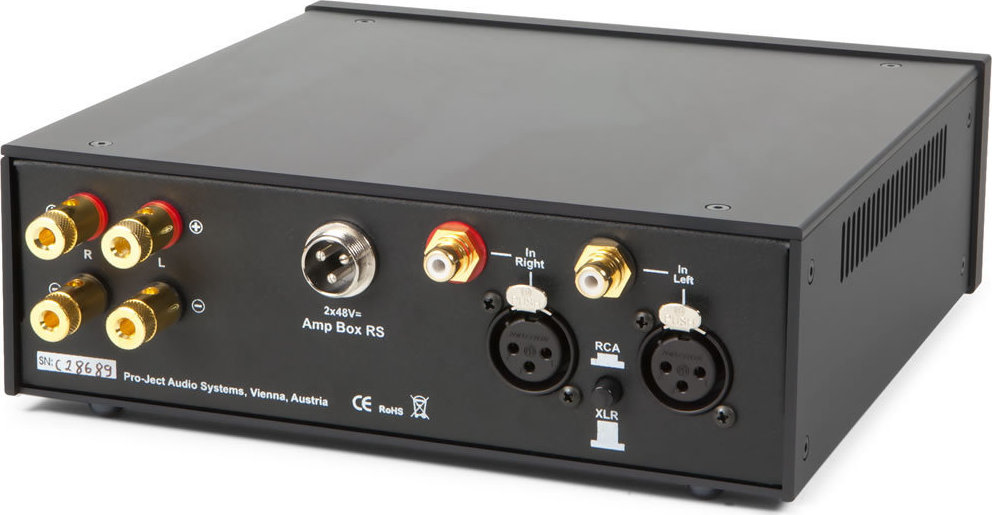

• Line level preamp inputs (RCA & XLR)
• Top-quality speaker terminals
• Luxury metal casing protects against vibration and interference
• Available in silver or black
• Optional Upgrade: Linear power supply PS Box RS for higher power otput and further improved sound qualit
|
|
| Power output |
2 x 110W / 180W @ 8 ohms / 4 ohms |
| |
(2x 180/250 W @ 8/4 ohms with PS Box RS) |
| |
2 ohms drive capability |
| Frequency response |
10Hz - 50kHz (+ 0dB, - 3dB) |
| Signal to noise ratio |
>-90dB (IEC -A) |
| THD |
< 0,1% @ 90W |
| Gain |
40dB |
| Input |
RCA & XLR-sockets |
| Input sensitivity |
1,5V |
| Input Impedance |
100kohm s |
| Speaker terminals |
4mm Ø Banana, spade or bare wire |
| Trigger 12V DC |
In&Out, 2-pole jack Ø 2,5mm |
| External power supply |
48V/2,5A DC;100 - 240V, 50/60Hz |
| Dimensions W x H x D |
208 x 72 x 194 (without sockets) |
