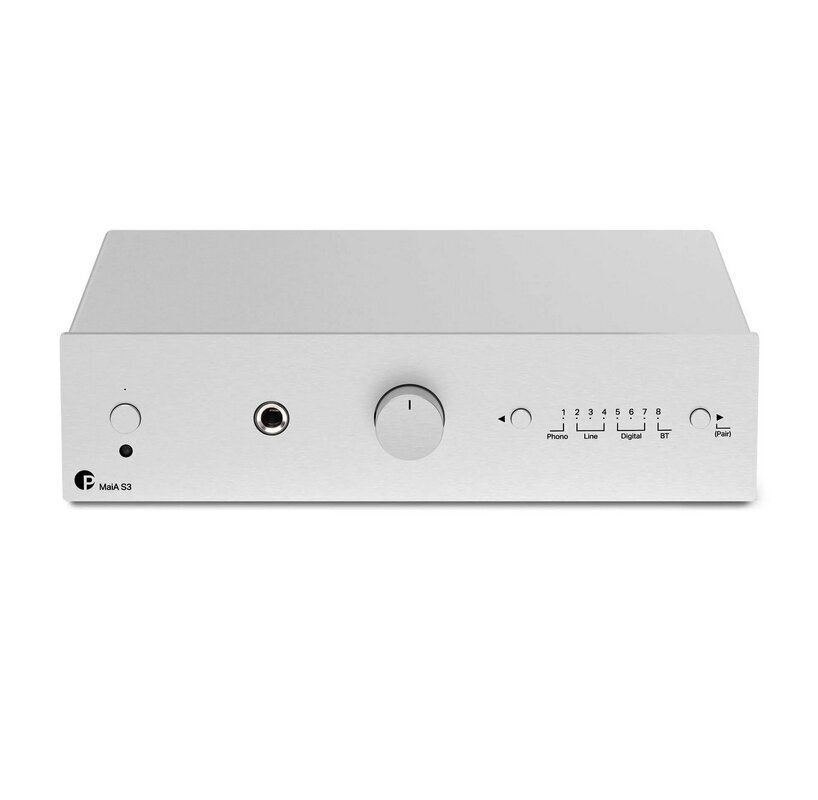

THE NEW MAIA S3

The MaiA S3 is the all in one solution for your hifi system. Not only the circuit design was reworked, also the case has been significantly changed and the MaiA S3 uses our new S3 case. Due to the bigger size we were able to improve the circuit board layout in terms of electromagnetical interference. With its 8 inputs you are ready for any kind of source device.

Versatile and Compact

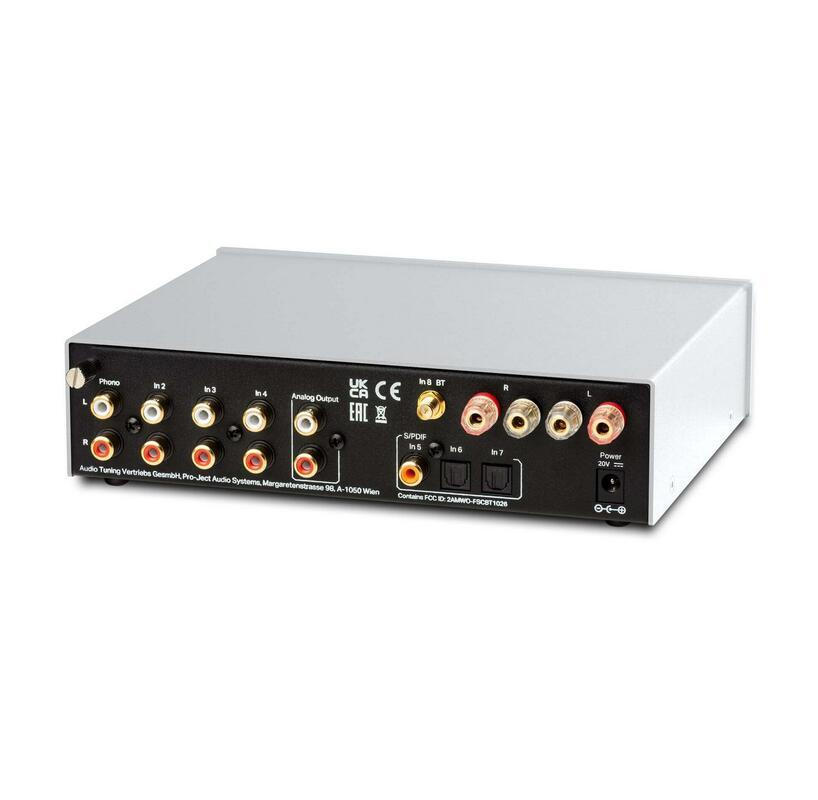

The MaiA S3 offers eight inputs. Ready for digital or analog sources, wired or wireless – you’re covered. The phono section can handle MM, MI, or high output MC cartridges. Hook up your tuner or any other analog device to one of the three line-level RCA inputs. The DAC section allows a coax and two optical connections. The high definition aptX™ HD Bluetooth 5.0 wireless input allows streaming your favorite music via your phone.

Technical Specifications

Power output: 2x 23W / 40W at 8 / 4ohms (1% THD)

Frequency response (20Hz - 20kHz): <-0,5dB @4ohm

Channel separation: - 69dB at 10kHz

Signal to noise ratio: 97dB (101dB-‚A‘ weighted) @4ohm

THD: < 0,04% at 10W / 4 ohms

Headphone amplifier: 2x 75mW at 32ohm (1%THD)

Headphone output: 6,3mm jack (16 – 600ohms)

Analogue inputs: 3x pair RCA, 1x phono MM (RCA)

Digital inputs: RCA coax, 2 x Toslink, Bluetooth 5.0 (aptX)

D/A-converter: Cirrus Logic CS4344 24bit/192kHz

Variable output: 1x pair RCA

Speaker connectors: 4mm Ø banana plugs, spades connectors or naked wire

Power supply: 20V/3A DC;100 - 240V, 50/60Hz

Standby Power consumption: < 0,5 watts

Dimensions WxHxD: 206x55x153 (176mm with sockets)

Battery remote control: 1 x CR2032 / 3V or CR2025 / 3V

Weight: 1070 g without power supply
