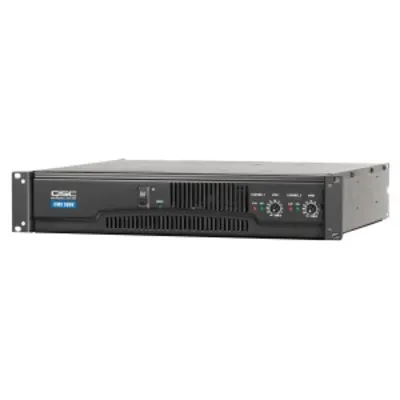

QSC CMX Series CMX300V

Επαγγελματικός τελικός ενισχυτής ήχου 2x300W RMS/4Ω, 2x430W RMS/2Ω,bridged (mono) 830W RMS/4Ω. Συνδέσεις εισόδου 3‐pin XLR, jack 6,3mm (balanced) και συνδέσεις εξόδου speakon και κλέμα για σύνδεση ηχείων. Διαθέτει πάνελ ρυθμίσεων με dip switches 10 θέσεων (clip limiter, filters, stereo/parallel inputs, bridge mode). Προστασίες turn on/off muting, acac coupling, coupling. Σταθερή απόδοση ανεξαρτήτως φορτίου.  20 Hz - 20 kHz: 10 dB below rated power: Less than 0.03% THD, 4 and 8 ohms 1.0 kHz and below: full rated power: Less than 0.03% THD, 4 and 8 ohms Damping Factor, 1 kHz and below: Greater than 300 at 8 ohms Input Impedance: 10k ohms unbalanced, 20k ohms balanced Input Clipping: 10 Vrms (+22 dB) Cooling: Continuously variable-speed fan, rear-to-front air flow Connectors, each channel: Input: Active balanced; barrier strip, XLR and 1/4" (6.3mm) TRS tip and XLR (pin 2 positive) Output: detachable terminal block and Neutrik™ Speakon™ Controls: Front: AC switch, Ch. 1 and Ch. 2 gain knobs Rear: 10-position DIP switch Indicators: Power-On: Green LED Signal: Green LED (1 per channel) Clip: Red LED (1 per channel) Protections: Amplifier Protection: Stable into reactive or mismatched loads Load Protection: On/off muting, AC coupling Power Requirements: 100, 120, 230 VAC, 50-60 Hz Dimensions: 3.5" H (2RU) x 19" W x 15.9" D (to rear support ears) (8.9 x 48.3 x 40 cm) Net Weight: 35 lbs (15.9 kg) Shipping Weight: 41 lbs (18.6 kg)
