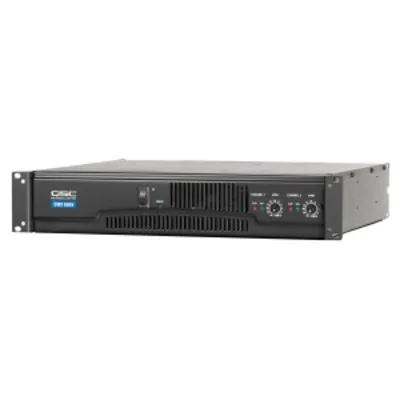

QSC CMX Series CMX500V

Επαγγελματικός τελικός ενισχυτής ήχου 2x500W RMS/4Ω, 2x700W RMS/2Ω, bridged (mono) 1400W RMS/4Ω, 600W/100V. Διαθέτει εισόδους 3‐pin XLR, jack 6,3mm (balanced) και εξόδους speakon και κλέμα. Επίσης διαθέτει πάνελ ρυθμίσεων με dip switches 10 θέσεων (clip limiter,filters, stereo/parallel inputs, bridge mode). Προστασίες turn on/offmuting, ac coupling. Σταθερή απόδοση ανεξαρτήτως φορτίου. 20 Hz - 20 kHz: 10 dB below rated power: Less than 0.03% THD, 4 and 8 ohms1.0 kHz and below: full rated power: Less than 0.03% THD, 4 and 8 ohmsDamping Factor, 1 kHz and below: Greater than 300 at 8 ohmsInput Impedance: 10k ohms unbalanced, 20k ohms balancedInput Clipping: 10 Vrms (+22 dB)Cooling: Continuously variable-speed fan, rear-to-front air flowConnectors, each channel:Input: Active balanced; barrier strip, XLR and 1/4" (6.3mm) TRS tip and XLR (pin 2 positive) Output: detachable terminal block and Neutrik™ Speakon™Controls:Front: AC switch, Ch. 1 and Ch. 2 gain knobsRear: 10-position DIP switchIndicators: Power-On: Green LEDSignal: Green LED (1 per channel)Clip: Red LED (1 per channel)Protections:Amplifier Protection: Stable into reactive or mismatched loadsLoad Protection: On/off muting, AC couplingPower Requirements: 100, 120, 230 VAC, 50-60 HzDimensions: 3.5" H (2RU) x 19" W x 15.9" D (to rear support ears) (8.9 x 48.3 x 40 cm)Net Weight: 40 lbs (18.2 kg)Shipping Weight: 46 lbs (20.9 kg)
