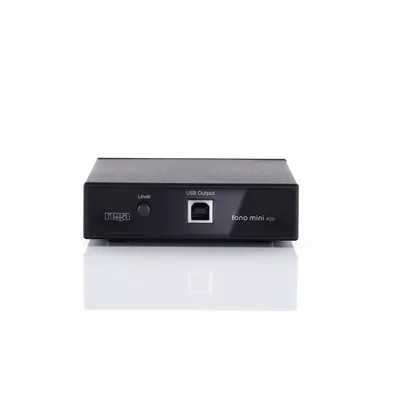

The Fono Mini A2D is a compact high quality moving magnet disc stage with a circuit based on our multi award winning Fono MM. Our best selling phono stage also includes a USB interface which allows you to transfer your beloved vinyl to digital audio files.

Analogue to Digital

The Fono Mini A2D is a high-quality phono pre-amplifier for use with any moving magnet cartridge. The addition of a USB interface allows you to easily transfer vinyl to your PC if required. The restyled Fono Mini A2D amplifier offers improved usability, exceptional performance and incredible value for money while promising to be a valuable addition to any hi-fi set up.

KEY FEATURES

• Compatible with all moving magnet cartridges
• USB output
• A2D functionality
• Compact custom case design
• Adjustable gain level to optimise performance

• To transfer vinyl to your PC, you will need to install a digital audio editor. Such software is widely available as a free download (such as Audacity), from the internet. This is a simple interface which allows monitoring of volume and balance whilst transferring your audio to your PC hard drive.



  Audio editing software includes a level meter which indicates the output level achieved when playing a piece of vinyl. You should adjust the output as necessary via the ‘Level’ control located on the front panel. Always take special note of record levels to ensure optimum recording quality.

• TECHNICAL SPECIFICATIONS

  Input Sensitivity

  5 mV for 500 mV Output

  Input Loading

  47 k +100 pF

  Maximum input level

  70 mV @ 1 kHz

  Output Impedance

  100 Ω

  Signal to noise ratio

  78 dBA ref 5 mV

  Power requirements

  24 V AC 85 mA

  Input for full scale digital output

  7.5 mV

  Dimensions (W × H × D)

  102 × 30 × 125 mm

  Sample rate

  16bit 44.1kHz (48kHz max) when transferring files via USB.
