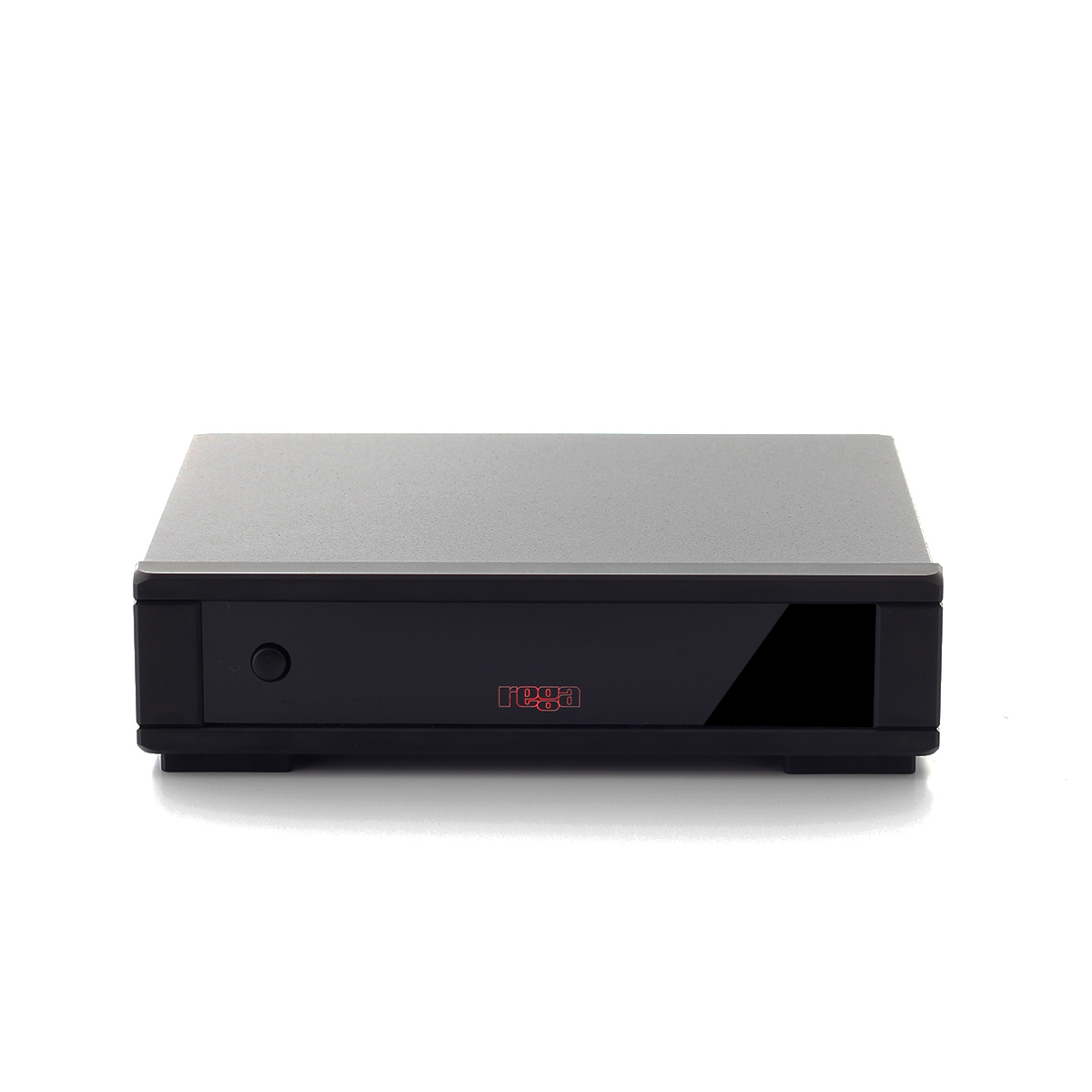

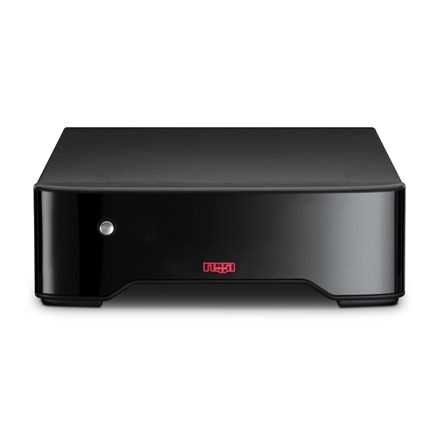

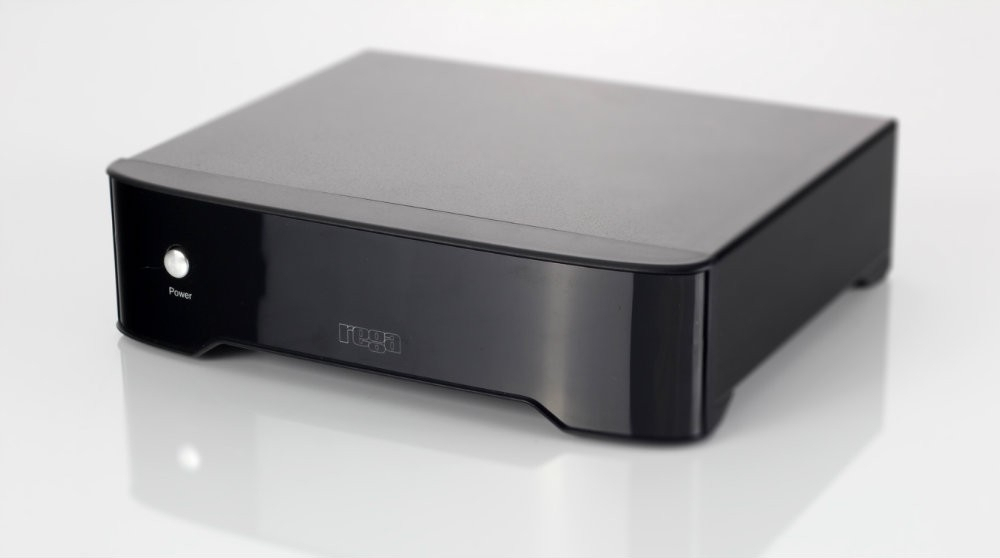

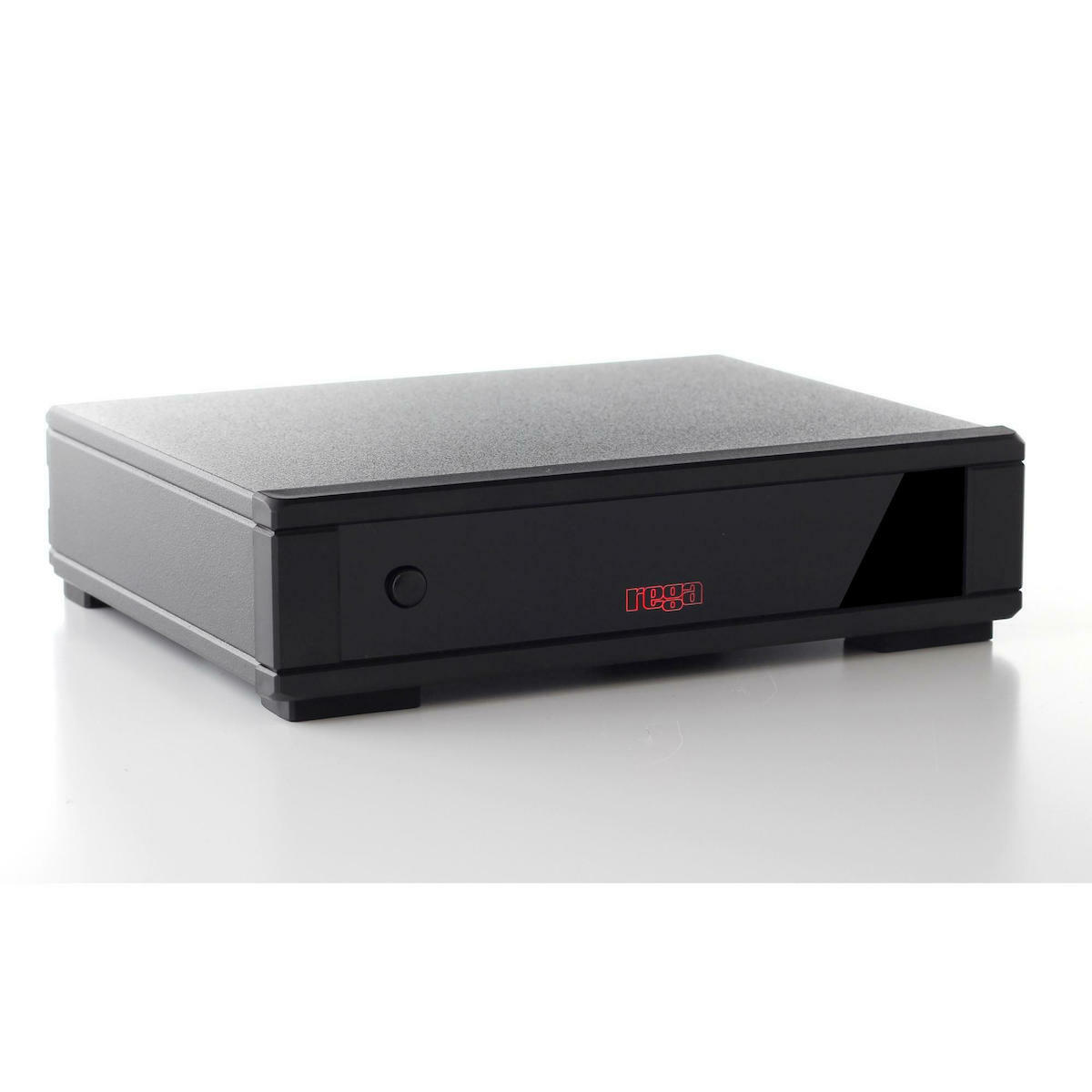

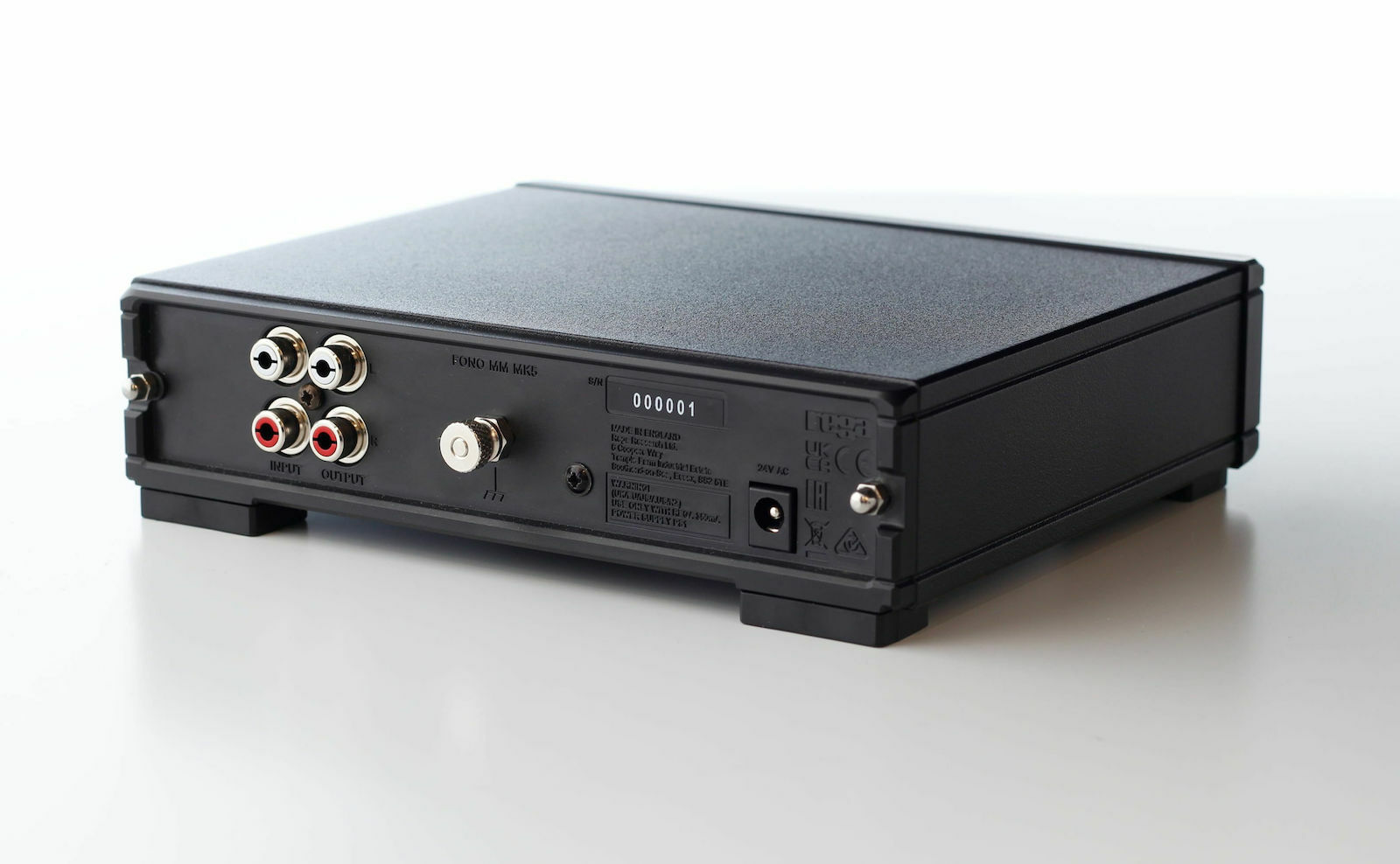

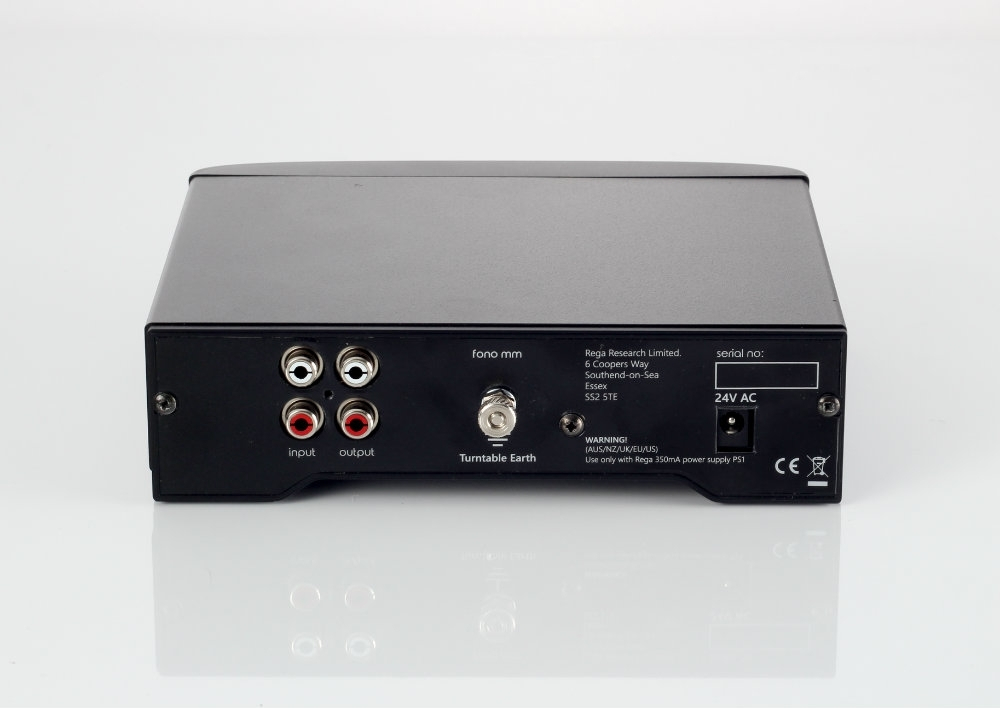

Rega Fono MM MK5 Phono Preamp

The Fono MM MK5 phono stage has been designed to be effective, easy to use and above all, to reproduce music. The Fono MM MK5 uses a fully discrete, cascaded,

complementary amplifier input stage, a configuration designed to optimise the performance of your moving magnet cartridge. Now housed in a brand new redesigned

case to match the new Fono MC and Rega’s latest range of electronic components offering a modern look guaranteed to integrate in to any hi-fi system.

TECHNICAL SPECIFICATIONS

Input Sensitivity  1.7 mV for 200 mV Output

Input Loading  47 kΩ in parallel with 100 pF

Maximum Input Level  60 mV at 1 kHz

Gain  41.4 dB at 1 kHz

Output Impedance  200 Ω

Recommended Minimum Output Load Resistance  5 kΩ

Frequency response (50KΩ output load)  15 Hz (-3 dB) to 100 kHz (-0.2 dB)

RIAA Accuracy (50 kΩ Output Load)  Better than ±0.2 dB 100 Hz to 100 kHz

Power Requirements  24 V AC at 80 mA maximum
