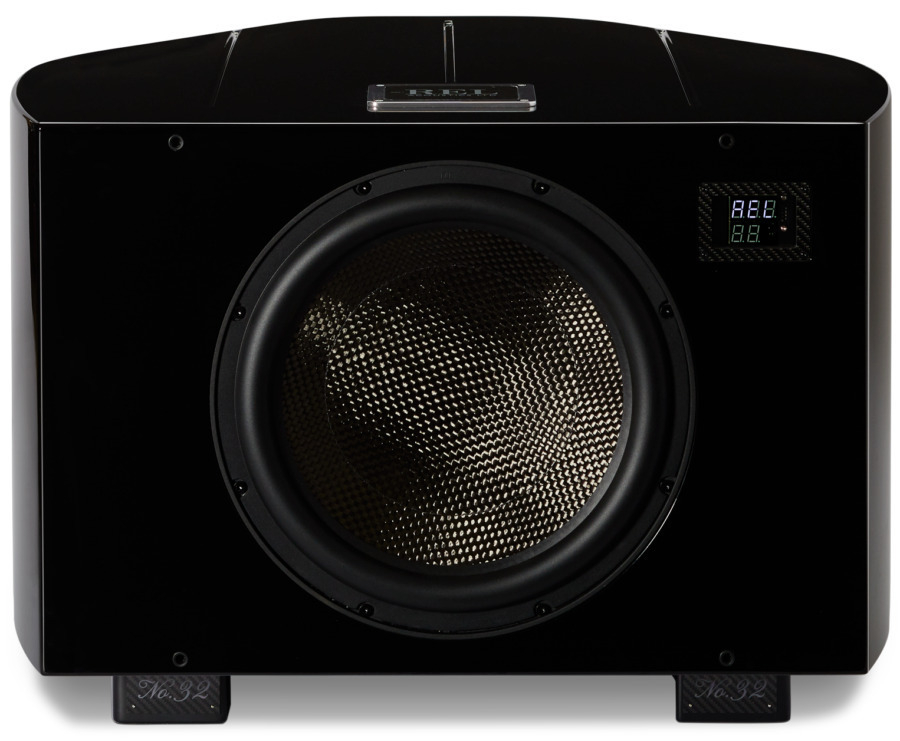

Rel Acoustics No32 Reference Series Piano Black

TYPE: Closed box, front-firing driver

ACTIVE DRIVER SIZE & MATERIAL: 15 in., 380mm long-throw, carbon fibre cone with inverted carbon fibre dust cap

PASSIVE RADIATOR SIZE & MATERIAL: N/A

LOW FREQUENCY EXTENSION: 15Hz at -6 dB

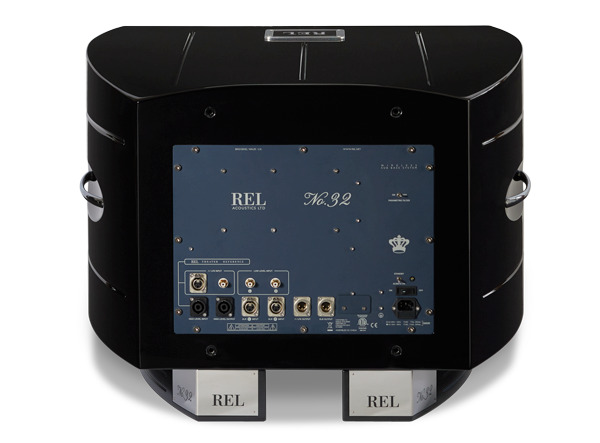

INPUT CONNECTORS: High Level Neutrik Speakon, Low Level stereo RCA and XLR, LFE RCA, LFE XLR

OUTPUT CONNECTORS: High Level Neutrik Speakon, LFE XLR, Line XLR

POWER OUTPUT: 1,000 watts (RMS)

AMPLIFIER TYPE: Pure Class D

WIRELESS CAPABILITY: Yes – Rel Airship II [required] sold separately

DUAL PARAMETRIC FILTER: Yes



Protection System

FULLY ELECTRONIC SET SAFE: Yes

D.C. FAULT: Yes

OUTPUT SHORT: Yes

MAINS INPUT VOLTAGE: 220-240 volts, 110-120 volts for certain markets

FUSES: 7 Amp semi delay 230 volts operation, 15 Amp semi delay 115 volts operation



Dimensions

W X H X D: 29 1/4 x 21 x 32 1/8 in. (743 x 540 x 816 mm)

NET WEIGHT: 187 lbs. (85 kg), shipping weight – 225 lbs. (102kg)

FINISH: Piano Black Lacquer, 12 coats



Supplied Accessories

MAINS LEAD: Yes

NEUTRIK SPEAKON: Yes (10 Meters Nominal)

INTERCONNECT

USERS MANUAL: Yes
