Shanling ONIX Alpha XI1

ONIX Alpha XI1



Smallest and Most Affordable ONIX DAC

High-Power Portable USB DAC/AMP

Excellent Sound in Smallest Package



Pair of top-of-the-line Cirrus Logic CS43198 DACs provide exquisitely clean sound, while still providing our unique sound tuning. Running in a fully balanced setup, feeding two dedicated SGM8262 headphone amplifiers, offering up to 500 mW @ 32 Ohm output power. Making ONIX XI1 into a truly powerful tiny beast, driving anything from sensitive IEMs to demanding full-size Planars.

Advanced Control

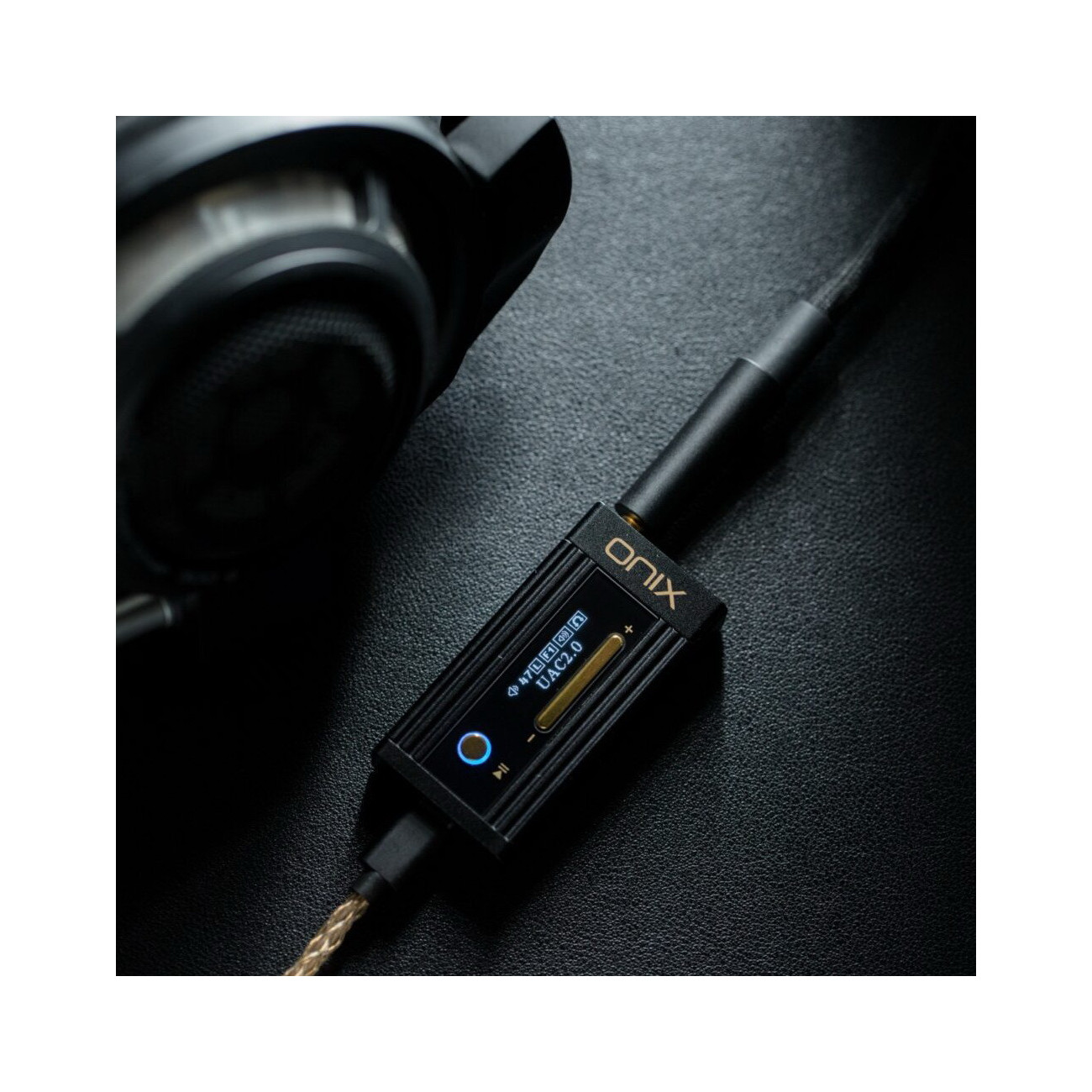

ONIX XI1 offers a 0.87-inch monochromatic screen for quick access to a range of settings directly on the device, without any need to dive into a companion app and compatible with an unlimited range of systems. A trio of hardware buttons then provide quick and tactile control over volume and playback.



Traditional Look Minimized



Even our smallest DAC follows traditional standards of ONIX design and build quality. Deep black combined with golden yellow elements, in sturdy body combining elaborately machined aluminium, glass and smooth fake leather back.



Specification



Dimensions: 64 x 32 x14 mm



Weight: 38g



Hi-Res Support: 32bit / 768kHz & DSD256



Gain: Low & High Gain



Display: 0.87-Inch Monochromatic



Controls: 3 Hardware Multifunctional Buttons



Input: Standard USB-C Connector



Compatibility: Android & iOS Devices, Windows & Mac Computers

* For devices using Lightning Connector, please purchase Shanling L3 cable





3.5mm Single-Ended Output



Output Power: 2.4V@32Ω (180mW@32Ω)



Output Impedance: 0.4Ω







4.4mm Balanced Output



Output Power: 4.0V@32Ω (500mW@32Ω)



THD+N: 0.0005% @32Ω (A-Weight)



Dynamic Range: 129dB @32Ω (A-Weight)



Channel Separation: 99dB



Signal-to-Noise Ratio : 129dB @32Ω (A-Weight)



Output Impedance: 0.8Ω
