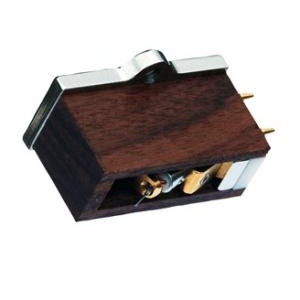

Sumiko PALO SANTOS PRESENTATION

Cartridge Type: Moving Coil Suspension: Synthetic Rubber Frequency Response: 10Hz-40Khz +/- 1.5dB Output Voltage/Channel: 0.5mV (3.54 cm/sec.,1kHz) Channel Separation: >30dB @ 1kHz Channel Balance: <0.5dB @ 1kHz Optimum Tracking Force: 2.0 grams Tracking Force Range: 1.8 - 2.2 grams Dynamic Compliance: 8 x 10-6 cm/dyne Internal Impedance: 12 ohms Load Impedance: 100-1k ohms Capacitance Range: 100 - 300 pf Cantilever: Long grain Boron Stylus: Line Contact, ultra low-mass, solid diamond 75µm x 5µm Output Terminals: Unique gold plated tapered brass pins Cartridge Weight: 8.3 grams Mounting System: Standard 0.5” hole spacing, threaded M2.5
