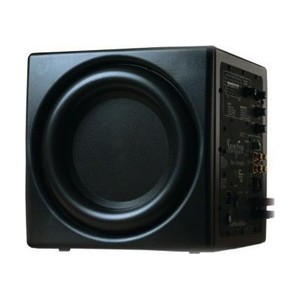

SUNFIRE XTEQ-10

Driver Complement 10” Active SideFiring Driver10” Side FiringPassive Radiator Amplifier Power 2,700 WattTracking Down Converter Frequency Response 18Hz – 100Hz THD Less than3% typical operation High Pass Crossover 85Hz Low Pass Crossover 30Hz Phase 0 to 180 degree (variable) Woofer Magnet 7.5” x 3.5” Deep194 oz. Voice Coil 3” Cone Material Non-pressed paper with a highdensity foam edge INPUTS Line Level (L&R) Line Level (RCA)Nominal Impedance 15k Ω Input (Mono) Balanced (XLR)Nominal Impedance 14k Ω Slave Line Level - Mono (RCA)Nominal Impedance 8k Ω Microphone 3.5 mm(condense mic incl.) 3.5mm(Microphone included) Trigger On 12 VDC OUTPUTS Thru (L&R) Line Level (RCA)85Hz High Pass Filter / Bypass- selectable Slave Line Level – Mono (RCA)Nominal Impedance120k Ω GENERAL Finish High Gloss Black Included Accessories Microphone andPower Cord Dimensions (H/W/D) 11.5” H x 12.75” W x 11” D Weight Net 54.5 Lbs (24.8kg) Power 100-120 / 220-240 V~,50/60Hz, 900W
