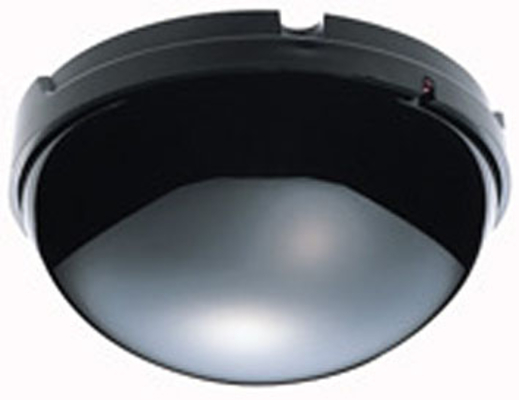

TOA ΑΚΤΙΝΟΒΟΛΙΤΗΣ ΥΠΕΡΥΘΡΩΝ TS-800

Ακτινοβολητής υπερύθρων για χρήση με TS-800. Συνοδεύεται με επίτοιχη βάση στήριξης και βάση στήριξης σε μικροφωνικο γερανό. Κάλυψη χώρου σε ακτίνα 7 μέτρων με οπτική επαφή. Τροφοδοσία μέσω κεντρικής μονάδας. Μέγιστος αριθμός σε κάθε σύστημα 16 τεμ. The TS-905 is an Infrared Transmitter/Receiver of the Infrared Conference system. Since the system is cordless, it can be easily installed and removed. Communications between the TS-905 and conference units are performed by means of infrared signals and the TS-905 permits transmit and receive with the Central unit. It can be mounted not only to the ceiling and wall but on the microphone stand. Spec Power Source 24 V DC (supplied from the optional TS-900 or TS-800) Wavelength Max. 150 mA Infrared Emitter/Detector 870 nm (AM: Brightness modulation) Modulation Method Frequency modulation Carrier Frequency Transmission: Audio channel 1: 7.35 MHz Audio channel 2: 8.10 MHz Audio channel 3: 8.55 MHz Audio channel 4: 9.15 MHz Control channel: 6.45 MHz Reception: Base language channel: 1.95 MHz Translation language channel: 2.25 MHz Communication Area Approx. 6 - 7 m in radius from the point underneath the unit (Ceiling height: 2.5 - 4.5 m) Finish Dome: PC resin, visible light cut filter Base: ABS resin, black Dimensions 120 x 71.3 (H) mm
