The PS502W is ViewSonic’s high brightness WXGA short throw business/education projector. Boasting 4,000 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. With 0.52 short throw ratio, the projector can provide 100” large screen size from only 1.1 m away without being obstructed by shadows, allowing for a large screen even in small spaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers.
High Brightness for Business & Education Environments
Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.
4,000 ANSI Lumens
Big Screen for Small Spaces
The PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.
0.52 Short Throw
Ultra-Large Screen with Lower Cost-per-inch
The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.
Up to 300"
Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.
Dual HDMI Ports
Vibrant Colors for Captivating Presentations
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.
USB Type A Power Supply
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.
Audio Right Out of the Box
The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.
Built-in 16W Speakers

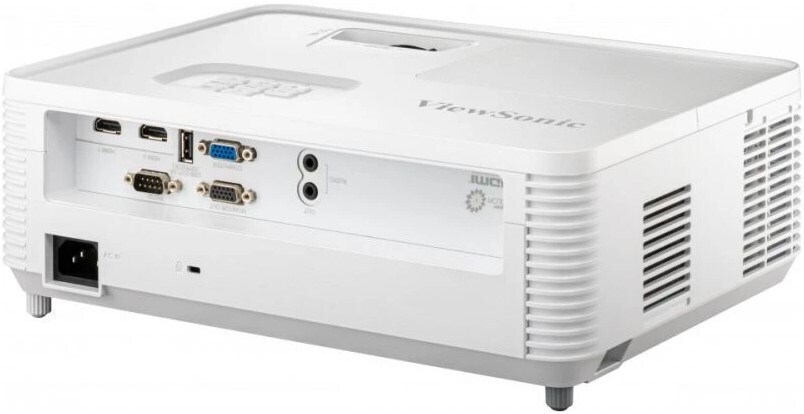

Dimensions & I/O Ports
- Adjustment Foot
- Lens
- Front IR
- HDMI 1
- HDMI 2
- USB-A(5V/1.5A, Service)
- Computer In
- Audio In
- AC In
- R232
- Kensingtion Lock
- Monitor Out
- Audio Out
- Focus Ring
- LED Indicator
- Keypad
SPECIFICATIONS
- Specification
Projection System: 0.65" WXGA
Native Resolution: 1280x800
Brightness: 4000 (ANSI Lumens)
Contrast Ratio with SuperEco Mode: 15000:1
Display Color: 1.07 Billion Colors
Light Source Type: 240W UHP Lamp
Light Source Life (hours) with Normal Mode: 4000
Light Source Life (hours) with SuperEco Mode: 12000
Lens: F=2.8, f=7.51mm
Projection Offset: 112.4%+/-4%
Throw Ratio: 0.52
Optical Zoom: Fixed
Digital Zoom: 0.8x-2.0x
Image Size: 60"-300"
Throw Distance: 0.67m-3.36m
(87"@0.97m)
Keystone: +19°/-19° (V)
Audible Noise (Normal): 34dB
Audible Noise (Eco): 25dB
Input Lag: 33.2ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz
- Input
Computer in (share with component): 1
HDMI: 2
(HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1
- Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 16W
USB Type A (Power): 1 (5V/1.5A)
- Control
RS232 (DB 9-pin male): 1
USB Type A (Services): 1
(share with USB A Output)
- Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 295W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 2.87kg
Gross Weight: 4.08Kg
Dimensions (WxDxH) with Adjustment Foot: 309x234x115mm
Packing Dimensions: 400x337x168mm
OSD Language: English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian, Total 22 languages
User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages
- Standard Accessory
Power Cord: 1
VGA Cable: 1

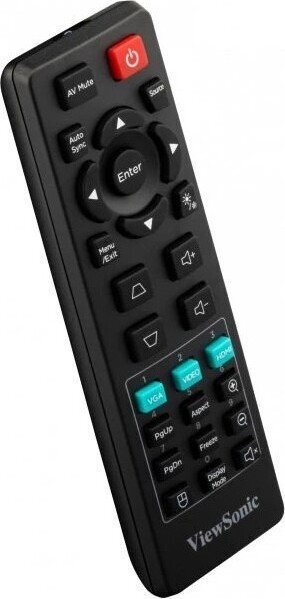

Remote Control: 1
QSG: Yes
Lens Cover: Yes
Air Filter: Yes (CN Only)
Warranty: *Warranty offered may differ from market to market
- Optional Accessory
Lamp/Light Source: RLC-128
Air Filter: RSPL
Wall/Ceiling Mount: PJ-WMK-305
PJ-WMK-007
Carry Bag: PJ-CASE-008
