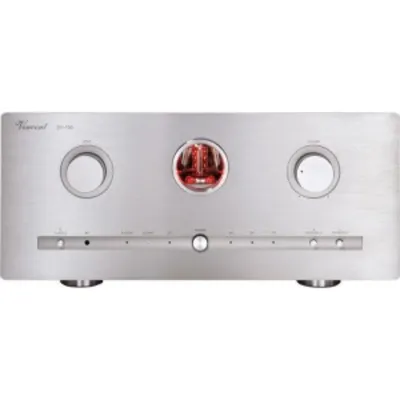

Internal structure - crucial for an excellent sound. In order to minimize crossfeeds and achieving a better distortion factor we decided upon a consistent symmetric design. In pre-amp 3 tubes (1x12AX7, 2x12AU7) per side work to the SRPP concept (Shunt Regulated Push-Pull) which process the sound signals providing a more precise bass and better performance in mid and high level sound. Power supply is as usual by a 500 Watts toroidal transformer. The capacitors by Panasonic are supplied with power at any time by this one. Final amplifying is optionally provided in Class A or AB operation by powerful Toshiba transistors. They work without any negative feedbacks in order to preserve the characteristic features of tube sound. The SV-700 design keeps to the typical tubeLine design as well. An elegant full aluminum chassis with enormous cooling fins gives the impression of easily managing any sound amplifying coming from this unit. The exclusive design is also further perfected by a remote control made of aluminum included in delivery. The SV-700 is supplied with many inputs for diverse sound sources. There are 4 analog inputs ( 3 RCA and 1 XLR) as well as 2 digital inputs (optical and coaxial). For connection of recording devices and external amplifiers one Rec output and Pre output are provided. The best of both worlds is provided in sound. Warm and smooth tube sound combined with transistor dynamics and power. The SV-700 delivers powerful performance on the big stage as well as delicate sound experiences. 2 maxims absolutely ruled in our design of this allround talent: Sound and enthusiasm. Look and see for yourself and have a listen! Technical Specifications Frequency response: 20 Hz – 20 kHz +/-0.5 dB Nominal output power RMS / 8 Ohm: 2 x 100 Watt, RMS / 4 Ohm: 2 x 160 Watt Nominal output power RMS Class A / 8 Ohm: 2 x 50 Watt Harmonic distortion: 90 dB Input impedance: 47 kOhm Power consumption: 350 Watt (Class A mode), 150 Watt (Class AB mode) Inputs: 3 x stereo RCA, 1 x stereo XLR, 1 x optical, 1 x coaxial Outputs: 1 x Stereo Rec Out, 1 x Stereo Pre Out, 2 x 2 Speaker terminals, 2 x 3.5 mm Jack socket (Power Control) Tubes: 1 x 6Z4, 2 x 12AX7, 4 x 12AU7 Colour: Black/Silver, Weight: 24.2 kg Dimensions (WxHxD): 430 x 192 x 430 mm Κανάλια: 2 Ισχύς Εξόδου: 2x 50 Watt Class A 8 Ohm / 2 x 100 Watt RMS 8 Ohm / 2x 160 Watt RMS 4 Ohm Αναλογικές Είσοδοι: 3 Είσοδος Phono: Όχι Coaxial Είσοδοι: Ναι Οπτικές Είσοδοι: Ναι USB Όχι Network Όχι XLR Ναι Θύρα Δικτύου: Όχι bluetooth Όχι Ραδιόφωνο ΑΜ/FM: Όχι Διαστάσεις (Π x Y x B): 430 x 192 x 430 mm Βάρος: 24Kg
