Γενικά |
|
|
Διαστάσεις |
W 620 mm ? D 90 mm ? H 70 mm |
|
Βάρος |
1.7 kg |
|
Απαιτήσεις ισχύος |
AC 100 - 240 V (50/60 Hz) |
|
Μέγιστη Κατανάλωση Ενέργειας |
42.0 W |
|
Σε λειτουργία |
Θερμοκρασία |
0? – 40? |
|
Υγρασία |
20% – 85% (No condensation) |
|
Θερμοκρασία |
-20? – 60? |
|
Υγρασία |
20% – 85% (No condensation) |
Indicator |
Status Indicator |
|
Aξεσουάρ |
Read this first, Safety Guide, Quick Guide, USB 2.0 cable (Type C-A, 5 m / 16.4 ft), HDMI cable (2 m / 6.6 ft), Remote control (RC-RBT1), Lens cap, Terminal cover, Coin battery (CR2032) ? 2, AC adaptor with power cord (CW2002100), Table stand, Wall mounting bracket, Terminal cover screw (2.5 mm ? 8 mm) ? 2, Hexagonal screw (M3 ? 8 mm) for table stand ? 2, Screw (M3 ? 8 mm) for wall mounting bracket ? 1, Hexagonal wrench |
|
Options |
Mounting Accessory BRK-TV1, USB 3.2 Gen 1 cable (A-C) 10 m CBL-L10AC, USB 3.2 Gen 1 cable (A-C) 25 m CBL-L25AC |
|
Supported OS |
Windows 11, Windows 10, macOS 12, macOS 11, macOS 10.15, Chrome OS |
|
Επιλογές |
USB (Type-C): USB 2.0/3.2 Gen 1, UAC 2.0, UVC 1.1, DisplayLink, HDMI: Version 1.4, Resolution: 720 x 480, 1,280 x 720, 1,366 x 768, 1,920 x 1,080, Frame rate: 30 fps, HDCP: Version 1.4, HDMI-CEC: Power control / Input selection, Bluetooth, Wi-Fi network |
|
Εγκατάσταση |

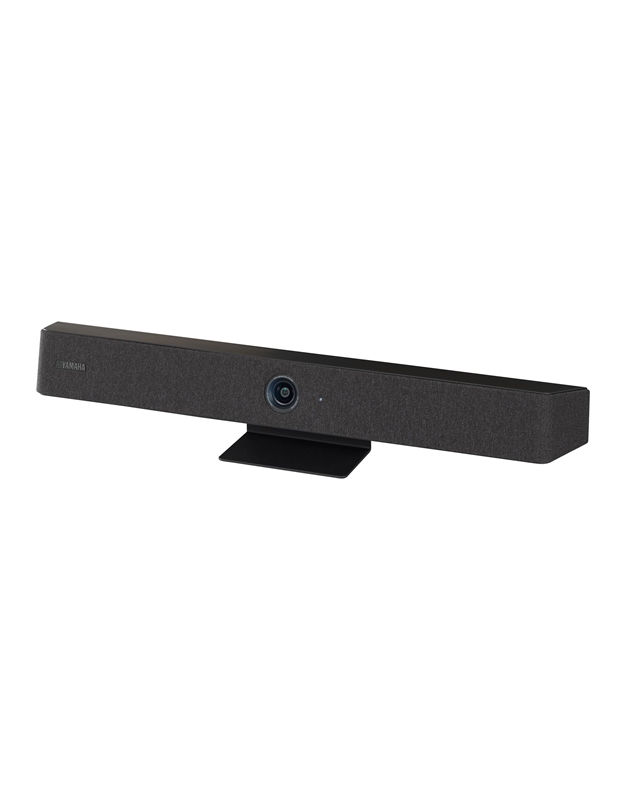

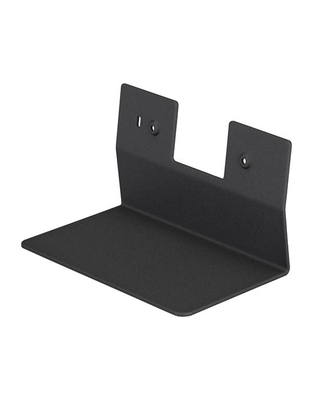

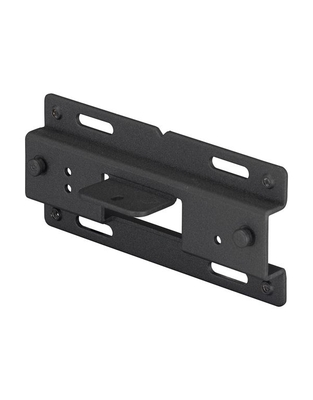

Tabletop installation: Table stand (accessory), Wall mount installation: Wall mounting bracket (accessory), Display mount installation: BRK-TV1 (option) |
|
Audio |
|
|
Hχεία |
Full-range speaker x 1 |
|
Maximum volume |
90 dBSPL (1 m) |
|
Μικρόφωνα |
Hexa-microphone (6x MEMS) |
|
Κάλυψη μικροφώνου |
Frontward 110 degrees audio pickup, Max distance: 6.0 m (19.6 ft, Face focus beamforming off) / 3.0 m (9.8 ft, Face focus beamforming on) |
|
Εύρος ζώνης συχνότητας |
Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, SoundCap Eye (Face focus beamforming, Self-silence, Self volume balancer) |
|
Επεξεργασία σήματος |
Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, SoundCap Eye (Face focus beamforming, Self-silence, Self volume balancer) |
|
Camera και Video |
|
|
Οπτικό πεδίο |
(4K) Diagonal:120 degrees, Horizontal: 110 degrees |
|
Απόσταση εστίασης |
0.5 m (1.6 ft) to ? |
|
Frame Rate |
6 fps, 7.5 fps, 10 fps, 15 fps, 30 fps |
|
Ανάλυση |
Smart framing (Group, Individual, Speaker tracking) or manual, pan-tilt-zoom (PTZ), configurable preset x 2, Maximum zoom ratio: 5.0x, People detection max distance: 4.5 m |
|
USB Output Format |
YUY2, MJPEG, NV12 |
|
Frame Control |
Smart framing (Group, Individual, Speaker tracking) or manual, pan-tilt-zoom (PTZ), configurable preset x 2, Maximum zoom ratio: 5.0x, People detection max distance: 4.5 m |
|
User Interface |
|
|
Remote Control
|
Power, Microphone mute x 2, Speaker volume, Camera ePTZ, Smart framing ON/OFF, Camera preset x 2, OSD menu control |
|
OSD Menu |
FunctionsMeeting area, Smart framing mode, Camera preset, Mic, Speaker, Bluetooth |
|
Υποστηριζόμενο λειτουργικό σύστημα |
Windows 11, Windows10 (64 bit), macOS 12, macOS 11, macOS 10.15 |
|
